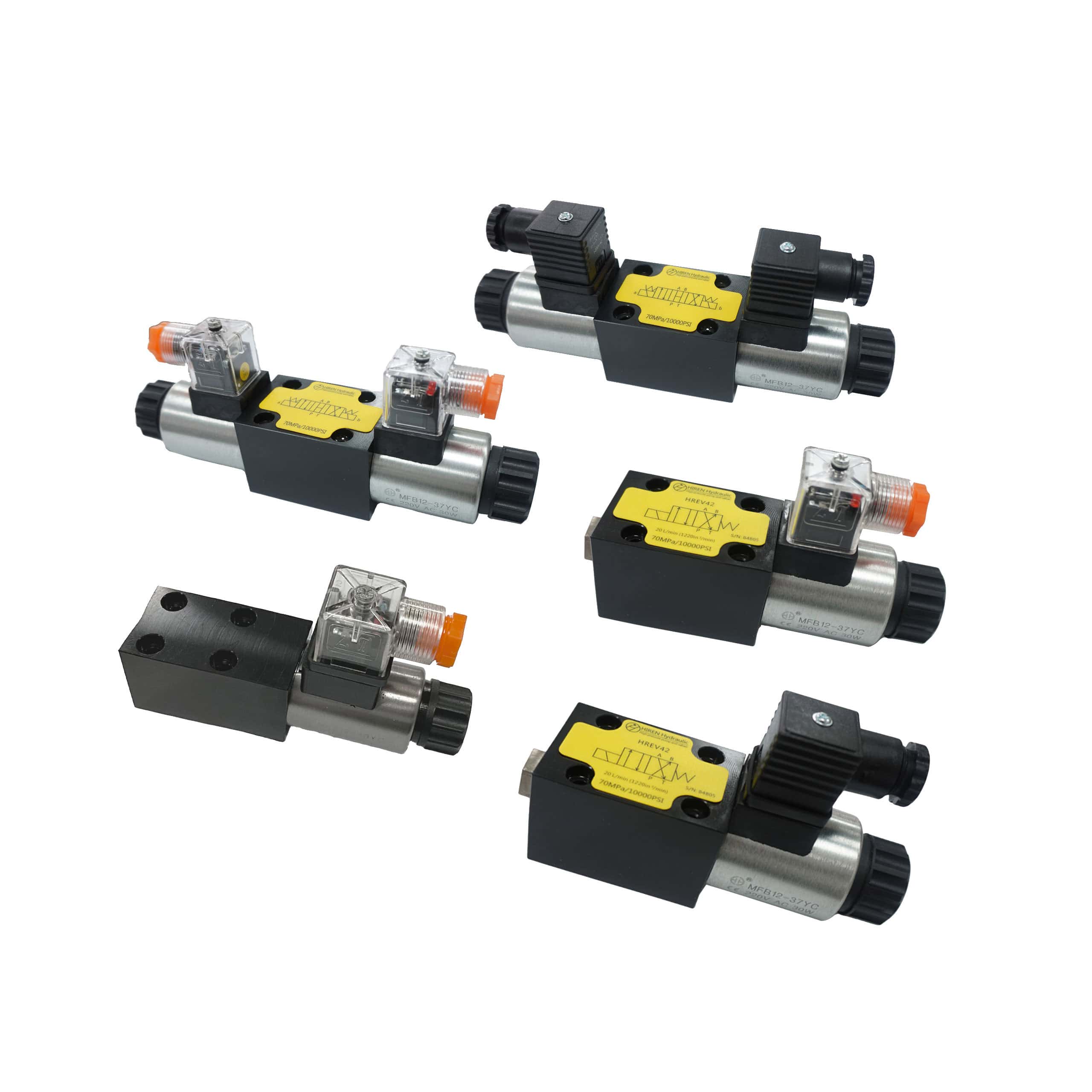

Solenoid Directional Control Valve

ULTPRE solenoid directional valves deliver robust performance and extended service life in demanding hydraulic systems.

PRICE ON REQUEST

Features

Description

High-Strength Construction: Manufactured from hardened 42CrMo alloy steel for exceptional strength and durability.
Superior Wear & Corrosion Resistance: Features QPQ surface treatment (carbonitriding) for outstanding resistance to wear, friction, and corrosion.
Versatile Coil Options: Operates reliably with either 110VAC or 220VAC control coils to suit your power supply.
100% ED Rating: Designed for continuous duty (100% ED), ensuring stable operation under complex and demanding conditions.
Precision & Efficiency: Precision-machined spool for smooth shifting and minimized internal leakage.
Enhanced Safety: Option to integrate pilot-operated check valves for secure load holding and increased system safety.
Flexible Configurations: Available in various spool configurations (functions) to meet diverse application needs.
System Integration: Easily integrated into multi-valve manifolds for customized hydraulic circuit solutions.

Series Comparison

Model	Rated Working Pressure	Voltage	Function	Max Flow Rate

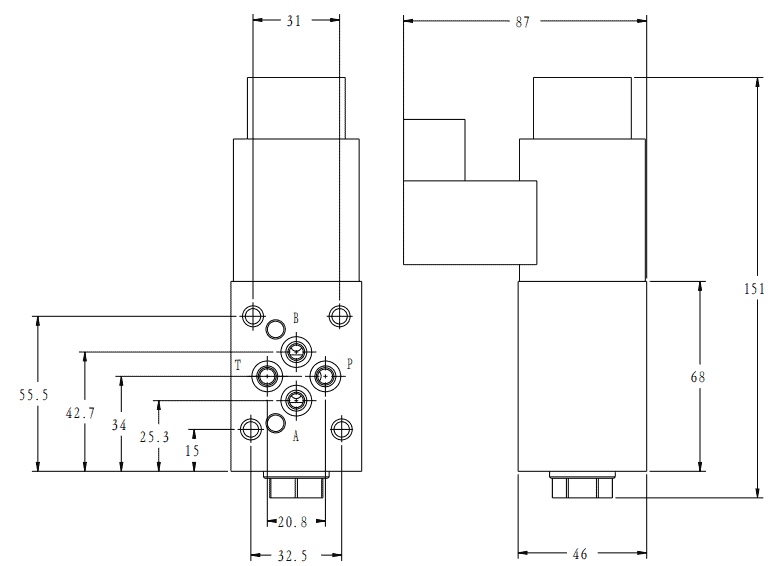

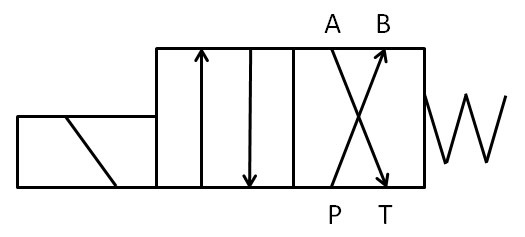

HEV42-AC220	70MPa	AC220/DC24	2-way,4 position	17L/Min
HEV42-DC24	70MPa	AC220/DC24	2-way,4 position	17L/Min

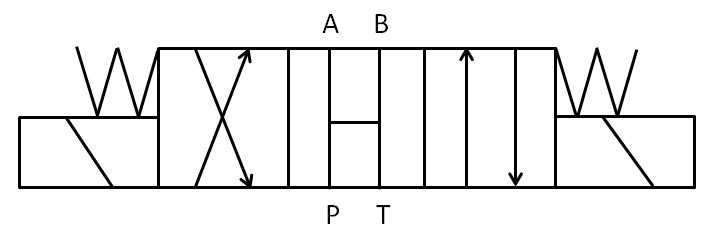

HEV43-H-AC220	70MPa	AC220/DC24	4-way, 3-position,middle position H	17L/Min
HEV43-H-DC24	70MPa	AC220/DC24	4-way, 3-position,middle position H	17L/Min

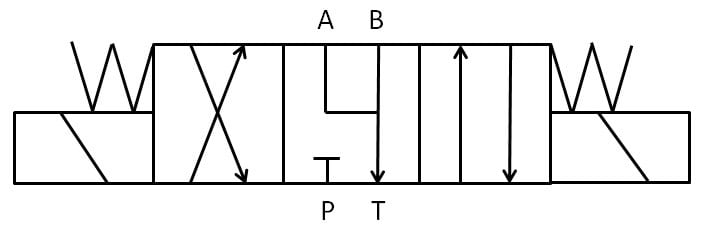

HEV43-Y-AC220	70MPa	AC220/DC24	4-way, 3-position,middle position Y	17L/Min
HEV43-Y-DC24	70MPa	AC220/DC24	4-way, 3-position,middle position Y	17L/Min

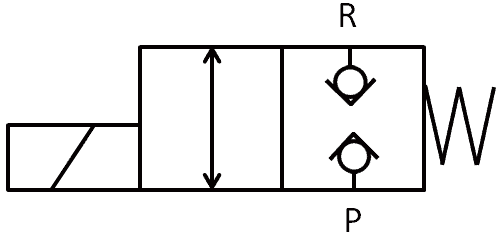

EVO32-AC220	70MPa	AC220/DC24	Relief Valve Constantly Open	17L/Min
EVO32-DC24	70MPa	AC220/DC24	Relief Valve Constantly Open	17L/Min

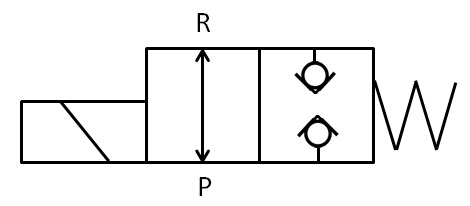

EVC32-AC220	70MPa	AC220/DC24	Relief Valve Constantly Close	17L/Min
EVC32-DC24	70MPa	AC220/DC24	Relief Valve Constantly Close	17L/Min

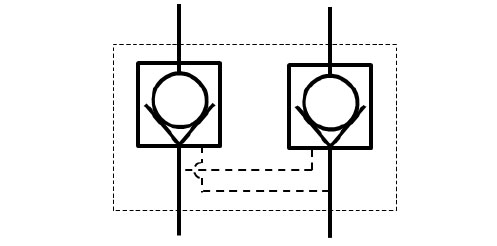

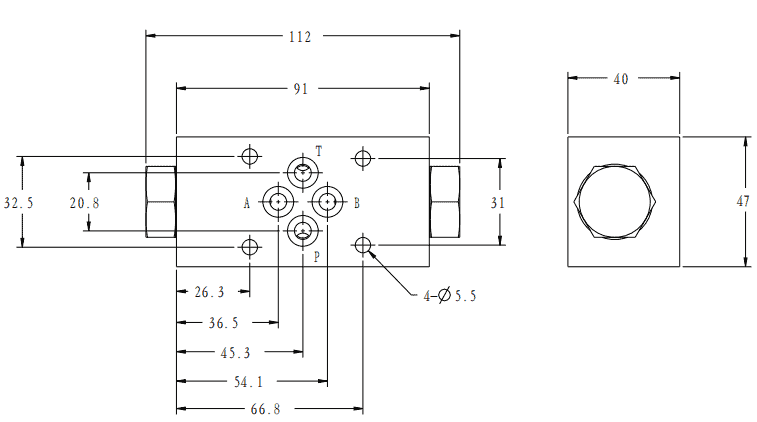

HPC700	70MPa	AC220/DC24	Double Direction Hydraulic Lock	17L/Min

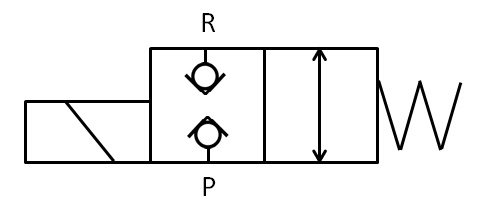

HEV22-DC24	70MPa	DC24	2-Way,2-Positions,Open/Shut-off Valve	17L/Min
