Overview

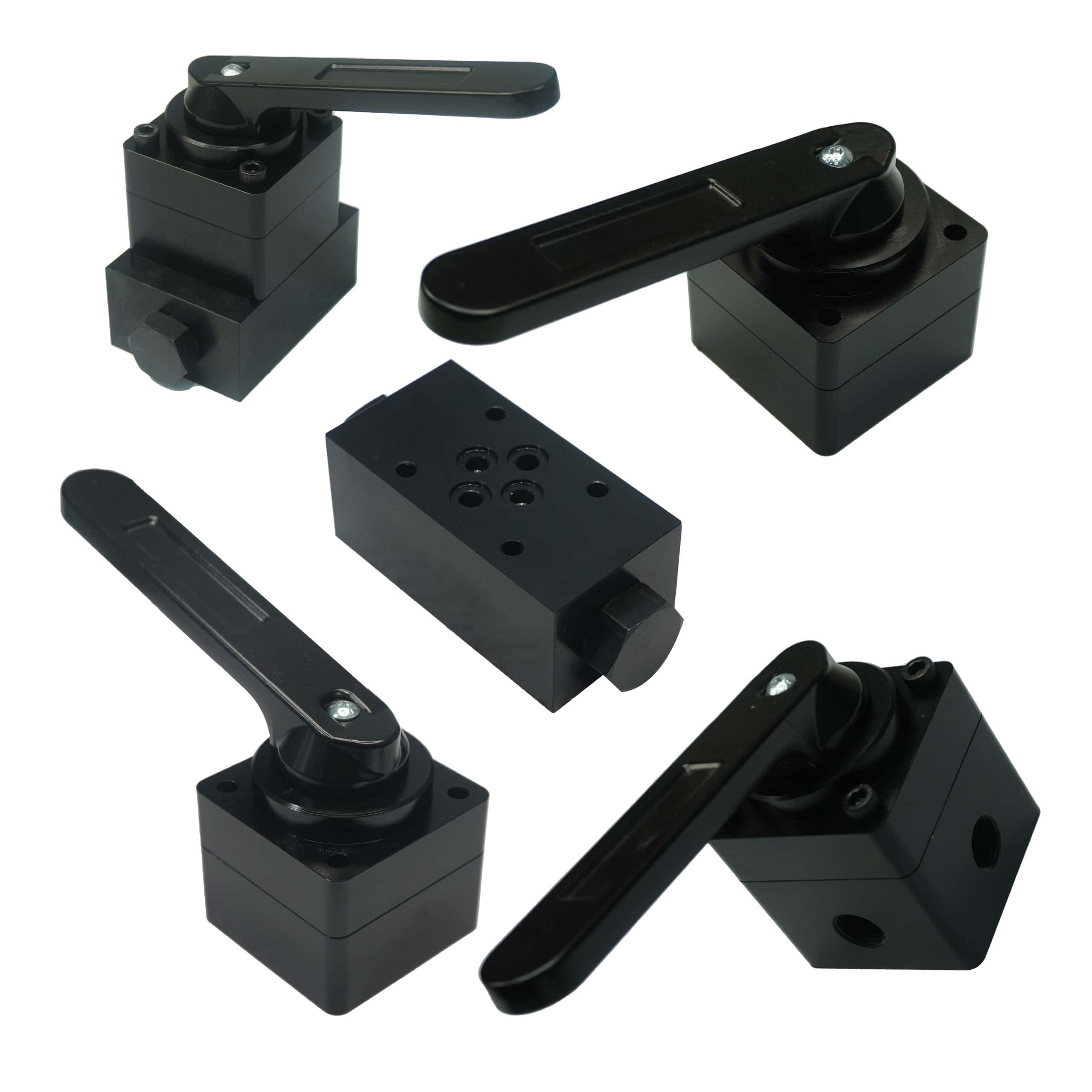

Manual Direction Control Valve

Engineered for industrial hydraulic systems demanding intuitive manual control, ULTPRE’s MV valves deliver leak-tight directional switching and effortless handling. Ideal for mobile machinery, test rigs, and multi-valve manifolds where reliability and ergonomics are critical.

PRICE ON REQUEST

Features

Description

Key Innovations & Advantages

✅ Zero-Leak Mirror Sealing

Ultra-smooth hardened sealing surfaces (<Ra 0.2µm) minimize leakage to <5 drops/min at 35MPa.
Precision-lapped spools maintain pressure holding for 72+ hours.

✅ Ergonomic Performance

Low-Friction Design: PTFE-guided spools reduce operating force by 60% vs. standard valves.
Adjustable Handle: 360° rotatable lever with dual mounting positions for confined spaces.
Positive Detent Mechanism: Spring-centered positioning delivers tactile “click” feedback.

✅ Lightweight Corrosion Defense

Aerospace-grade aluminum body with micro-arc oxidation coating (MAO).
Salt spray resistance: 1,200+ hours (ASTM B117).

✅ Modular Versatility

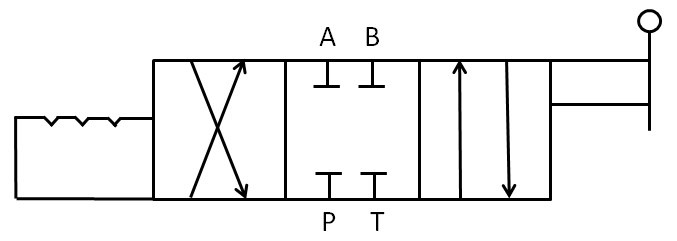

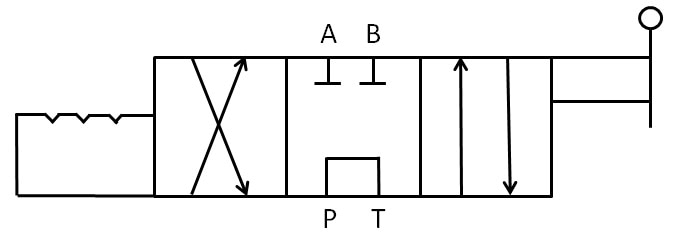

Multiple Functions: Open/closed center, float, regenerative circuits.
Stackable Manifold Ready: G1/4″ to G3/8″ SAE/ISO ports with O-ring face seals.
