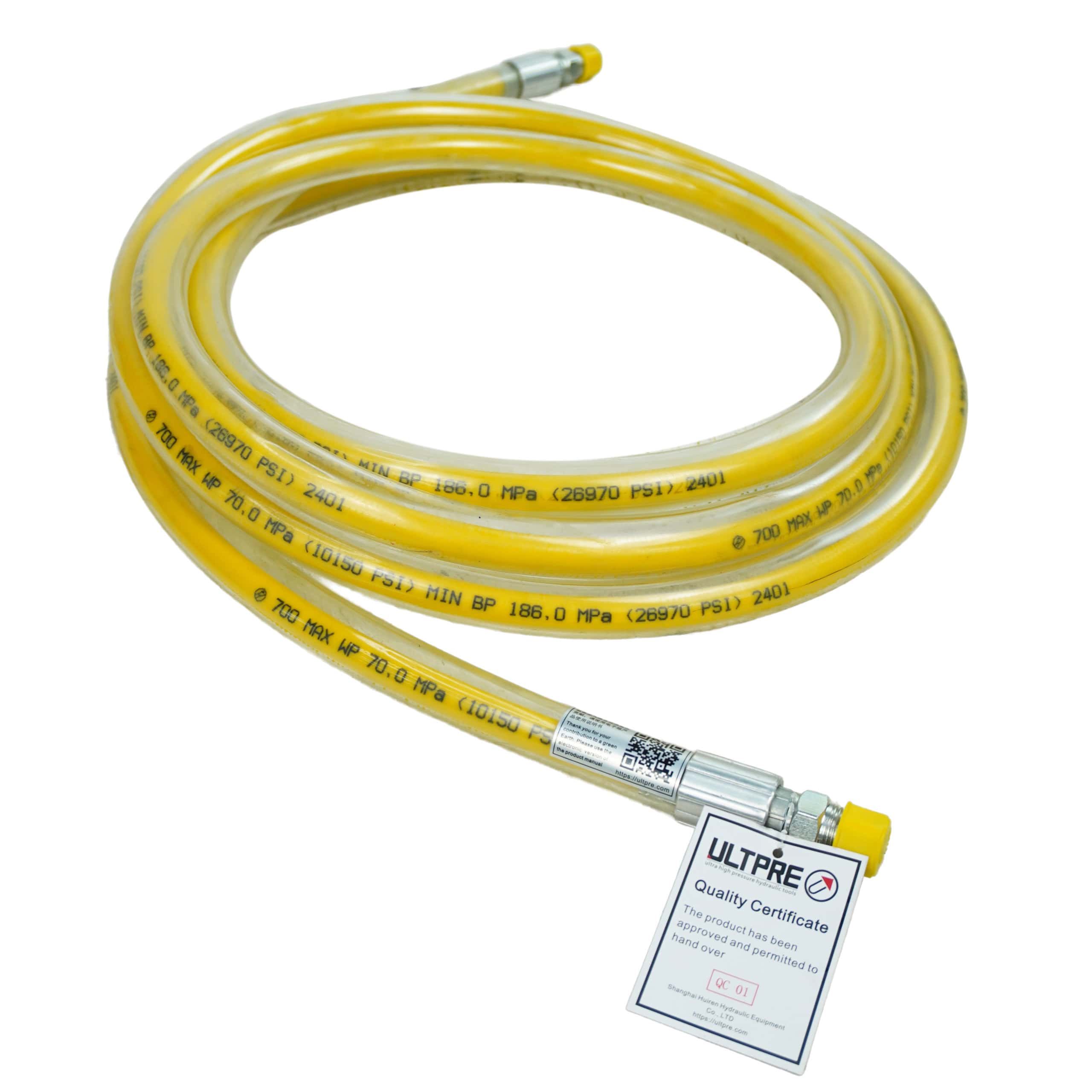

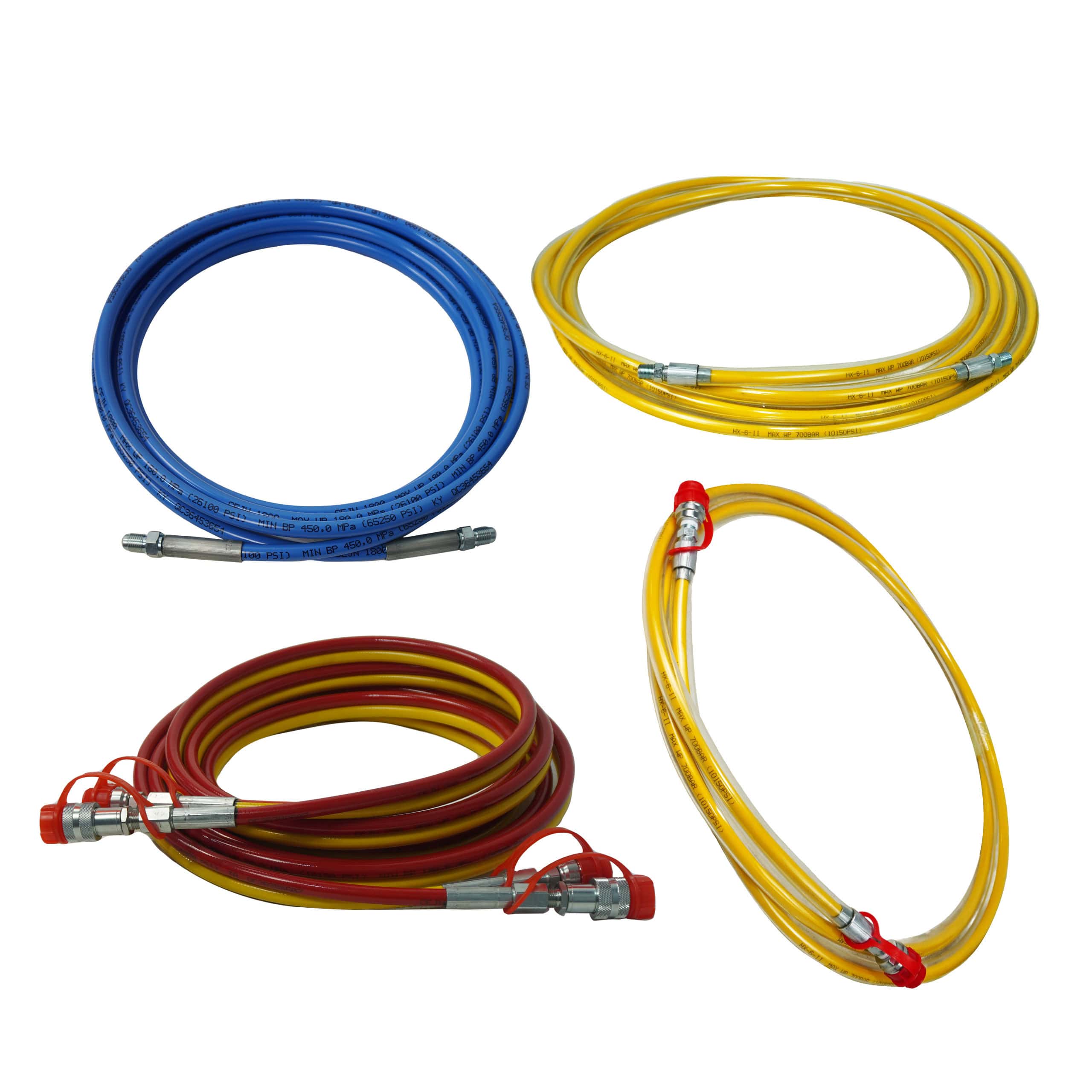

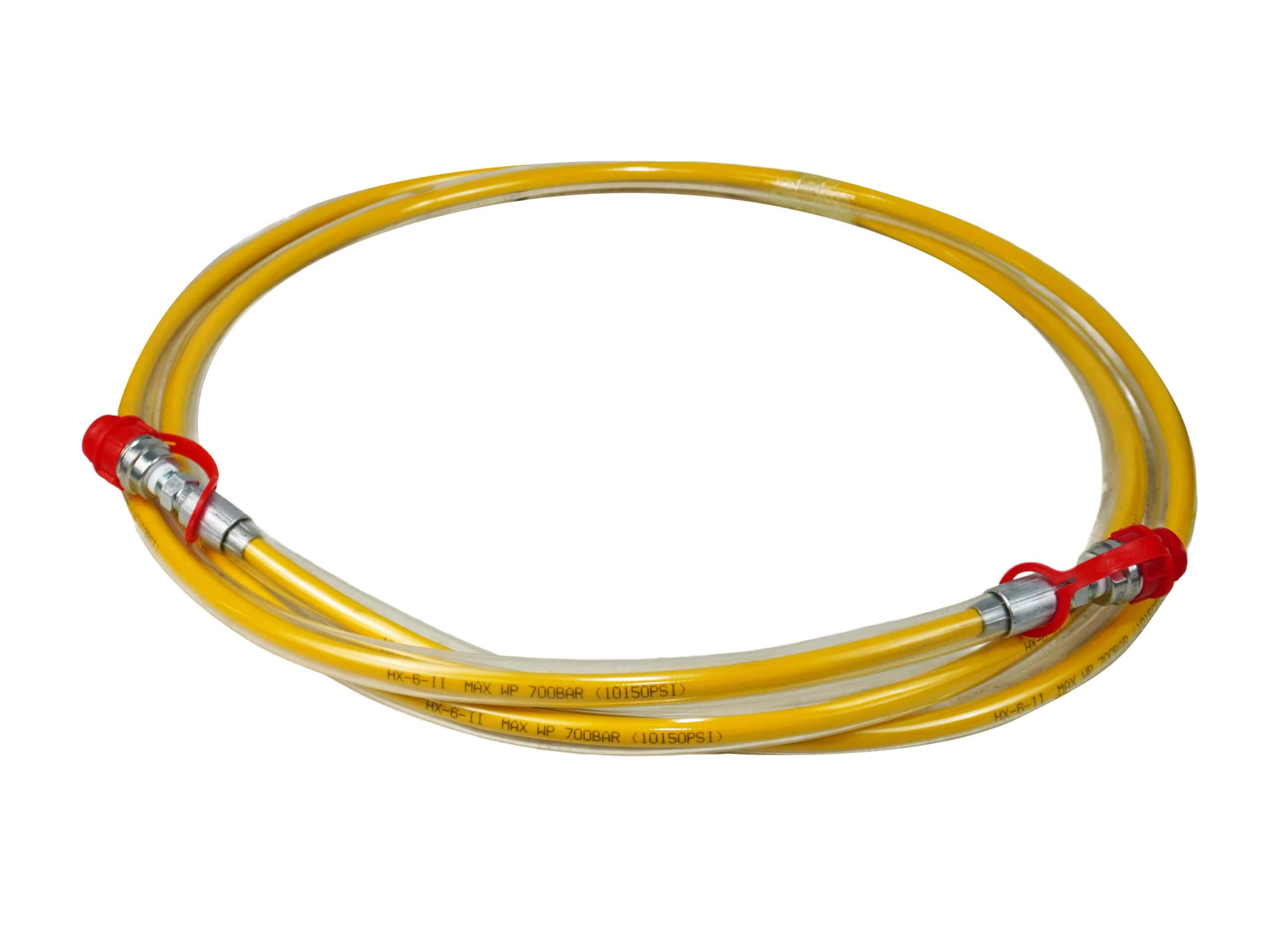

HSP700 Series,700MPa Hydraulic Hose

Engineered for extreme industrial applications, the ULTPRE HSP700 Series delivers uncompromising reliability at 70MPa working pressure. These hoses combine minimal expansion, superior durability, and smart protection systems to maximize efficiency and safety in critical hydraulic circuits.

PRICE ON REQUEST

Features

Description

Key Features:

Ultra-High Pressure Resilience: Rated for 70MPa continuous operation
Precision Fluid Transfer: Low volumetric expansion under load ensures system efficiency and responsive control.
Intelligent Protection:
- <10m Hoses: Rigid PC anti-burst sleeves resist abrasion and impact.
- ≥10m Hoses: Corrugated rubber grip handles prevent kinking and surface damage.

Series Comparison

Specification

Model	Rated Working Pressure	Length	ID	OD	Safety Factor	Inner Layer	Reinforcement Layer	External Layer	Connections
HSP700-1	70MPa	1m	6mm	13.2mm	2	nylon	High-strength tensile steel wire	Polyurethane	Both End NPT3/8 Thread
HSP700-1-M	70MPa	1m	6mm	13.2mm	2	nylon	High-strength tensile steel wire	Polyurethane	One End NPT3/8 Male Coupler,Another End NPT3/8 Thread
HSP700-1-MM	70MPa	1m	6mm	13.2mm	2	nylon	High-strength tensile steel wire	Polyurethane	Both End NPT3/8 Male Coupler
HSP700-3	70MPa	3m	6mm	13.2mm	2	nylon	High-strength tensile steel wire	Polyurethane	Both End NPT3/8 Thread
HSP700-3-M	70MPa	3m	6mm	13.2mm	2	nylon	High-strength tensile steel wire	Polyurethane	One End NPT3/8 Male Coupler,Another End NPT3/8 Thread
HSP700-3-MM	70MPa	3m	6mm	13.2mm	2	nylon	High-strength tensile steel wire	Polyurethane	Both End NPT3/8 Male Coupler
HSP700-6	70MPa	6m	6mm	13.2mm	2	nylon	High-strength tensile steel wire	Polyurethane	Both End NPT3/8 Thread
HSP700-6-M	70MPa	6m	6mm	13.2mm	2	nylon	High-strength tensile steel wire	Polyurethane	One End NPT3/8 Male Coupler,Another End NPT3/8 Thread
HSP700-6-MM	70MPa	6m	6mm	13.2mm	2	nylon	High-strength tensile steel wire	Polyurethane	Both End NPT3/8 Male Coupler
HSP700-10	70MPa	10m	6mm	13.2mm	2	nylon	High-strength tensile steel wire	Polyurethane	Both End NPT3/8 Thread
HSP700-10-M	70MPa	10m	6mm	13.2mm	2	nylon	High-strength tensile steel wire	Polyurethane	One End NPT3/8 Male Coupler,Another End NPT3/8 Thread
HSP700-10-MM	70MPa	10m	6mm	13.2mm	2	nylon	High-strength tensile steel wire	Polyurethane	Both End NPT3/8 Male Coupler
HSP700-20	70MPa	20m	6mm	13.2mm	2	nylon	High-strength tensile steel wire	Polyurethane	Both End NPT3/8 Thread
HSP700-20-M	70MPa	20m	6mm	13.2mm	2	nylon	High-strength tensile steel wire	Polyurethane	One End NPT3/8 Male Coupler,Another End NPT3/8 Thread
HSP700-20-MM	70MPa	20m	6mm	13.2mm	2	nylon	High-strength tensile steel wire	Polyurethane	Both End NPT3/8 Male Coupler
HSP700-30	70MPa	30m	6mm	13.2mm	2	nylon	High-strength tensile steel wire	Polyurethane	Both End NPT3/8 Thread
HSP700-30-M	70MPa	30m	6mm	13.2mm	2	nylon	High-strength tensile steel wire	Polyurethane	One End NPT3/8 Male Coupler,Another End NPT3/8 Thread
HSP700-30-MM	70MPa	30m	6mm	13.2mm	2	nylon	High-strength tensile steel wire	Polyurethane	Both End NPT3/8 Male Coupler
