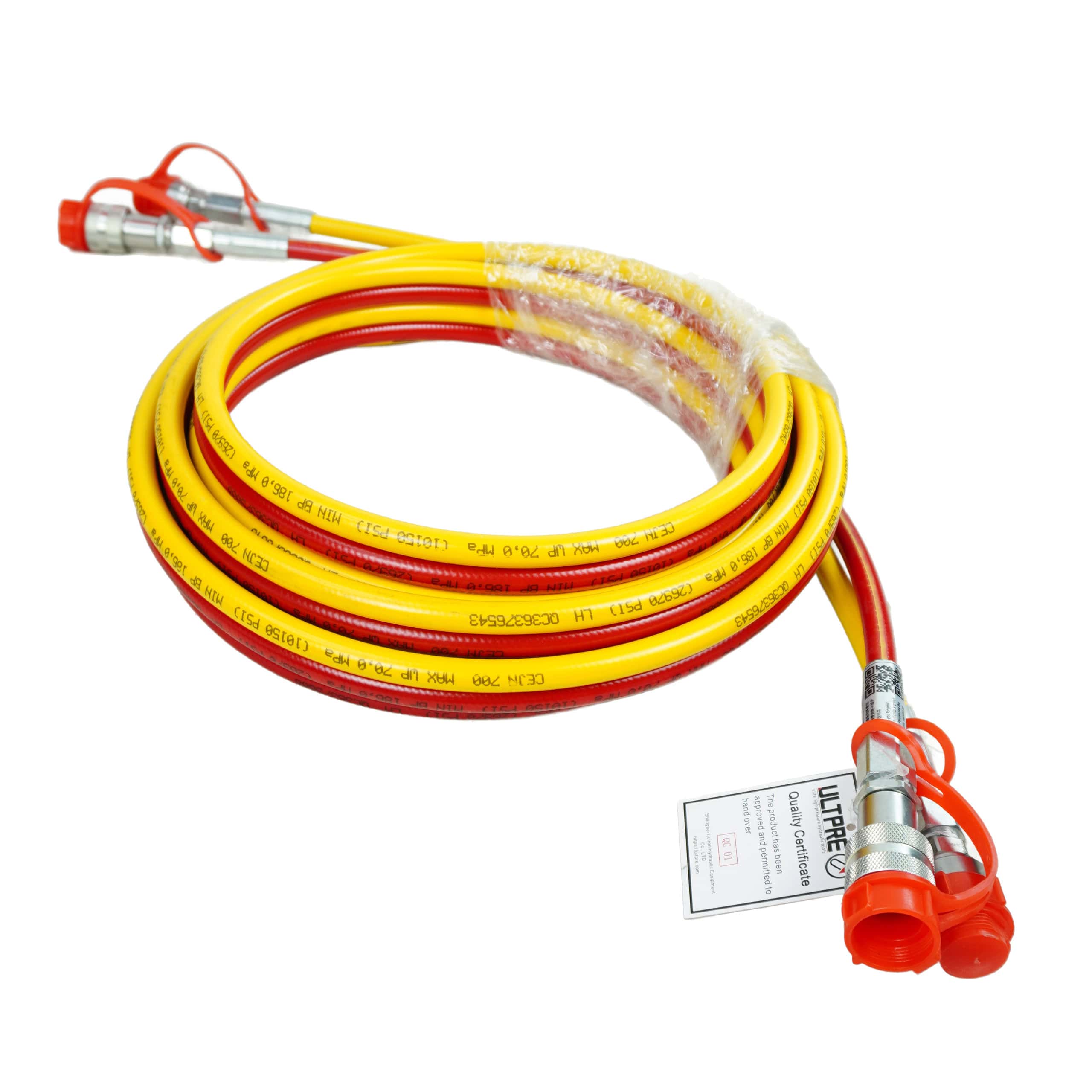

HDP700 Series,70MPa Hydraulic Twin Hose
Engineered for synchronized high-pressure applications, the ULTPRE HDP700 Series delivers dual-circuit fluid transfer at 70MPa working pressure with unmatched efficiency and durability. Its twin-hose design minimizes clutter while ensuring precision control in complex hydraulic systems.
PRICE ON REQUEST
Features
Description
Key Features:
-
Ultra-High Pressure Resilience: Rated for 70MPa continuous operation
-
Precision Fluid Transfer: Low volumetric expansion under load ensures system efficiency and responsive control.
-
Intelligent Protection:
-
<10m Hoses: Rigid PC anti-burst sleeves resist abrasion and impact.
-
≥10m Hoses: Corrugated rubber grip handles prevent kinking and surface damage.
-
Series Comparison
Specification
| Model | Rated Working Pressure | Length | ID | OD | Safety Factor | Inner Layer | Reinforcement Layer | External Layer | Connections |
|---|---|---|---|---|---|---|---|---|---|
| HDP700-6-232 | 70MPa | 6m | 6mm | 13.8mm | 4 | nylon | High-strength tensile steel wire | Polyurethane | Both End 232 Quick Couplers |
| HDP700-12-232 | 70MPa | 12m | 6mm | 13.8mm | 4 | nylon | High-strength tensile steel wire | Polyurethane | Both End 232 Quick Couplers |
