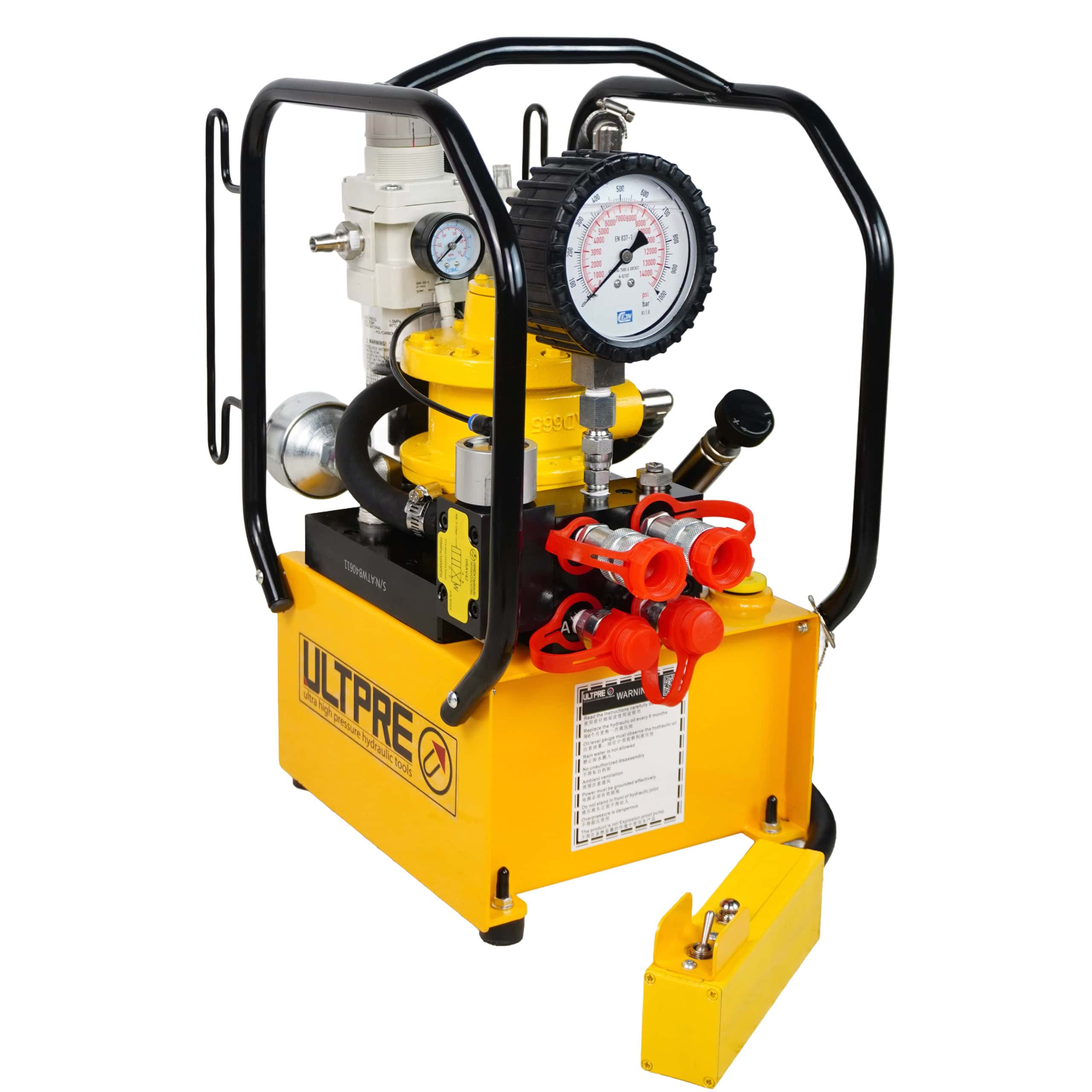

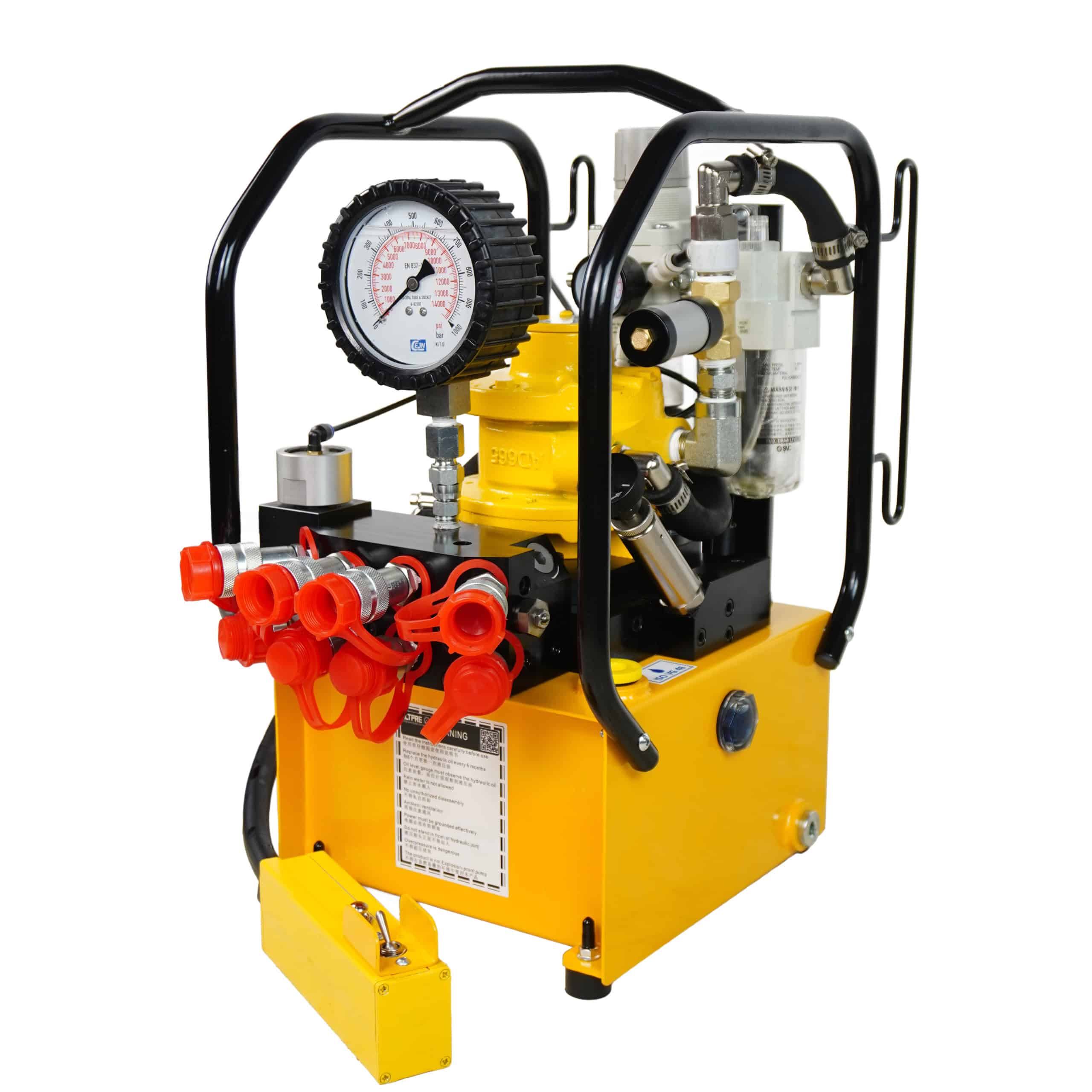

HA5TW,5L Usable Oil,Pneumatic Torque Wrench Pump
The ULTPRE HA5TW is a high-efficiency pneumatic hydraulic pump engineered for demanding industrial applications. Combining powerful performance with user-centric design, it delivers reliable torque output in challenging environments.
Description
Model: HA5TW | Series: HA | Product Line: Industrial Tools
Ideal for workshops, construction, and heavy machinery sectors, the HA5TW excels in environments requiring robust, low-maintenance pneumatic power.
Key Features:
-
Dual-Output Functionality: Supports “one-drives-two” operation for multitasking efficiency.
-
High-Power Pneumatic Motor: Ensures rapid operation and superior productivity.
-
Integrated Air Source Trio Unit: Standard filter, regulator, and lubricator for optimal air quality and system longevity.
-
Advanced Noise Reduction: High-efficiency silencer minimizes operational noise.
-
Submerged Air-Cooling System: Effectively lowers oil temperature for stable, continuous performance.
-
6M Metal Pneumatic Control Handle: Reinforced with threaded tubing for durability and precise control.
-
Tool-Free Pressure Gauge Mount: Simplifies installation and maintenance.
-
Built-In Hose Reel: Streamlines air hose storage and organization.
Specifications
| Maximum Operating Pressure (bar) | 700 |
| Max Air Consumption(M³) | 220 |
| Usable Oil (L) | 5 |
| Connect Torque Wrench Number | 2 or 4 |
| Motor Power(KW) | 1.5 |
| First Stage Oil Flow Rate(L/min) | 7 |
| Second Stage Oil Flow Rate(L/min) | 1 |
| Weight Without Oil(Kg) | 27 |
Diagram

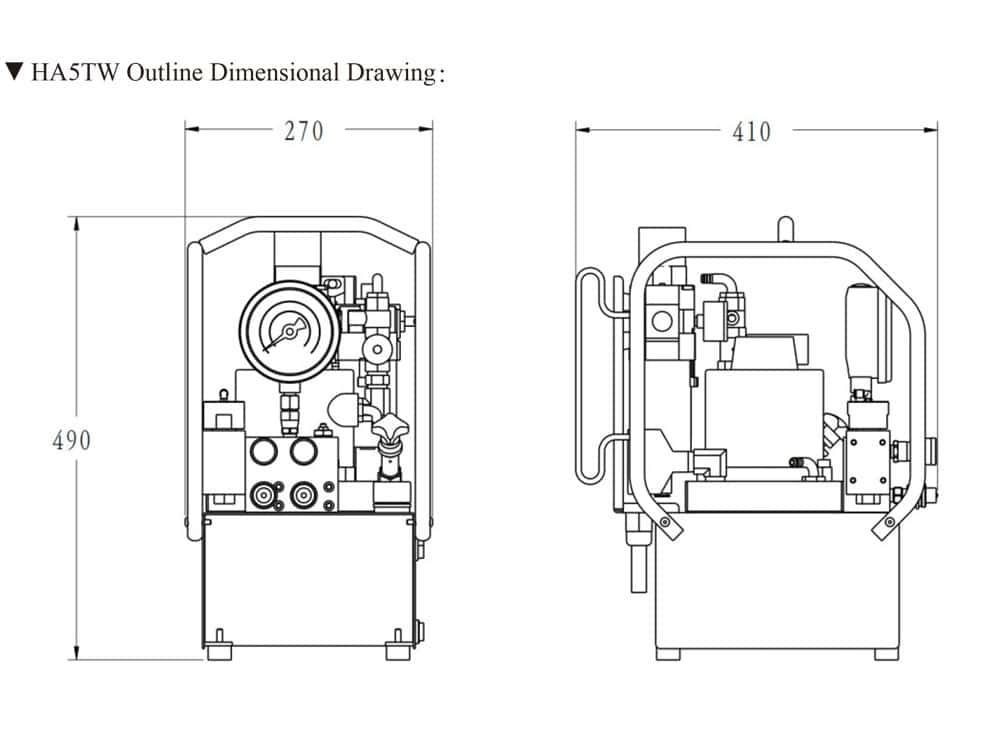

Dimensions

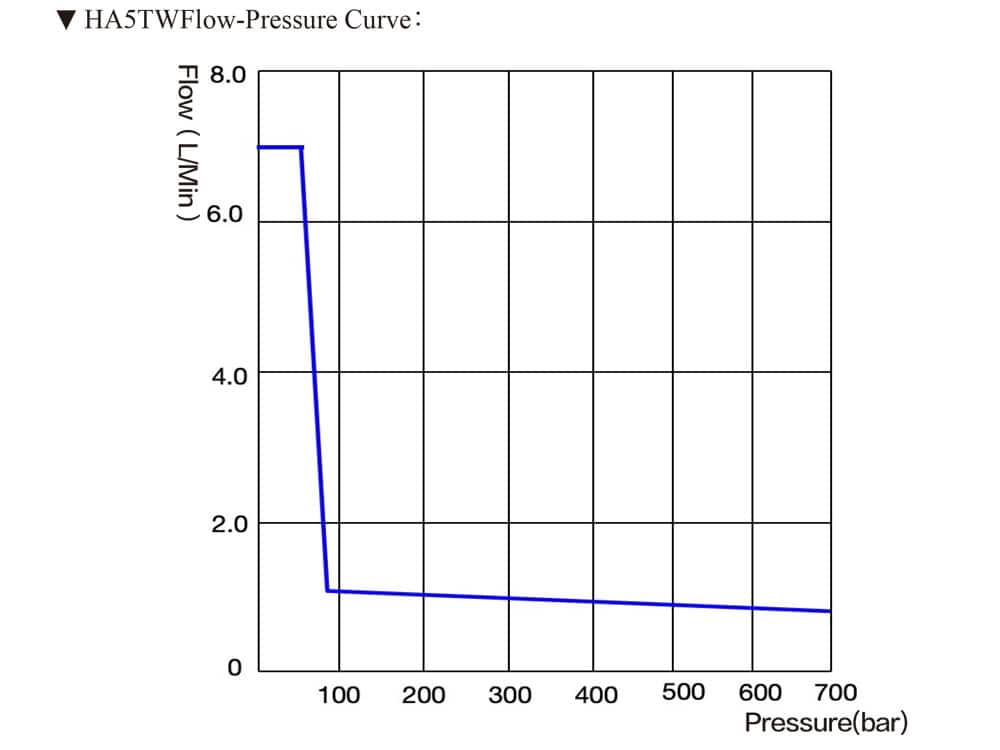

Pressure/Flow Rate Curve

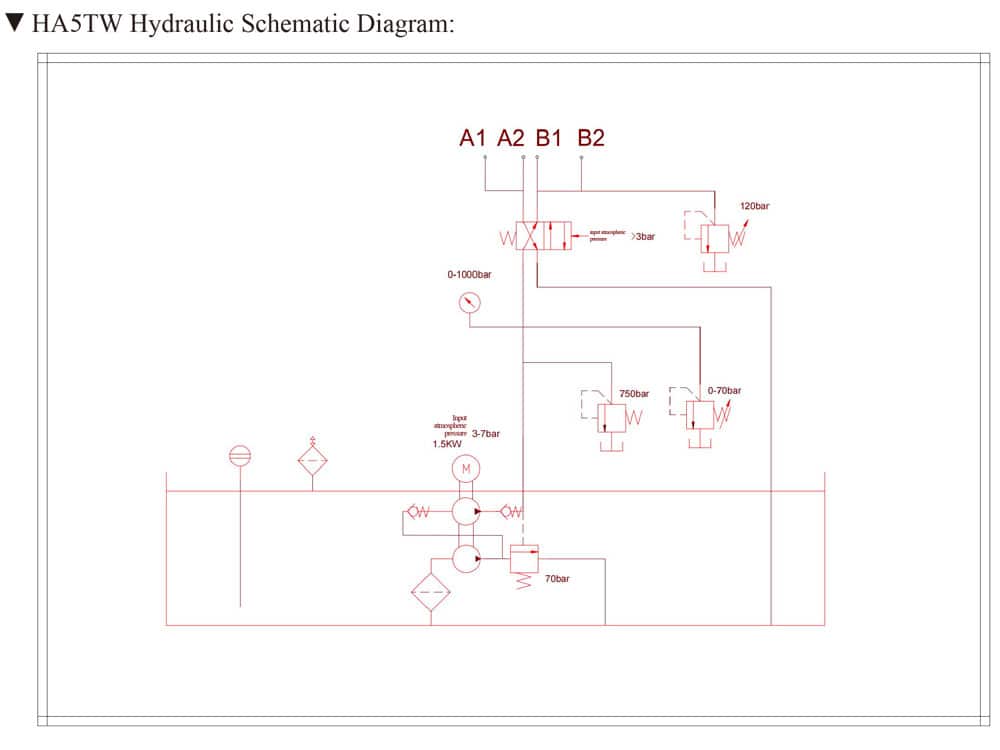

Hydraulic Diagram
Series Comparison
| Model | Max Working Pressure(Mpa) | Motor Power(KW) | Low Pressure Flow Rate(L/min) | High Pressure Flow Rate(L/min) | Max Air Consumption | Usable Oil(L) | Connect Torque Wrench Number | Weight With Oil(Kg) |
|---|---|---|---|---|---|---|---|---|
| HA5TW-2 | 70 | 1.5 | 7 | 1 | 220M3 /H | 5L | 2 | 27 |
| HA5TW-4 | 70 | 1.5 | 7 | 1 | 220M3 /H | 5L | 4 | 29 |
Product Illustration
- Wire winder
- Pneumatic switch
- Triplet
- Relief Valve
- Pilot Relief Valve Block
- Oil Level Gauge
- Oil Outlet
- Refueling And Exhaust Outlet
- Quick Connector
- Suppressor
- Air controlled directional valve
- Air Motor
- Barometer
- Manometer
