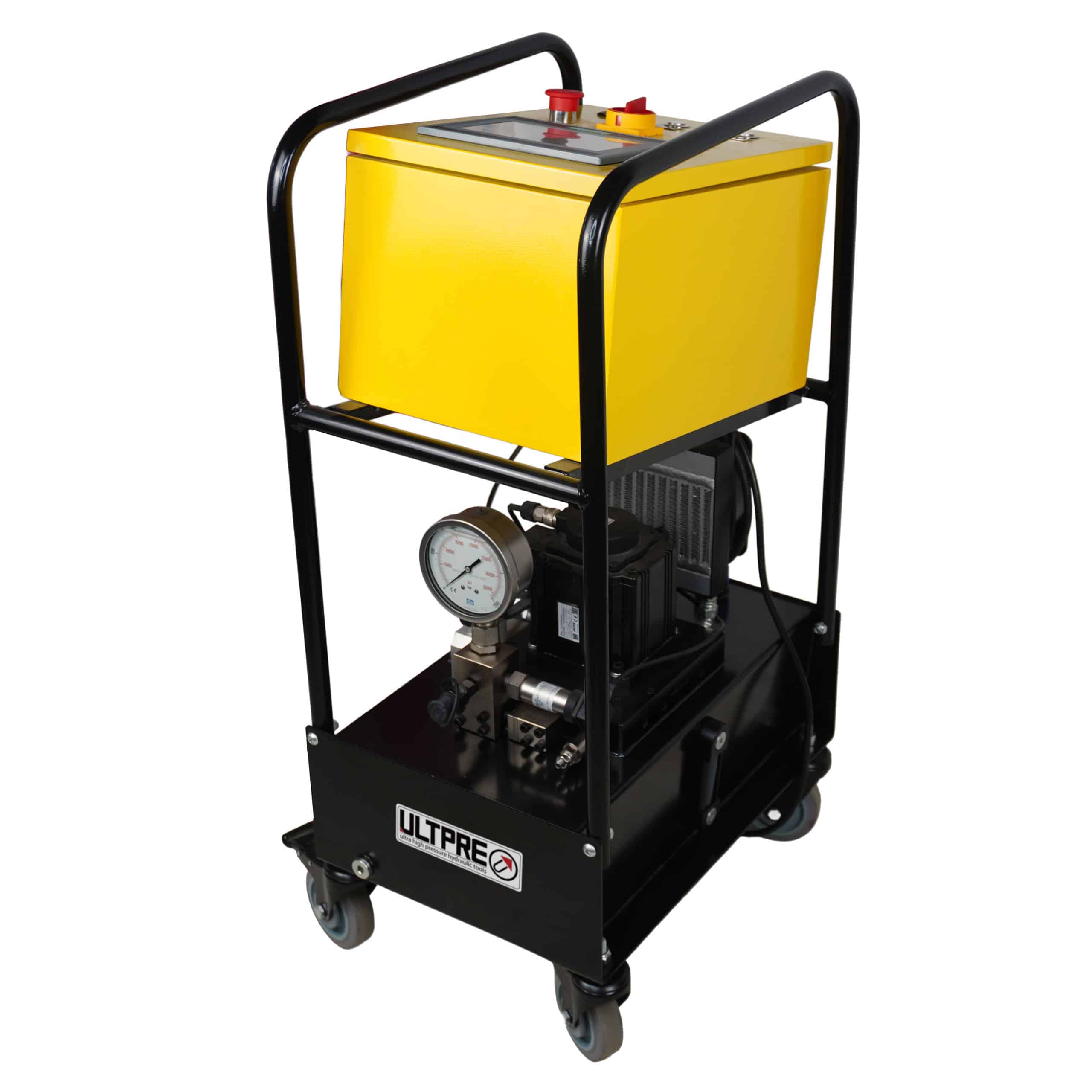

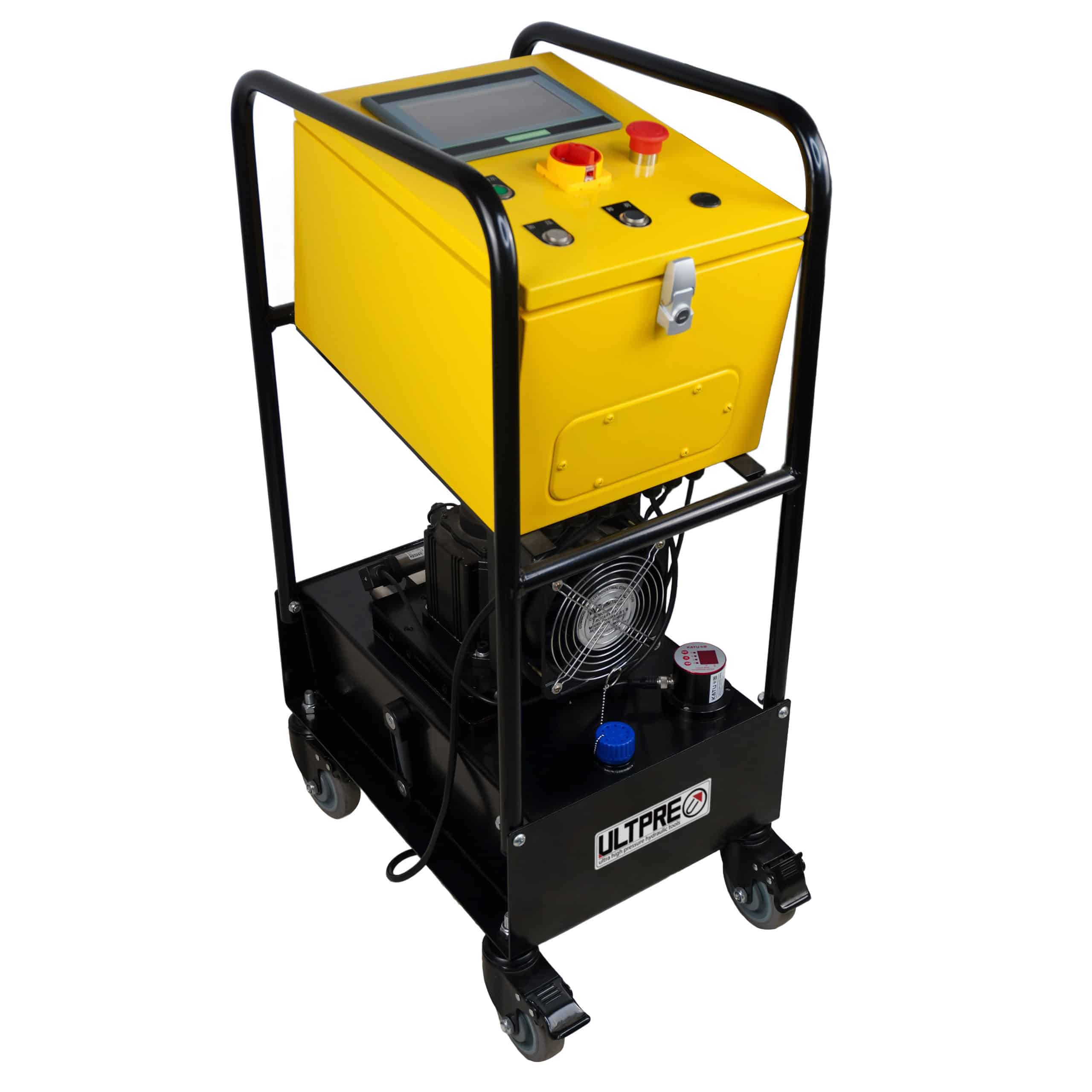

ESP1500,150Mpa Servo-Intelligent Pressure-Holding Hydraulic Tensioner Pump
Designed for mission-critical applications, the ULTPRE ESP Series redefines industrial reliability with its smart servo technology and fully automated pressure management. Engineered to deliver flawless performance in extreme conditions, this pump ensures precision, safety, and unmatched efficiency.
Description
Model: ESP1500 | Series: ESP | Product Line: Industrial Tools
Core Innovations:
-
PLC-Controlled Touchscreen: User-friendly interface with pre-programmed automation for effortless pressure control.
-
One-Touch Operation: Set target pressure, activate—pressure auto-locks and maintains with ±0.5 MPa accuracy.
-
Direct-Drive Pump: Eliminates intensifiers for superior pressure stability and extended lifespan.
-
Emergency Safety: Manual pressure-release knob ensures fail-safe operation, even during power outages.
-
Active Cooling System: Air-cooled radiator keeps oil temperatures stable during prolonged use.
Advanced Intelligence:
-
Real-Time Data Tracking: Log and analyze pressure-time curves for quality assurance.
-
Dual Alarms: Over-pressure, sensor errors, and boost-time alerts for proactive risk mitigation.
-
Multi-Unit Display: Switch seamlessly between MPa, BAR, PSI, or KN units.
-
Fluid Monitoring: Integrated level/temperature sensors trigger alerts for optimal maintenance.
Specifications
| Maximum Operating Pressure (bar) | 1500 |
| Motor Power(KW) | 1.5 |
| Usable Oil (L) | 20 |
| First Stage Oil Flow Rate(L/min) | 2.5 |
| Second Stage Oil Flow Rate(L/min) | 0.3 |
| Touch Screen Size(Inch) | 7 |
| Voltage(VAC) | 380 |
| Weight Without Oil(Kg) | 55 |
Diagram
Dimensions
Hydraulic Diagram

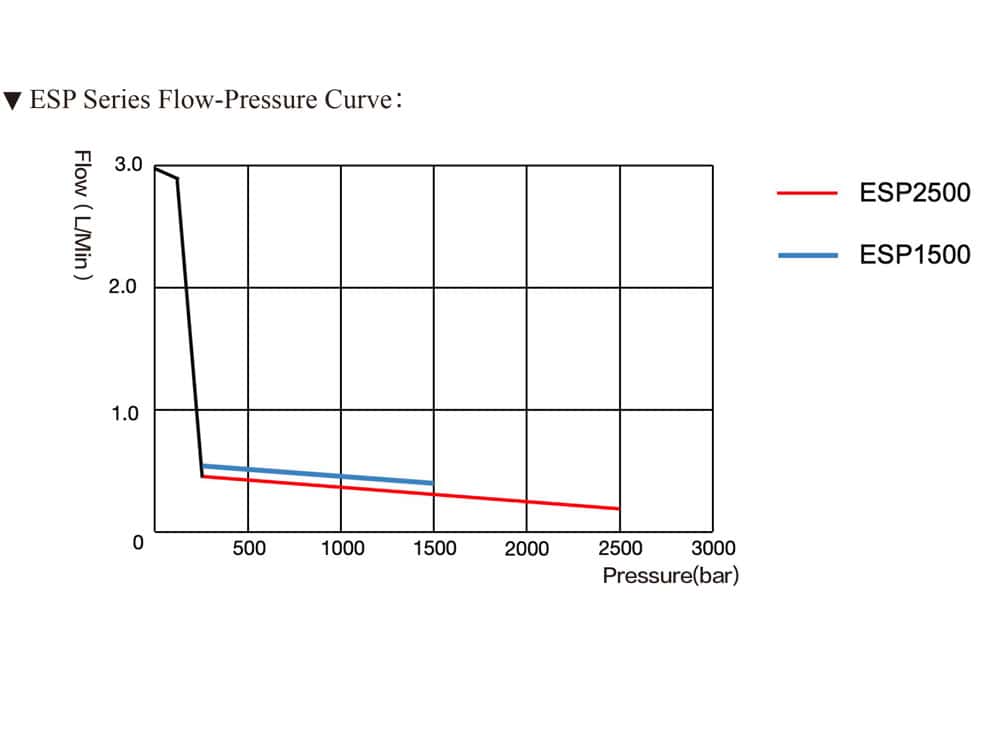

Pressure/Flow Rate Curve
Series Comparison
| Model Number | Voltage | Motor Power | Low Pressure Flow Rate | High Pressure Flow Rate | Usable Oil | Touch Screen Size | Weight Without Oil |
|---|---|---|---|---|---|---|---|
| ESP1500 | 230VAC | 1.5KW | 2.5L/Min | 0.3L/Min | 20L | 7 Inch | 55kg |
| ESP2500 | 230VAC | 1.5KW | 2.5L/Min | 0.2L/Min | 20L | 7 Inch | 55kg |
Product Illustration
- Servo Motor
- Pressure Sensor
- Pressure Holding Valve Block
- Solenoid Relief Valve
- Oil Level and Oil Temperature Sensor
- Oil Filling Exhaust Port
- Air Cooling
- Cabinet
- Power Switch
- PLC Touch Screen
