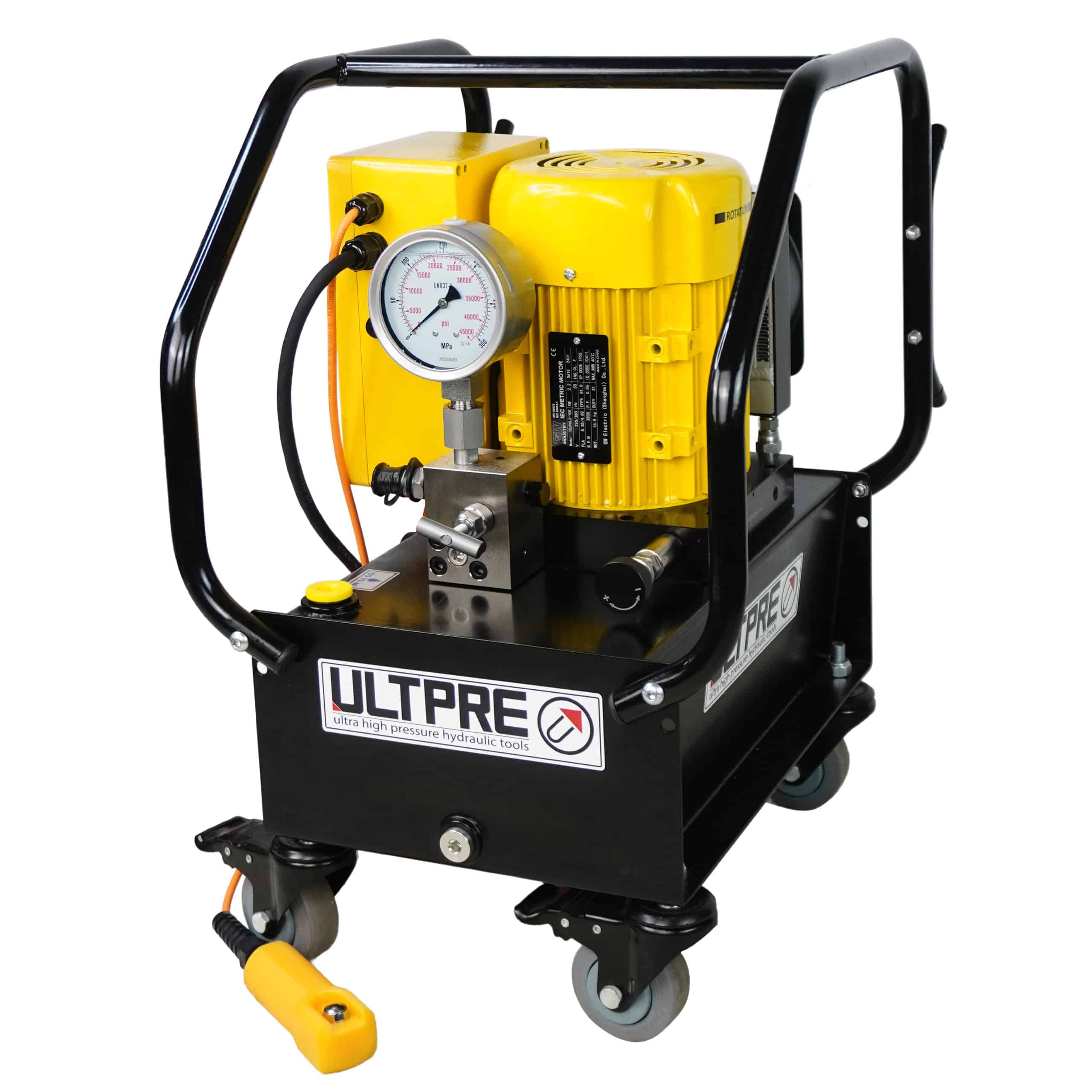

EPW2500,250MPa Ultra-High Pressure Electric Bolt Tensioner Pump
Engineered for demanding industrial applications, the ULTPRE EPW Series redefines efficiency and reliability in ultra-high-pressure hydraulic systems. Designed to deliver unmatched performance, this electric tensioner pump combines cutting-edge technology with user-centric innovation.
Description
Model: EPW2500 | Series: EPW | Product Line: Industrial Tools
-
Two-Stage Pump: Optimized for rapid pressure build-up and energy efficiency.
-
Brushless Motor: Maintenance-free operation with enhanced durability.
-
High-Pressure Radial Plunger Pump: Eliminates the need for intensifiers, ensuring extended service life.
-
Triple Protection: Integrated 3-phase motor protector safeguards against overload and overheating.
-
Active Cooling: Built-in air-cooled radiator minimizes temperature rise during continuous operation.
-
Precision Control: Adjustable pressure valve for seamless fine-tuning
-
Ergonomic Remote: Low-voltage wired handle ensures safe, intuitive operation.
-
Fluid Flexibility: Compatible with ISO VG46 oil or water-glycol mixtures.
-
Cable Management: Detachable reel for tidy storage and hassle-free portability.
Specifications
| Maximum Operating Pressure (bar) | 2500 |
| Motor Power(KW) | 2.2 |
| Usable Oil (L) | 10 or 20 or 40 |
| First Stage Oil Flow Rate(L/min) | 3 |
| Second Stage Oil Flow Rate(L/min) | 0.45 |
| Voltage(VAC) | 380 |
Diagram

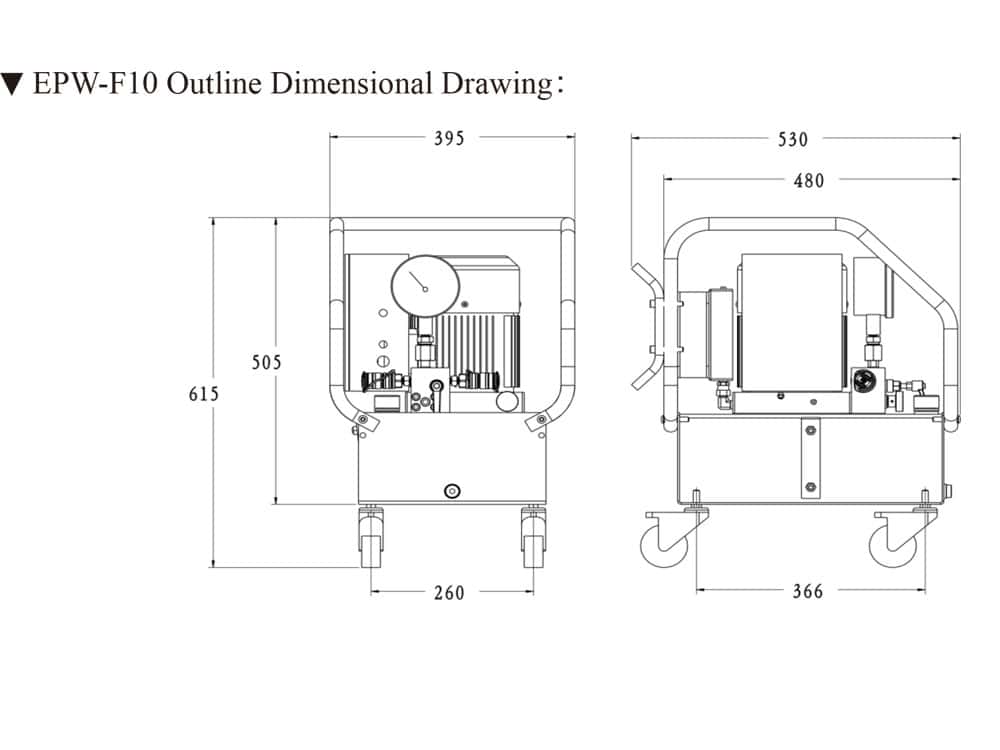

EPW-F10 Dimensions

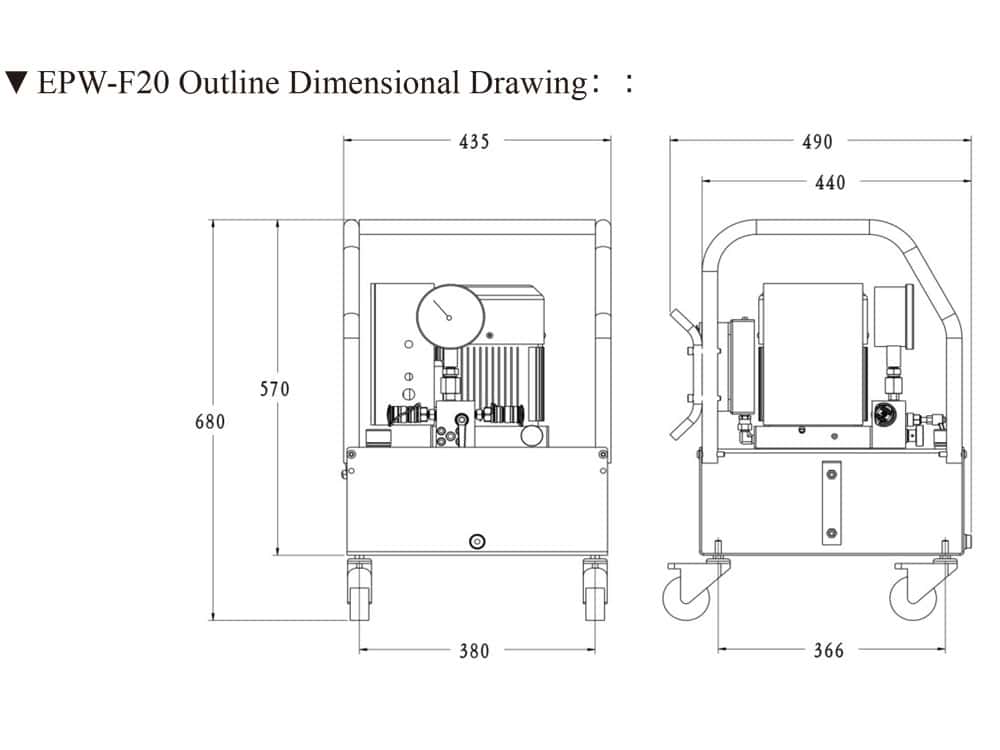

EPW-F20 Dimensions

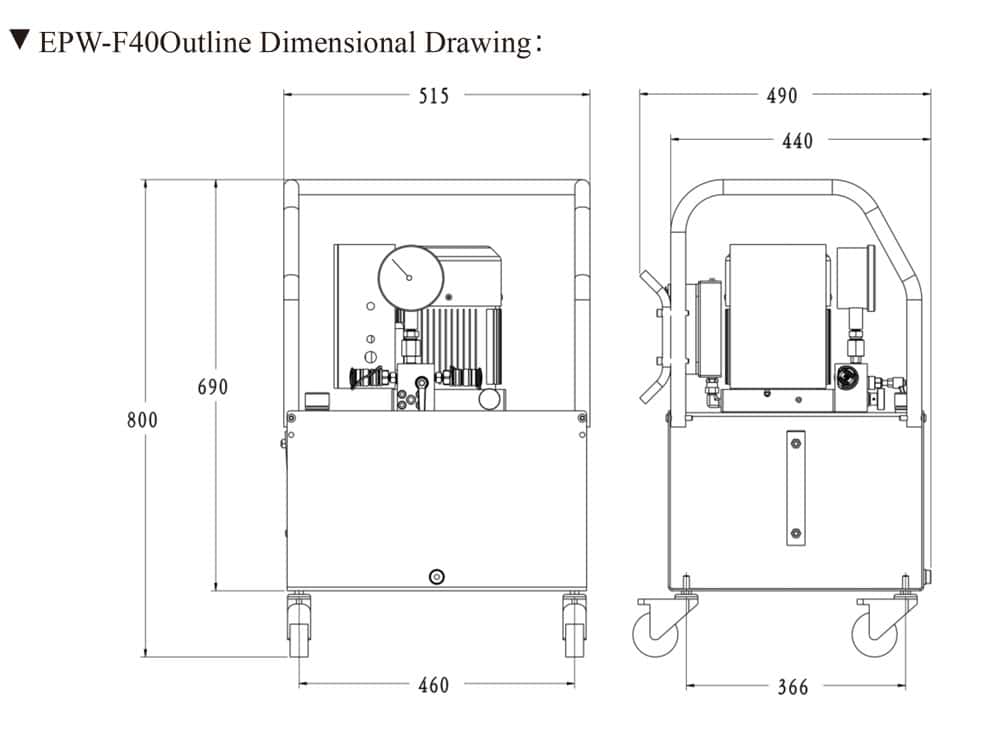

EPW-F40 Dimensions
Flow Curve
Hydraulic Diagram
Series Comparison
| Model Number | Max Working Pressure | Motor Power | Low Pressure Flow Rate | High Pressure Flow Rate | Usable Oil | Noise Level | Weight Without Oil |
|---|---|---|---|---|---|---|---|
| EPW1500F10 | 1500 bar | 2.2KW | 3L/Min | 0.8L/Min | 10L | 80dB | 46kg |
| EPW1500F20 | 1500 bar | 2.2KW | 3L/Min | 0.8L/Min | 20L | 80dB | 54kg |
| EPW1500F40 | 1500 bar | 2.2KW | 3L/Min | 0.8L/Min | 40L | 80dB | 72Kg |
| EPW2500F10 | 2500 bar | 2.2KW | 3L/Min | 0.45L/Min | 10L | 80dB | 46kg |
| EPW2500F20 | 2500 bar | 2.2KW | 3L/Min | 0.45L/Min | 20L | 80dB | 54kg |
| EPW2500F40 | 2500 bar | 2.2KW | 3L/Min | 0.45L/Min | 40L | 80dB | 72Kg |
Product Illustration
- Protected Framework
- Air Cooling
- Motor
- Relief Valve
- Oil Filling Exhaust Port
- Oil Release Port
- Oil Level Gauge
- Pressure Adjusting Valve
- Quick Connector
- Cabinet
- Pressure Gauge
