EDP2000-10,1.5KW,10L Usable Oil,200MPa Double-Acting Ultra-High Pressure Electric Pump
The EDP Series from ULTPRE is a robust double-acting ultra-high pressure electric pump designed for demanding industrial applications, delivering a maximum output pressure of 200 MPa. Ideal for heavy-duty hydraulic systems, the EDP Series ensures safety, efficiency, and adaptability in high-pressure environments.
Description
Model: EDP2000-10 | Series: EDP | Product Line: Industrial Tools
Engineered for reliability and efficiency, it combines advanced technology with user-centric features:
-
IEC Brushless Motor: Maintenance-free operation ensures long-term durability and reduced downtime.
-
Direct-Drive High-Pressure Plunger Pump: Eliminates the need for boosters, enhancing service life and operational stability.
-
Built-in Safety & Precision Control: Features an integrated safety valve and an external adjustable relief valve for precise pressure management.
-
Optimized Thermal Management: Equipped with an air-cooled radiator to minimize temperature rise during continuous operation.
-
Convenient Operation: Includes a weak current control handle and a micro-leakage manual directional valve for seamless control.
-
Enhanced Monitoring & Mobility: Fitted with a P-port pressure gauge, lockable casters for secure positioning, and a 4-core industrial plug for easy connectivity.
Specifications
| Maximum Operating Pressure (bar) | 2000 |
| Type | Double Acting |
| Motor Power(KW) | 1.5 |
| Usable Oil (L) | 10 |
| First Stage Oil Flow Rate(L/min) | 3 |
| Second Stage Oil Flow Rate(L/min) | 0.5 |
| Voltage(VAC) | 380 |
| Weight Without Oil(Kg) | 48 |
Diagram

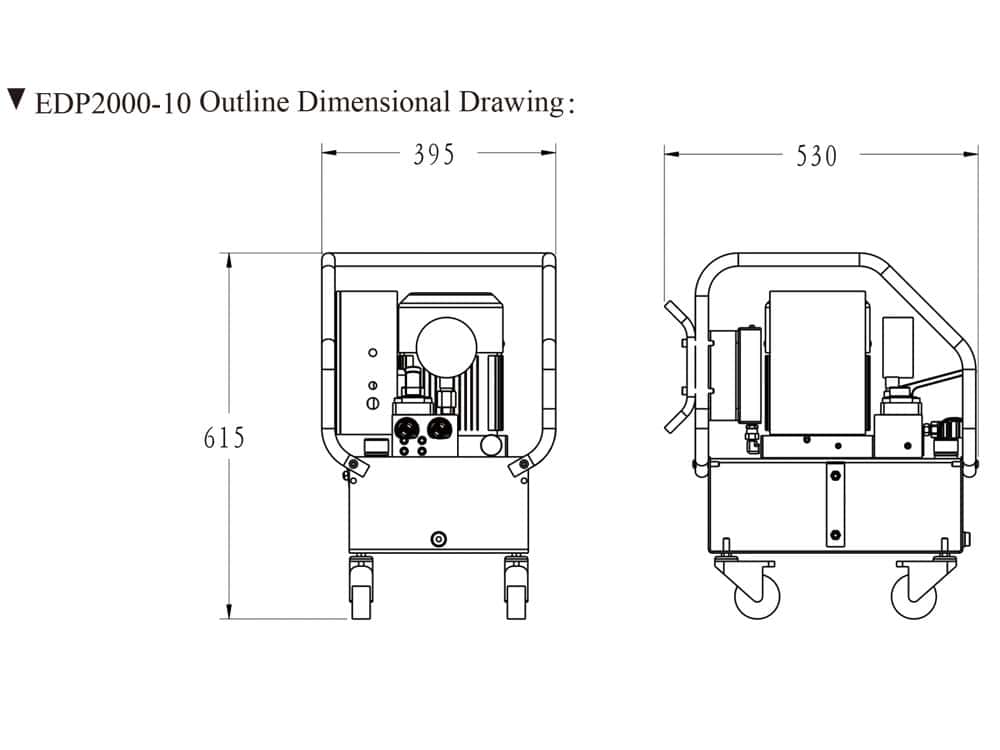

Dimensions
Hydraulic Diagram
Pressure/Flow Rate Curve
Series Comparison
| Model Number | Max Working Pressure | Voltage | Motor Power | Low Pressure Flow Rate | High Pressure Flow Rate | Usable Oil | Weight Without Oil |
|---|---|---|---|---|---|---|---|
| EDP2000-10 | 200MPa | 380VAC | 1.5KW | 3L/Min | 0.5L/Min | 10L | 48kg |
| EDP2000-60 | 200MPa | 380VAC | 4KW | 4.8L/Min | 1L/Min | 60L | 112kg |

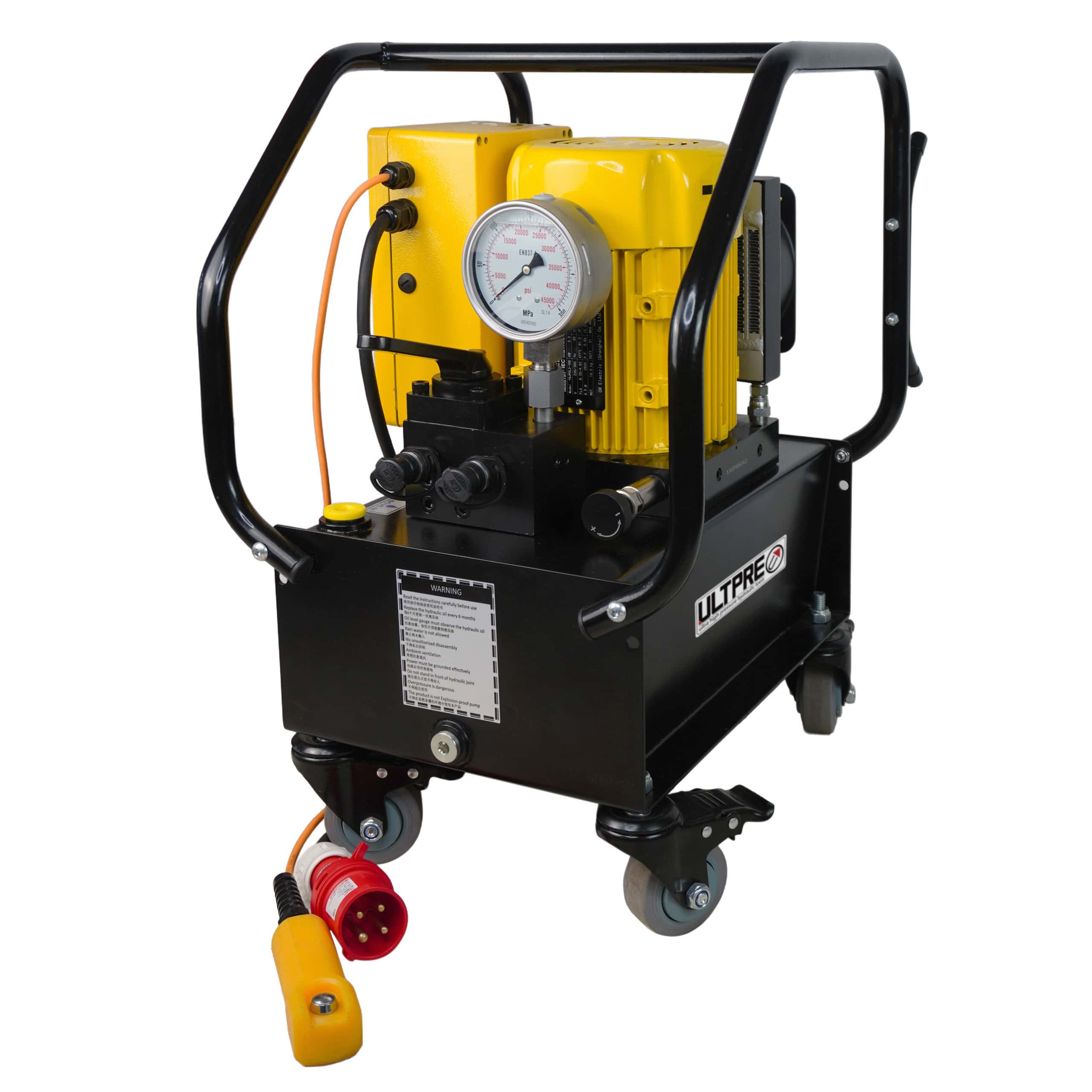

Product Illustration
- Protected Framework
- Motor
- Air cooled radiator
- Manual Direction Control Valve
- Quick Connectors
- Oil Filling Exhaust Port
- Oil Rlease Port
- Oil Level Gauge
- Pressure Adjusting Valve
- Cabinet
- Wire Winder
- Pressure Gauge
