OSC-3030EVB43R, 0.75KW, Electric Hydraulic Pump
Engineered for precision synchronization, the ULTPRE OSC-3030EVB43R seamlessly integrates with ULTPRE’s OSC Series PLC Control Box to deliver unmatched synchronized lifting and load-lowering for critical industrial operations. This high-efficiency dual-circuit pump combines robust engineering with intelligent control for mega-structure construction and heavy-load applications.
Description
Series: OSC | Product Line: Industrial Tools
Key Features:
-

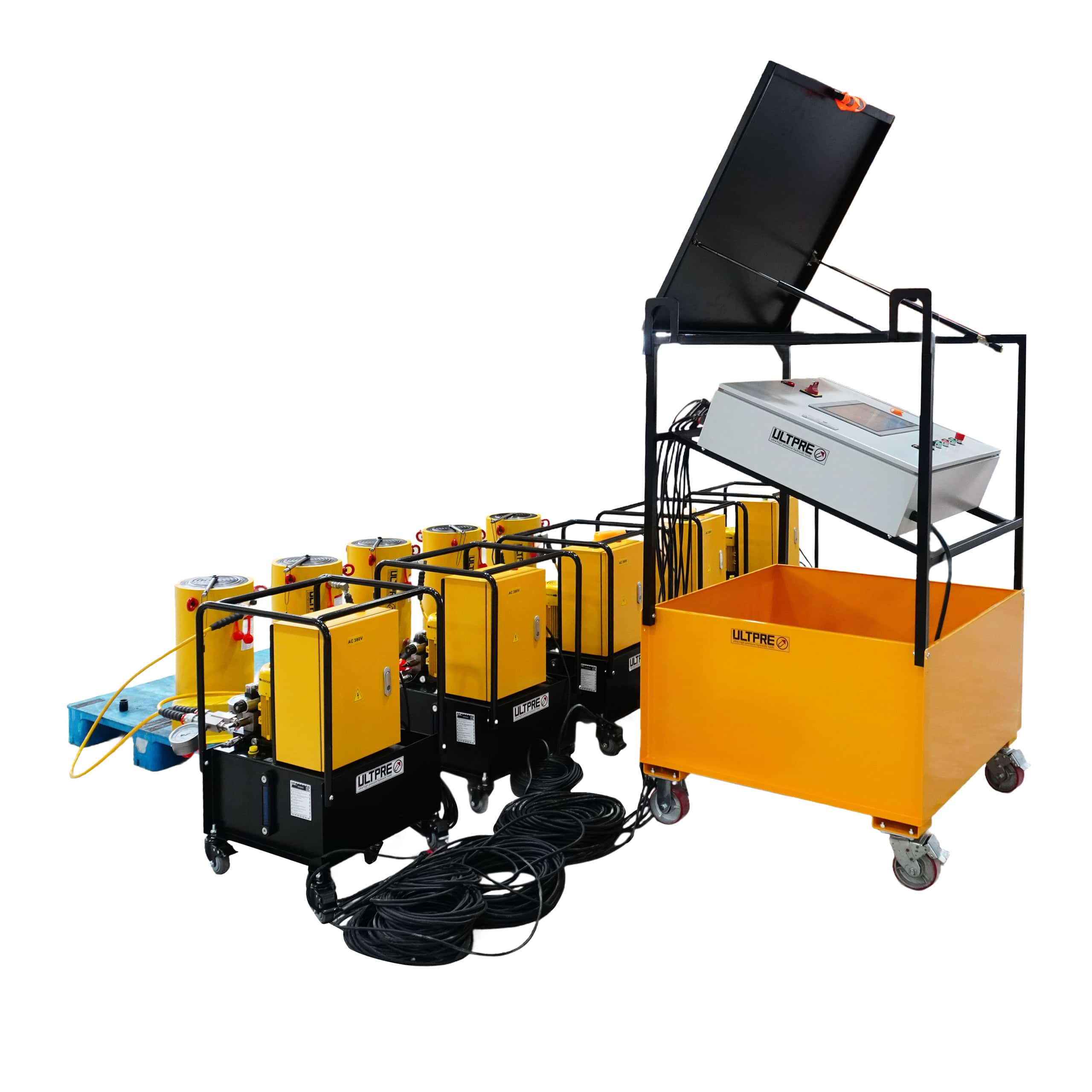

PLC Synchronization Ready: Directly interfaces with OSC Series Satellite-Type Synchronization Lifting Systems for millimeter-perfect cylinder control.
-
Hybrid Dual-Pump System: Gear pump + radial piston pump enables two-stage high-efficiency flow (low-pressure rapid advance → high-pressure precision lifting).
-
Ultra-Quiet & Lightweight: IEC brushless motor (75dB) with integrated pump head minimizes noise and weight.
-
Dual-Layer Pressure Safety: Built-in safety valve + external adjustable overflow valve.
-
Real-Time Monitoring: Tool-ready pressure gauge, visual oil level window, and 1000mm-range displacement sensor (10m cable).
-
Industrial Connectivity: Quick-connect threaded outlets, 3-phase aviation plug, and detachable 6M control handle.
-
Zero-Maintenance Design: Sealed oil filler with air filter, drain plug, and brushless motor reliability.

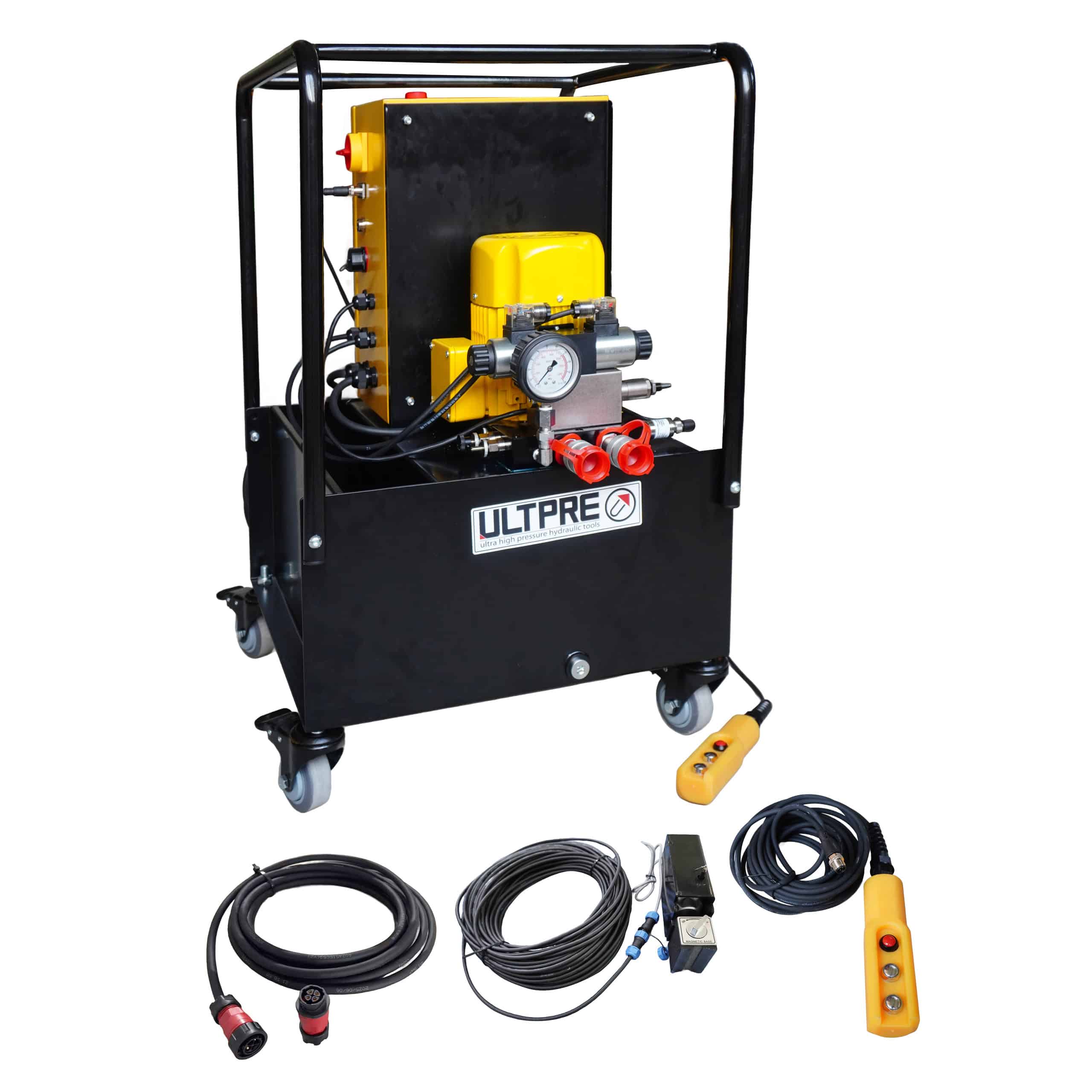

Tool Kit List:
6 Meter Power Cable X 1PC
100mm Displacement Sensor X 1PC
10 Meter Displacement Sensor Cable X 1PC
6 Meter Remote Control Handle X 1PC
Aviation Plug X 1PC
Socket X 1PC
Frequently Purchased Together
Specifications
| Model | Max Working Pressure(Mpa) | Motor Power(KW) | Motor Phase | Voltage | Low Pressure Flow Rate(L/min) | High Pressure Flow Rate(L/min) | Weight(Kg) |
|---|---|---|---|---|---|---|---|
| OSC-3030EVB43R | 70 | 0.75 | 3 | 380VAC | 3.5 | 0.5 | 93 |
Diagram

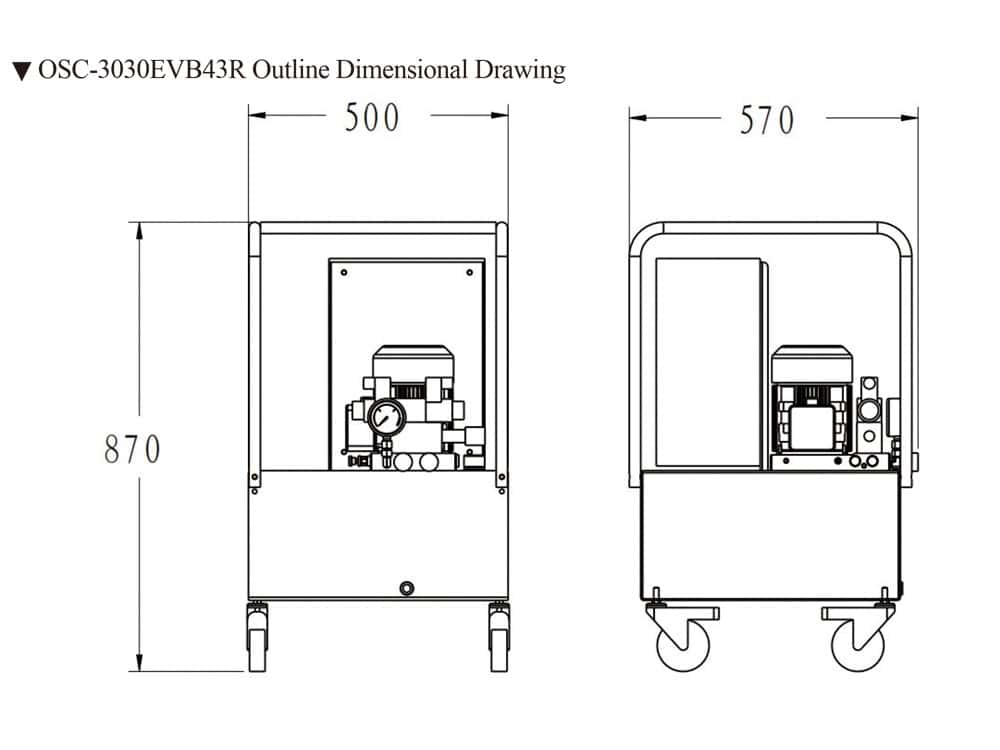

Dimension
Pressure Curve

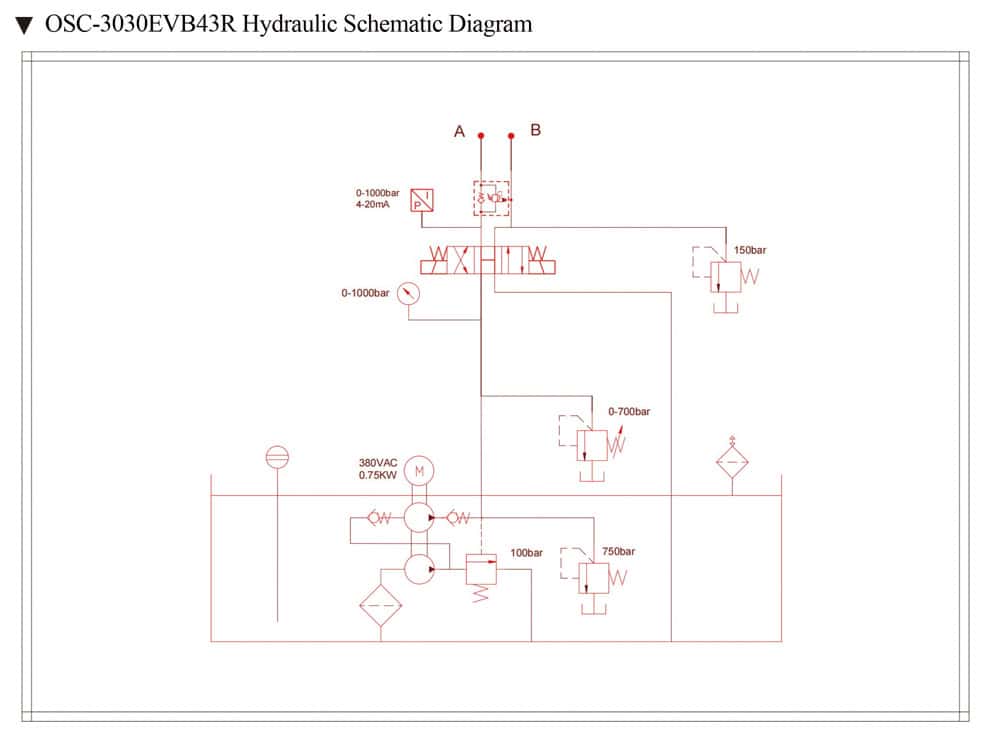

Hydraulic Diagram

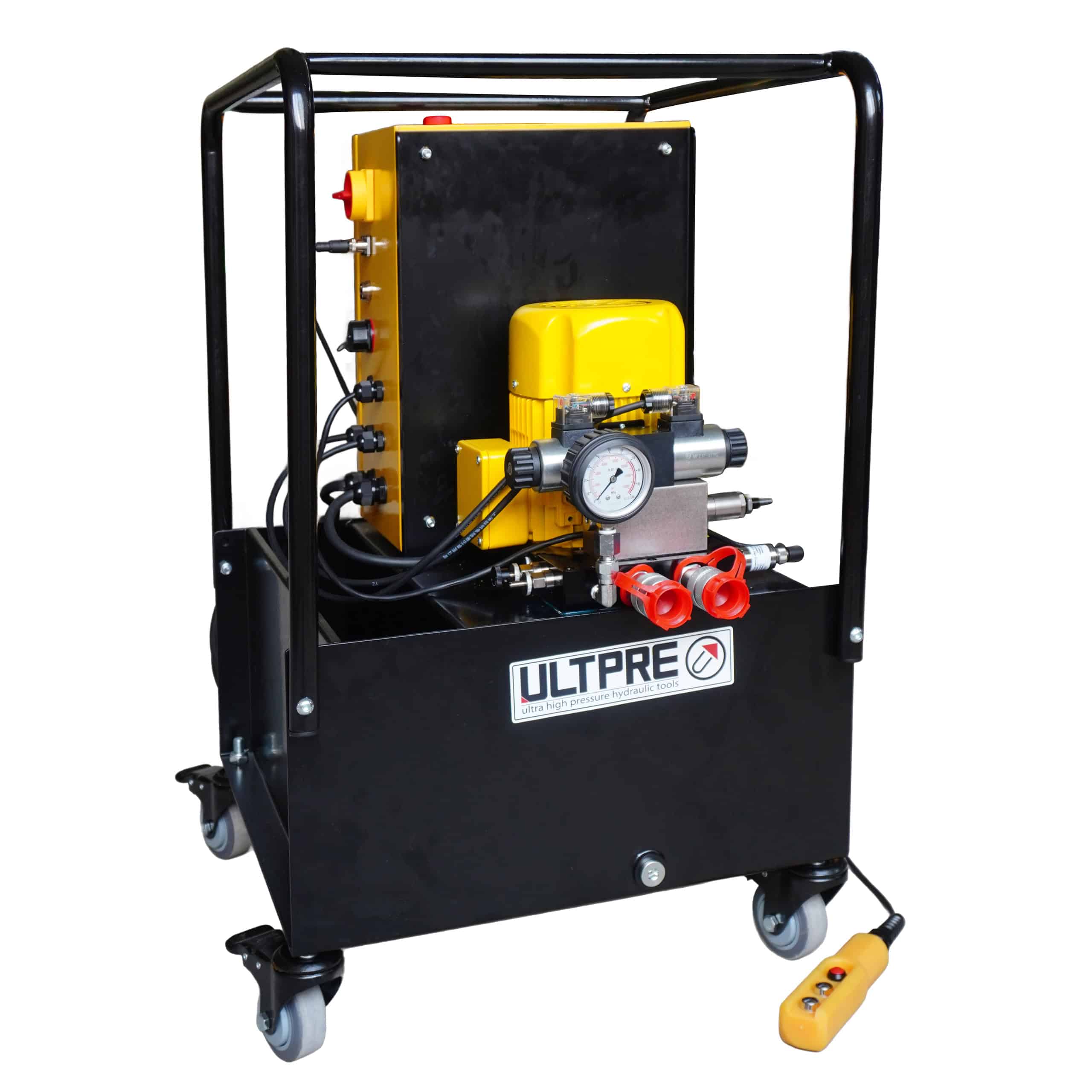

Product Illusion
- Protection Frame
- Motor
- Pressure Sensor
- Quick Coupler
- Oil Level Gauge
- Lockable Wheels
- Oil Releasing Port
- Pressure Adjusting Valve
- Solenoid Directional Valve
- Pressure Gauge
- Cabinet
