HE5TW10-AT，Intelligent Electric Hydraulic Wrench Pump,1.5KW,10L Usable Oil
The ULTPRE HE5TW10-AT is an intelligent electric hydraulic pump designed for precision bolt tightening in critical industrial applications. Featuring advanced automation and user-friendly controls, it ensures efficiency, accuracy, and safety in high-stakes environments.
Description
Model: HE5TW10-AT | Series:HE | Product Line: Industrial Tools
Technical Specs:
Ideal for energy, shipbuilding, and heavy machinery sectors, the HE5TW10-AT redefines smart hydraulic power with its blend of automation, adaptability, and reliability.
Key Features:
-
Smart Automation: One-Touch Auto-Cycle simplifies repetitive tasks, while real-time pressure monitoring with alarm alerts prevents system overload.
-
Customizable Precision: Configurable tightening delay timer guarantees optimal bolt seating and torque consistency.
-
7-Inch Touchscreen Interface: Intuitive controls for seamless parameter adjustments and system diagnostics.
-
High-Capacity Cooling: Integrated air-cooled radiator maintains stable temperatures during prolonged operation.
-
Multi-Tool Flexibility: Optional dual- or quad-outlet configurations (1-to-2 or 1-to-4) enable simultaneous control of multiple hydraulic torque wrenches.
-
Robust Build: Full protective housing and industrial-grade components ensure durability under extreme conditions.
Specifications
| Maximum Operating Pressure (bar) | 700 |
| Motor Power(KW) | 1.5 |
| Usable Oil (L) | 10 |
| Connect Torque Wrench Number | 2 or 4 |
| Motor Phase | 1PH |
| First Stage Oil Flow Rate(L/min) | 9 |
| Second Stage Oil Flow Rate(L/min) | 1 |
| Weight(Kg) | 60 |
Diagram

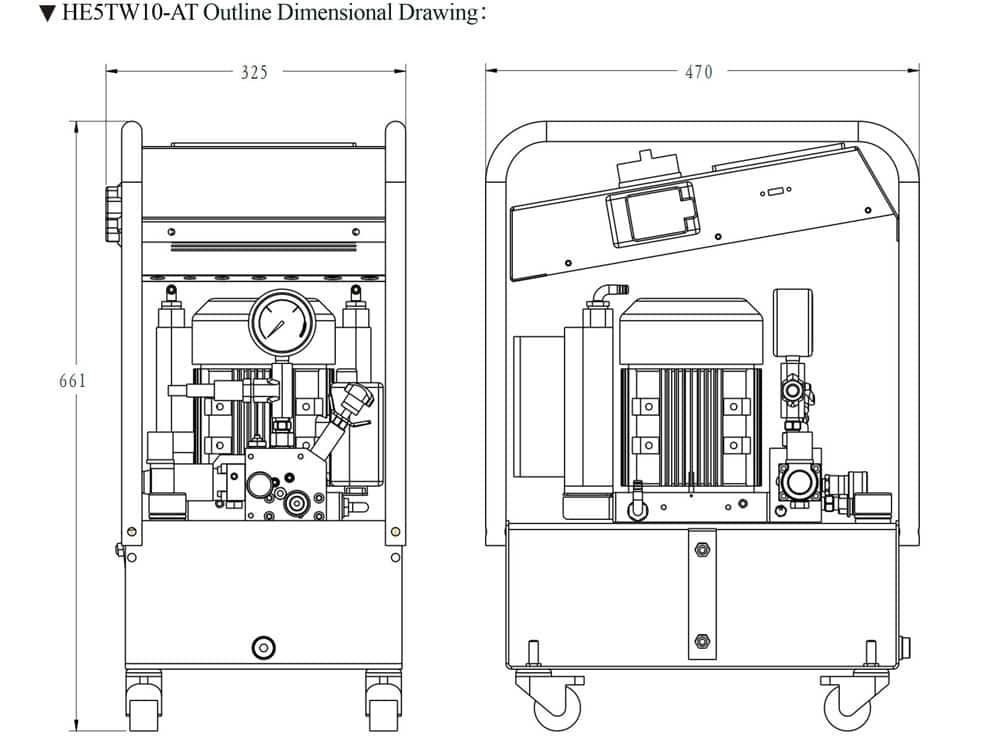

Dimensions

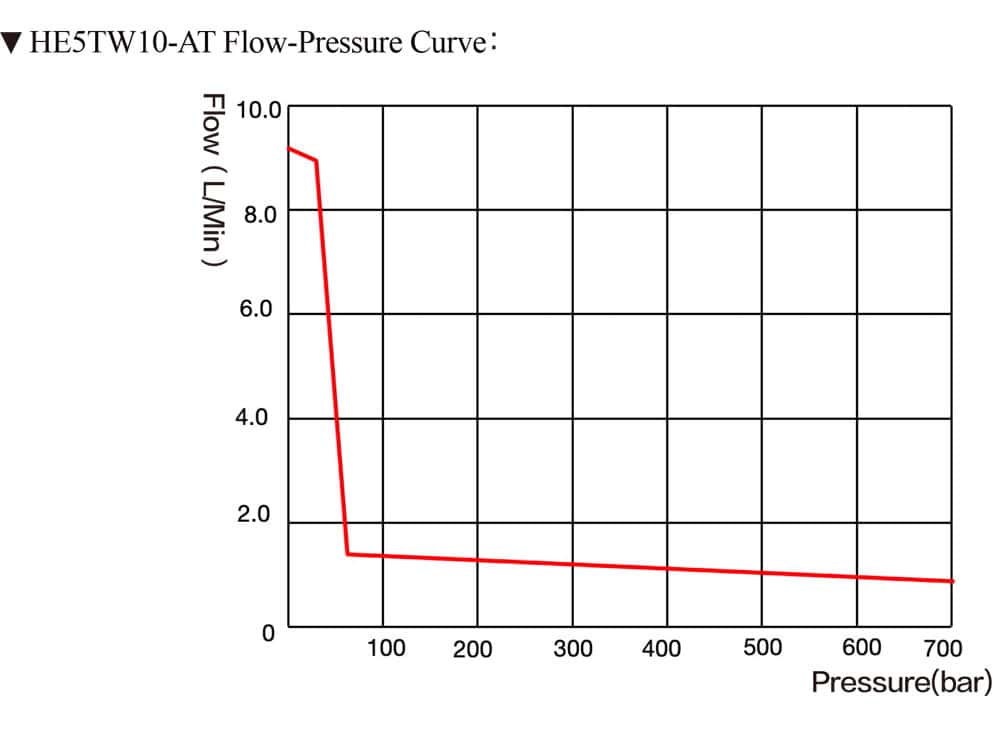

Pressure/Flow Rate Curve

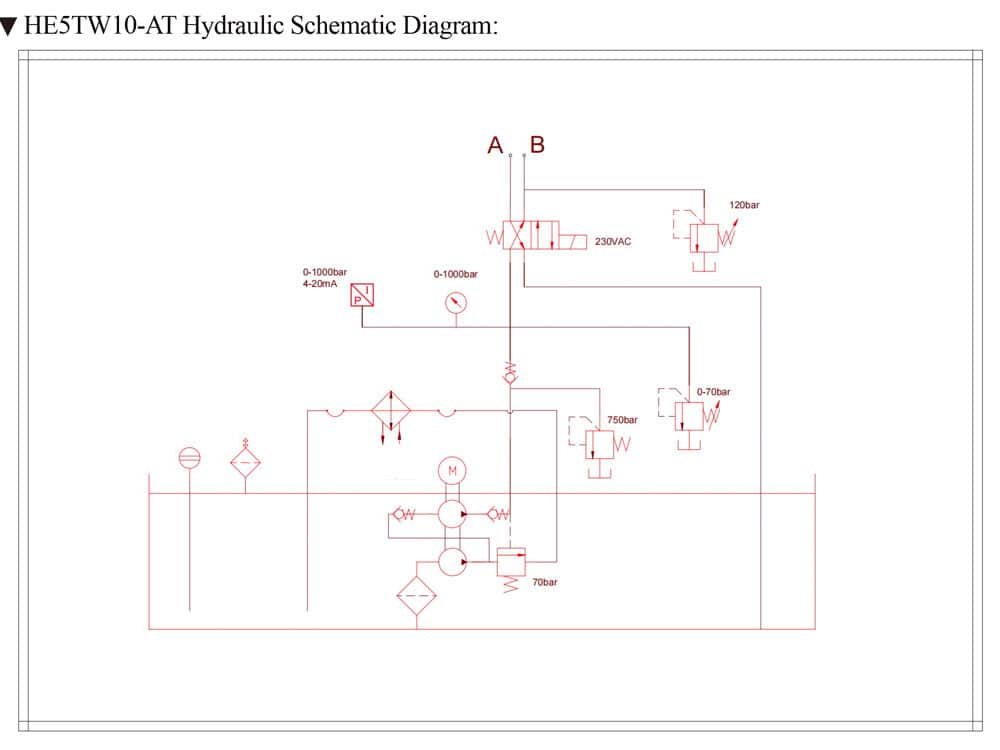

Hydraulic Diagram
Series Comparison
| Model | Max Working Pressure(Mpa) | Motor Power(KW) | Low Pressure Flow Rate(L/min) | High Pressure Flow Rate(L/min) | Phase | Usable Oil(L) | Connect Torque Wrench Number |
|---|---|---|---|---|---|---|---|
| HE5TW10AT-2 | 70 | 1.5 | 9 | 1 | 1PH | 10L | 2 |
| HE5TW10AT-4 | 70 | 1.5 | 9 | 1 | 1PH | 10L | 4 |

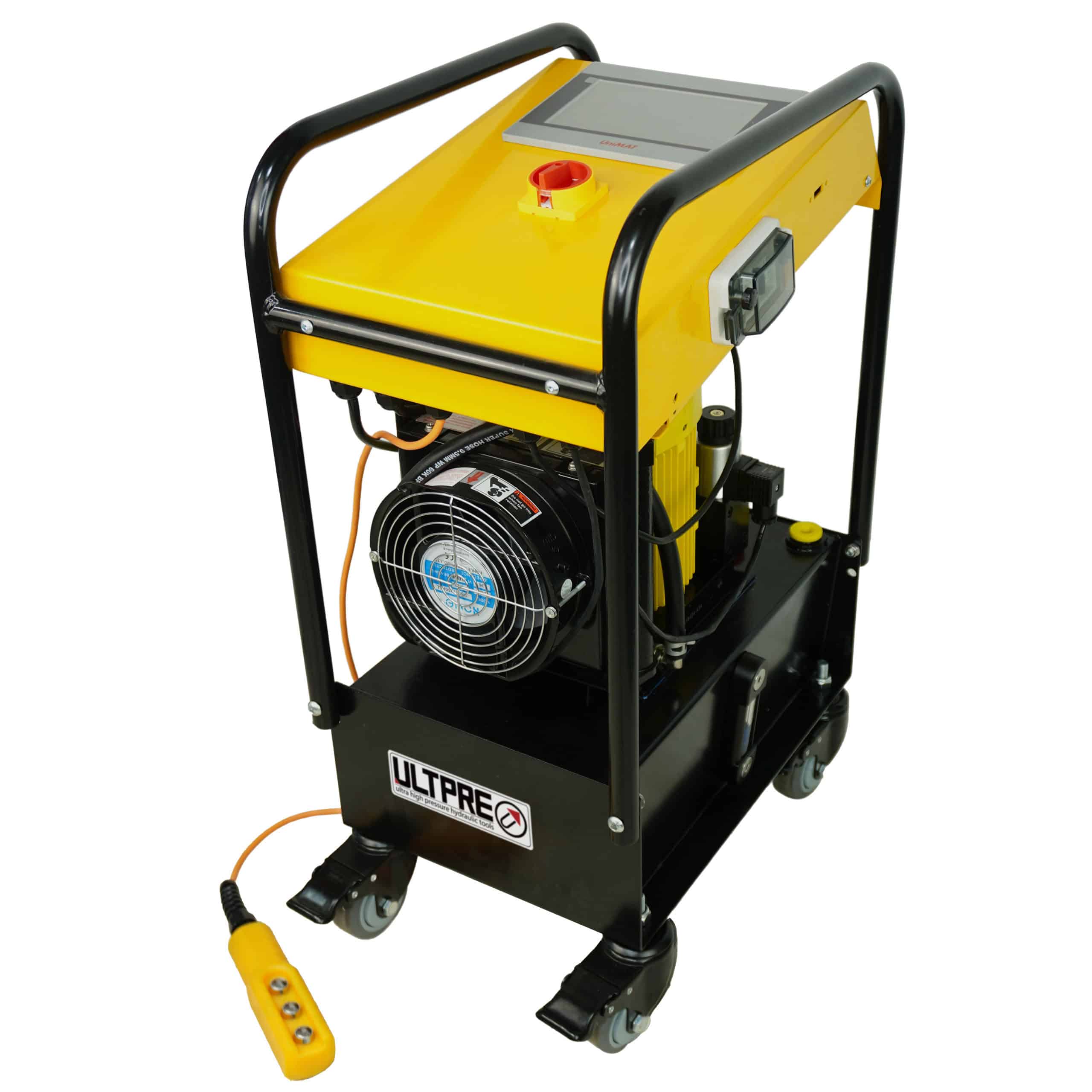

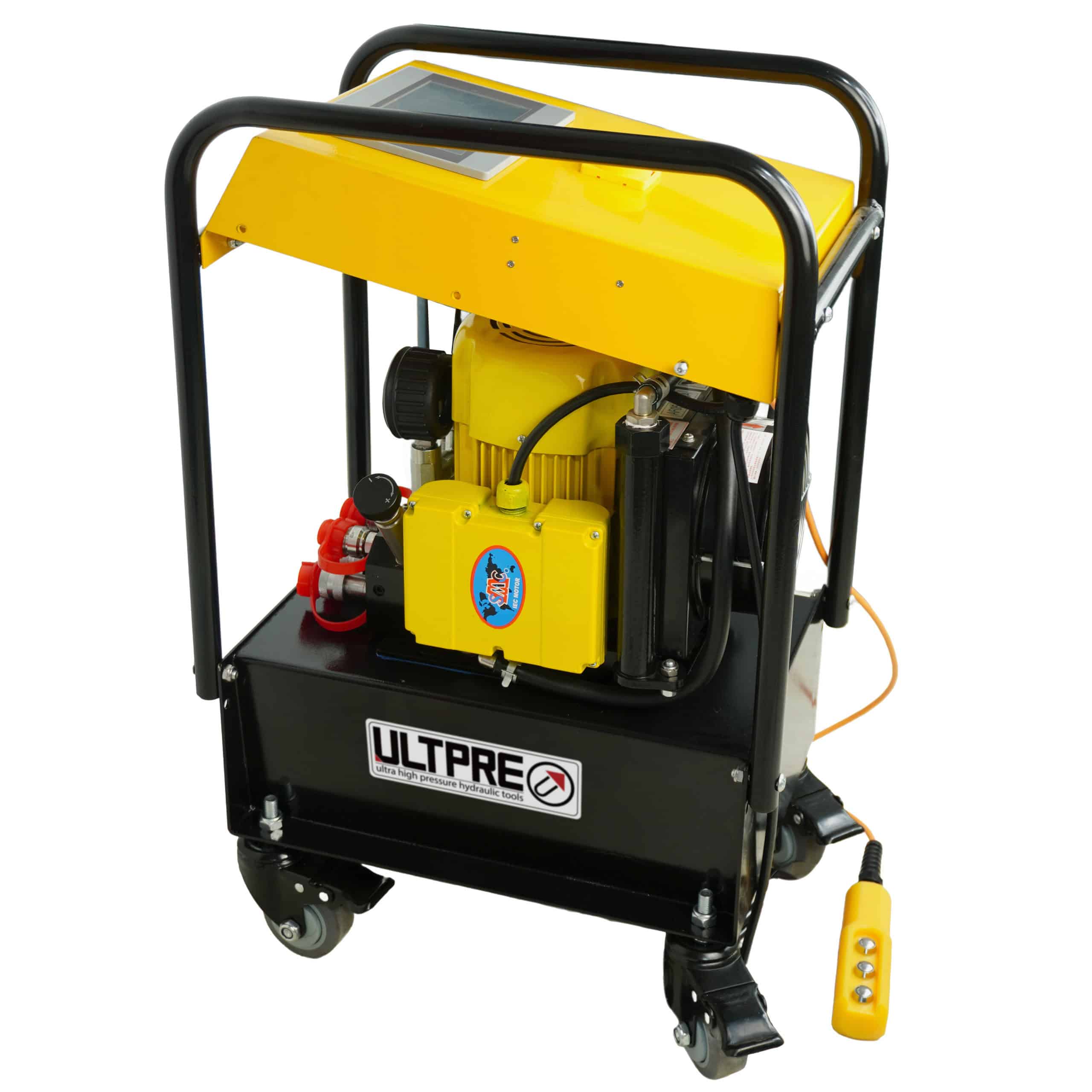

Product Illustration
- PLC Touch Screen
- Power Switch
- Air Cooling Radiator
- Pressure Adjusting Valve
- Oil Release Outlet
- Oil Level Gauge
- Quick Connector
- Solenoid Direction Control Valve
- Pressure Sensors
- Motor
- Manometer
