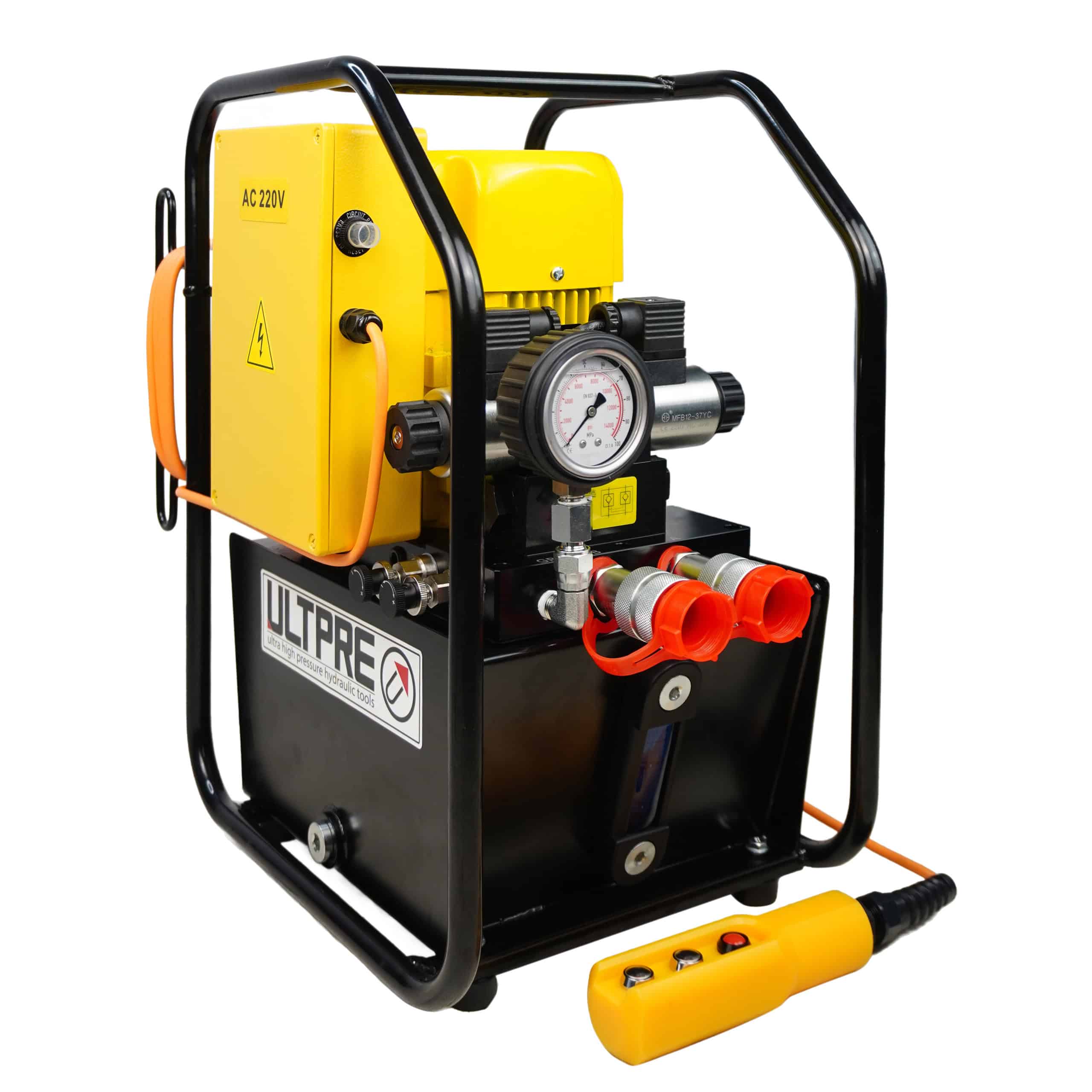

HC4007EVL43R,Portable Electric Hydraulic Pump,1.1KW,7L Usable Oil,Double Acting Solenoid Control
The ULTPRE HC4 Series portable electric hydraulic pump is engineered to power a wide range of hydraulic tools, including cylinders, flange separators, bolt tensioners, nut splitters, and more. Ideal for industrial maintenance, construction, and repair applications, it combines portability with robust performance.
Description
Model: HC4007MV43R | Series: HC4 | Product Line: Industrial Tools
Experience unmatched versatility and durability with the HC4 Series—your go-to solution for demanding hydraulic tasks.
-
Lightweight & Compact: Designed for easy transport and maneuverability.
-
High-Efficiency Structure: Gear pump + triple radial plunger pump design ensures superior efficiency, low noise, and strong self-priming capability.
-
Maintenance-Free: Brushless motor eliminates routine upkeep.
-
Convenient Controls: Includes a 5-meter wired remote handle and an onboard toggle switch for flexible operation.
-
Enhanced Safety: Built-in safety valve, external adjustable relief valve, and motor overload protector ensure reliable protection.
-
User-Friendly Design: Features an oil tank with quick-access ports (fill, vent, drain), oil level gauge, ergonomic handle, and anti-slip feet for stability.
Specifications
| Maximum Operating Pressure (bar) | 700 |
| Motor Power(KW) | 1.1 |
| Usable Oil (L) | 7 |
| Control Valve | EVL43 4Way 3Position Double Acting Solenoid Valve,With Pilot Hydraulic Check Valve,No Leakage |
| Voltage | 230/115V |
| First Stage Oil Flow Rate(L/min) | 6 |
| Second Stage Oil Flow Rate(L/min) | 0.7 |
| Weight Without Oil(Kg) | 27 |
Diagram

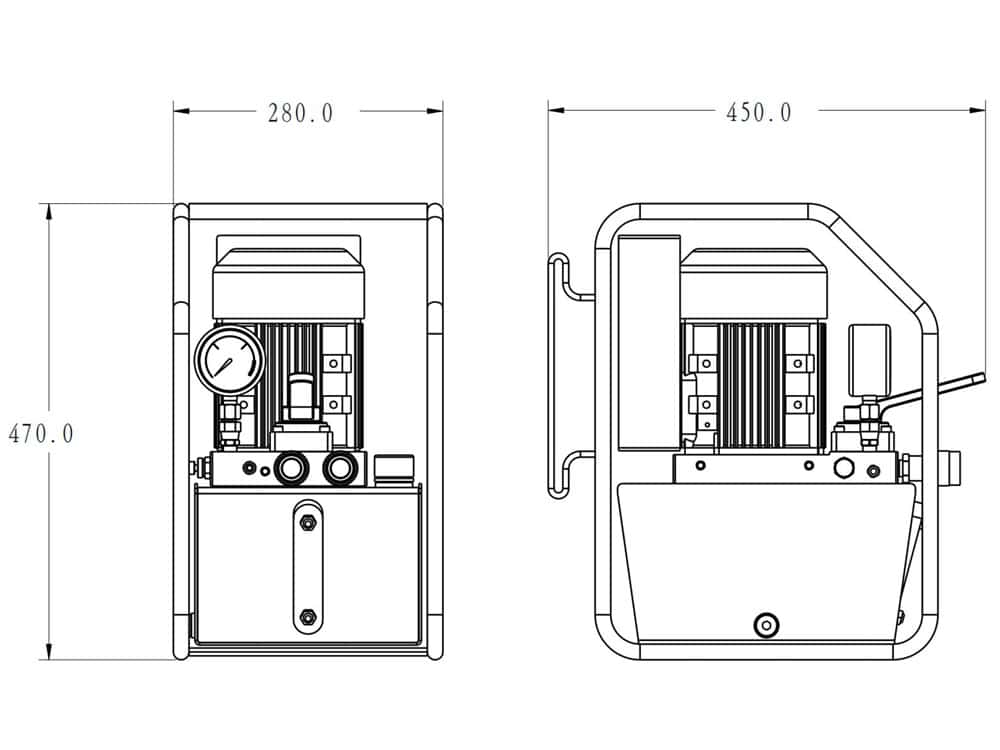

Dimensions
Pressure/Flow Rate Curve

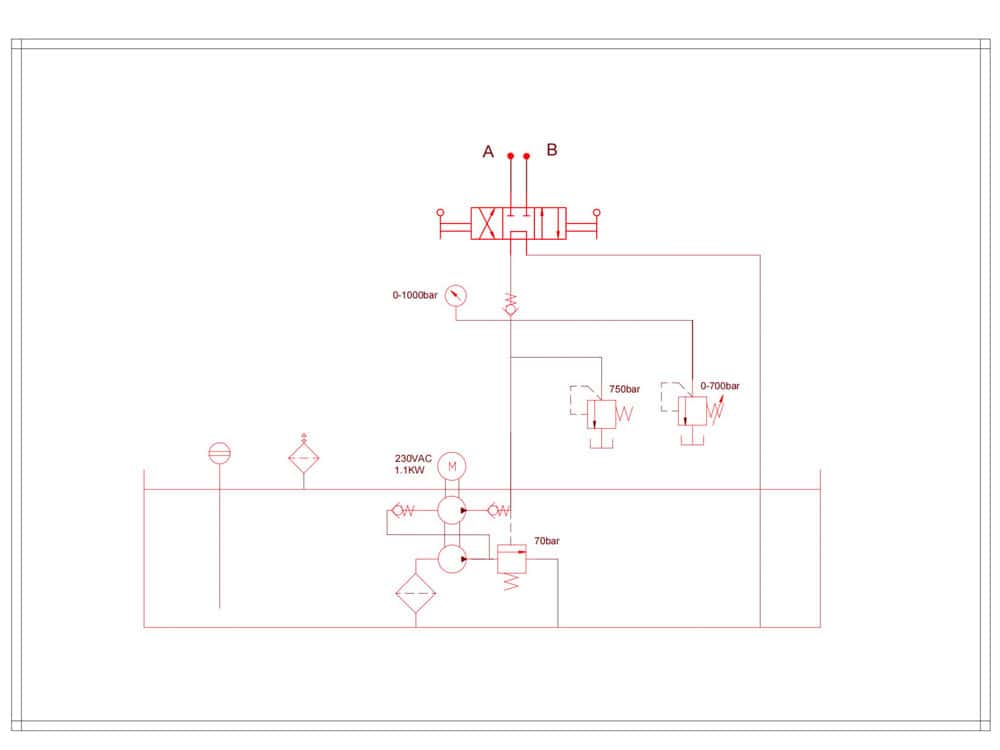

Hydraulic Diagram
Series Comparison
| Model | Max Working Pressure(Mpa) | Motor Power(KW) | Low Pressure Flow Rate(L/min) | High Pressure Flow Rate(L/min) | Voltage | Usable Oil(L) | Control Valve | Oil Outlets | Weight Without Oil(Kg) |
|---|---|---|---|---|---|---|---|---|---|
| HC4007MV43R | 70 | 1.1 | 6 | 0.7 | 230VAC | 7L | MV43 4Way 3Position Double Acting Manual Valve | Double Acting | 27 |
| HC4007MV43R-115/60 | 70 | 1.1 | 6 | 0.7 | 115VAC | 7L | MV43 4Way 3Position Double Acting Manual Valve | Double Acting | 27 |
| HC4007EVL43R | 70 | 1.1 | 6 | 0.7 | 230VAC | 7L | EVL43 4Way 3Position Double Acting Solenoid Valve,With Pilot Hydraulic Check Valve,No Leakage | Double Acting | 27 |
| HC4007EVL43R-115/60 | 70 | 1.1 | 6 | 0.7 | 115VAC | 7L | EVL43 4Way 3Position Double Acting Solenoid Valve,With Pilot Hydraulic Check Valve,No Leakage | Double Acting | 27 |
Product Illustration
- Electric Cabinet
- Motor
- Refueling and Exhaust Outlet
- Manual Directional Valve
- Oil Level Gauge
- Oil Outlet
- Quick Interface
- Pressure Regulating Valve
- Manometer
- Cable Collector
