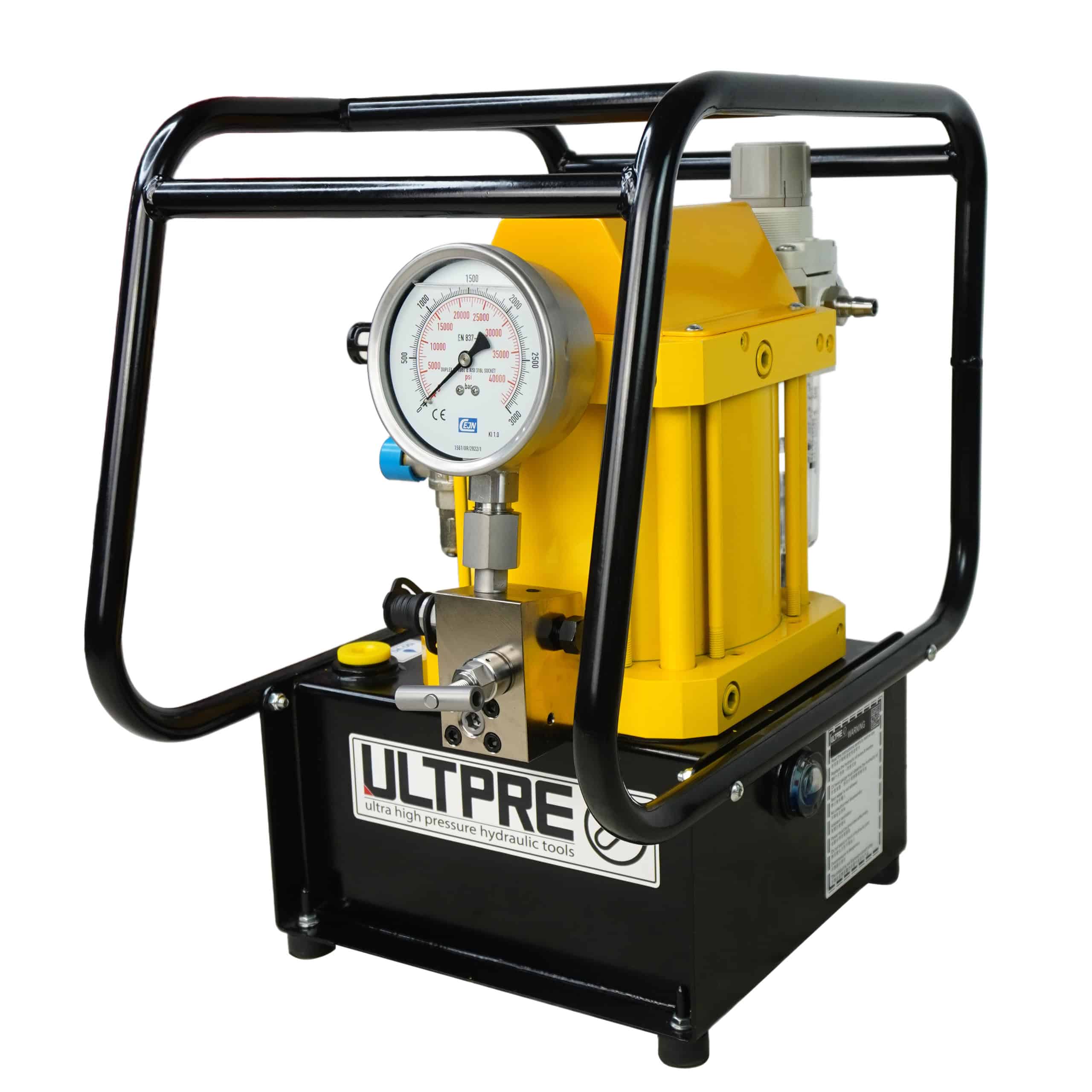

HAP1500，150MPa Pneumatic Ultra-High Pressure Hydraulic Tensioner Pump
The ULTPRE HAP is a robust pneumatic hydraulic pump designed for ultra-high pressure tensioning tasks in demanding industrial environments. Combining precision control, exceptional durability, and operator-friendly features, it delivers reliable performance for critical applications requiring safety and efficiency.
Description
Model: HAP1500 | Series: HAP | Product Line: Industrial Tools
Ideal for heavy machinery assembly, energy infrastructure, and industrial maintenance, the HAP excels in harsh conditions where precision, speed, and durability are paramount.
-
Manual Control & Safety: Ball valve for precise airflow management, manual unloading valve, and built-in safety valve prevent overpressure risks.
-
Precision Air Control: Standard air source trio unit (filter, regulator, lubricator) ensures stable hydraulic pressure output for consistent results.
-
High-Efficiency Design: Large displacement system accelerates workflow, while dual outlets enable compatibility with multiple tools or circuits.
-
Durable Construction: Full steel tank frame with 360° protection, coupled with a tilt-mounted pressure gauge for easy readability in tight spaces.
-
Leak-Free Reliability: Advanced plate-style sealing system (no hydraulic tubing) and high-performance seals (PEEK, FKM) maximize longevity and minimize maintenance.
Specifications
| Maximum Operating Pressure (bar) | 1500 |
| Pressure Boost Ratio | 250:1 |
| Displacement(mL) | 6.3 |
| Usable Oil(L) | 5 |
| Air Source Pressure(Bar) | 3-7 |
| Weight Without Oil(Kg) | 25 |
Diagram
Dimensions
Hydraulic Diagram
Series Comparison
| Model Number | Max Working Pressure | Pressure Boost Ratio | Displacement | Air Source Pressure | Usable Oil | Weight Without Oil |
|---|---|---|---|---|---|---|
| HAP1500 | 1500 bar | 250:1 | 6.3mL | 3-7bar | 5L | 25kg |
| HAP2500 | 2500 bar | 370:1 | 4.2mL | 3-7bar | 5L | 25kg |

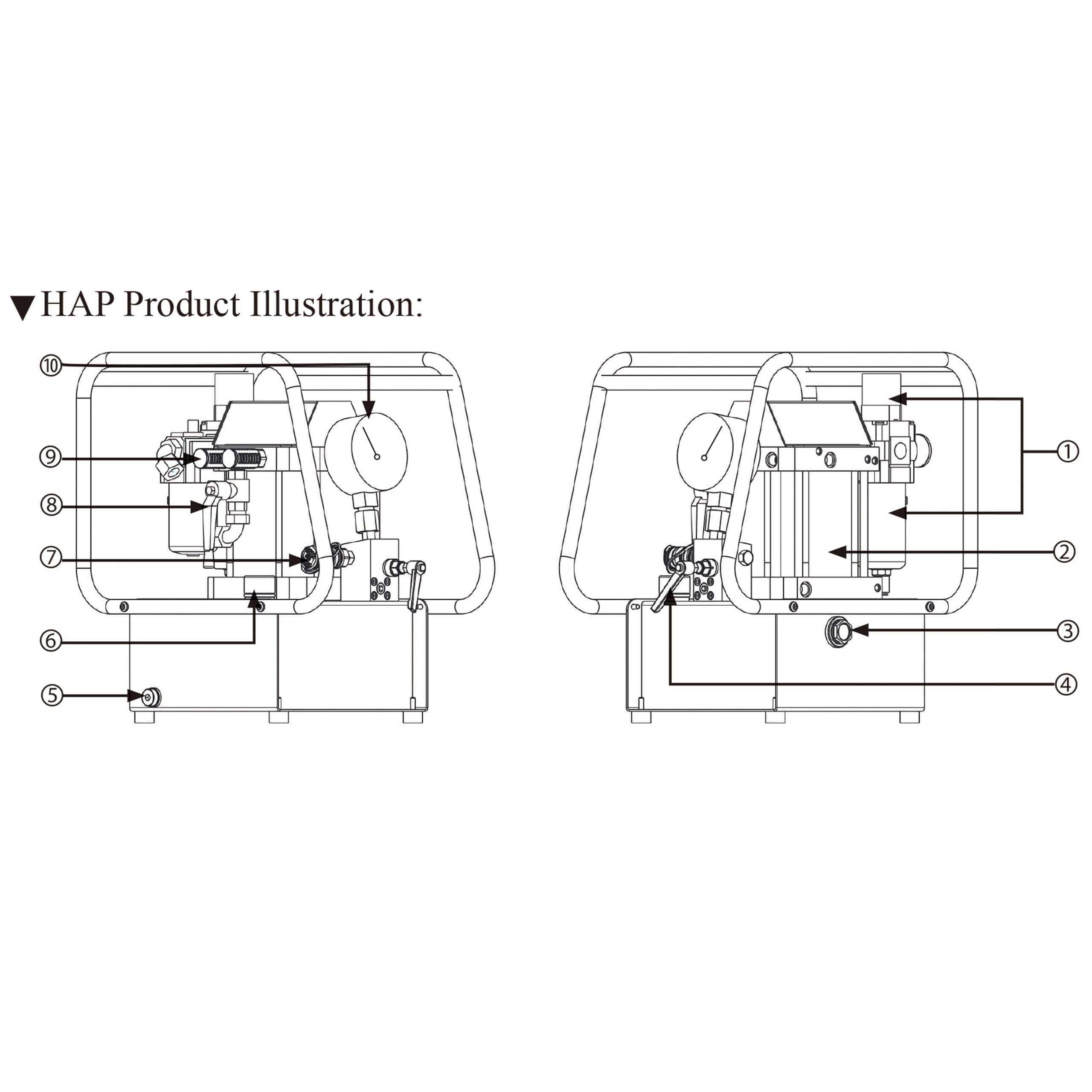

Product Illustration
- Triple piece
- Pneumatic Cylinder
- Oil Level Gauge
- Relief Valve
- Oil Release Port
- Oil Filling Exhaust Port
- Quick Connector
- Air Source Switch
- Muffler
- Pressure Gauge
