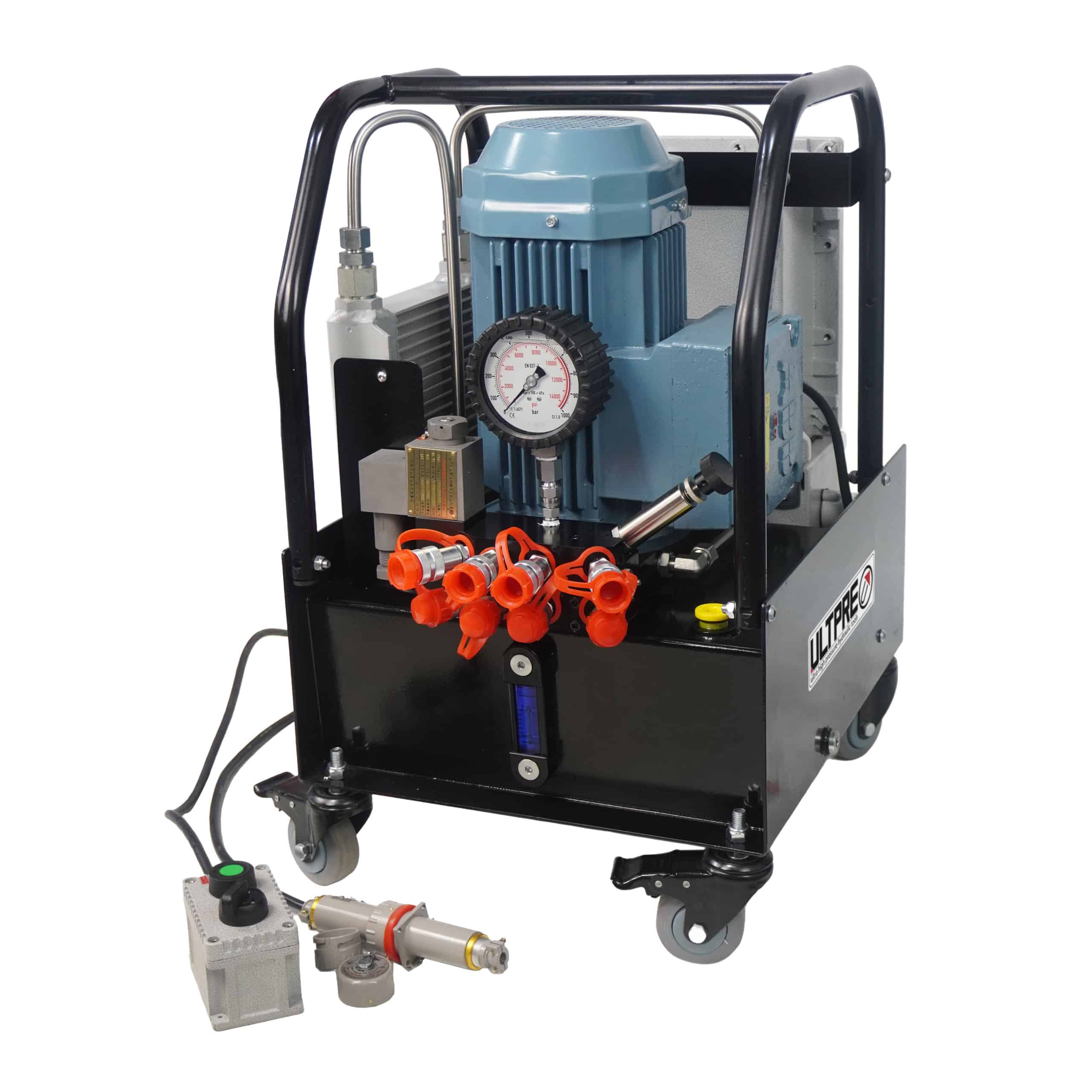

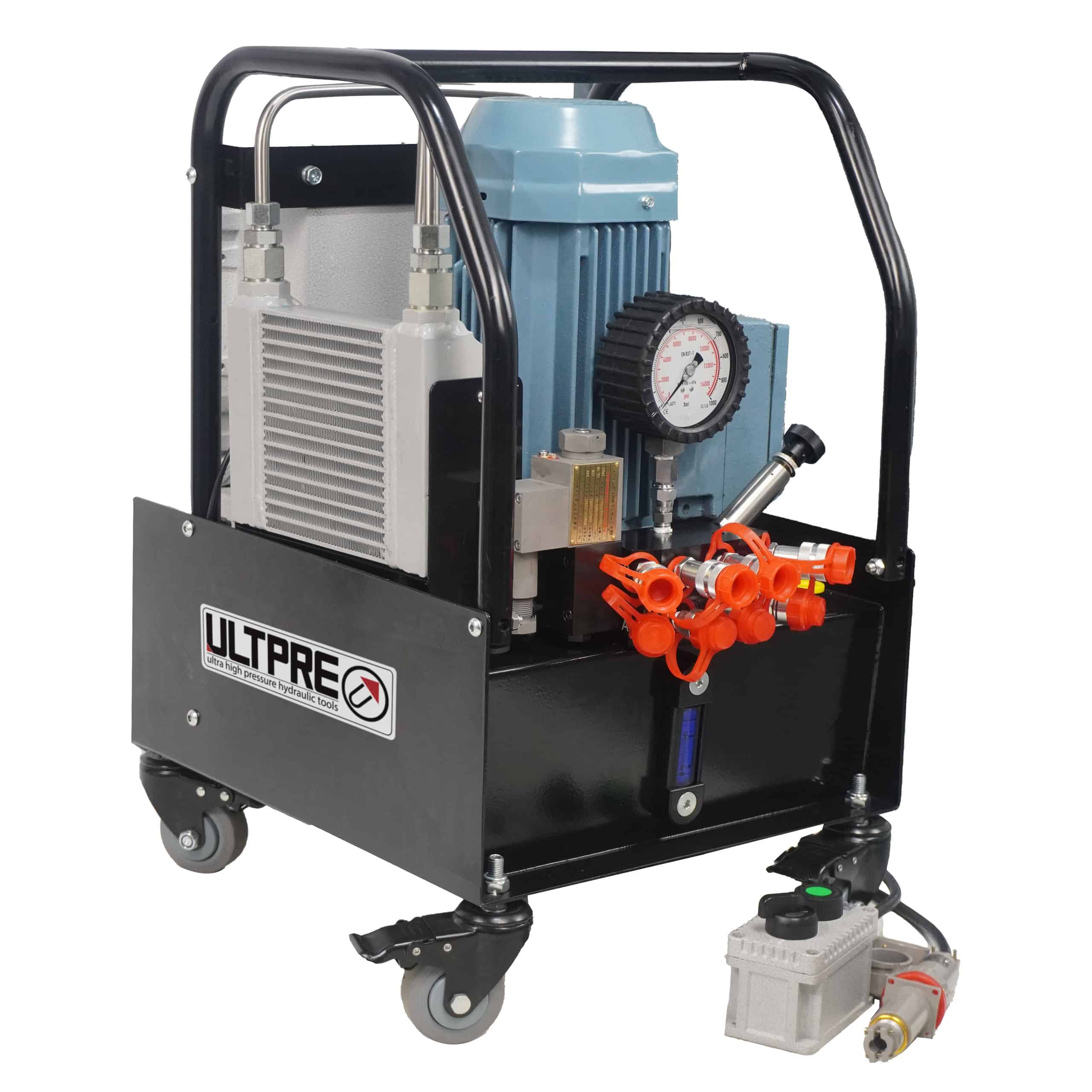

EX-HE5TW,1.5KW,20L Usable Oil,Explosion-proof Electric Hydraulic Torque Wrench Pump
The ULTPRE EX-HE5TW is a robust and reliable explosion-proof hydraulic pump designed for high-performance torque applications in hazardous environments. Certified with Exd II BT4 explosion-proof rating, it ensures maximum safety in flammable or explosive conditions.
Description
Model: EX-HE5TW | Series: EX | Product Line: Industrial Tools
Technical Specifications:
Ideal for oil & gas, petrochemical, and heavy industries, the EX-HE5TW combines cutting-edge safety, precision, and power for demanding applications.
Key Features:
-
Enhanced Safety: Equipped with an increased safety control panel, three-phase overload protector, and ABB explosion-proof motor for secure operation.
-
Premium Components: Features a German-imported directional valve and adjustable relief valve for precise, continuous pressure control.
-
Efficient Performance: Two-stage flow system delivers high efficiency, while integrated aluminum cooling ribs ensure low temperature rise.
-
Durable Design: Reinforced protective frame, lockable casters, and a 6M remote-control handle enhance portability and durability.
Specifications
| Maximum Operating Pressure (bar) | 700 |
| Motor Power(KW) | 1.5 |
| Usable Oil (L) | 20 |
| Connect Torque Wrench Number | 2 or 4 |
| Voltage | 380/220VAC |
| First Stage Oil Flow Rate(L/min) | 7 |
| Second Stage Oil Flow Rate(L/min) | 0.85 |
| Weight With Oil(Kg) | 120 |
Diagram
Dimensions
Pressure/Flow Rate Curve

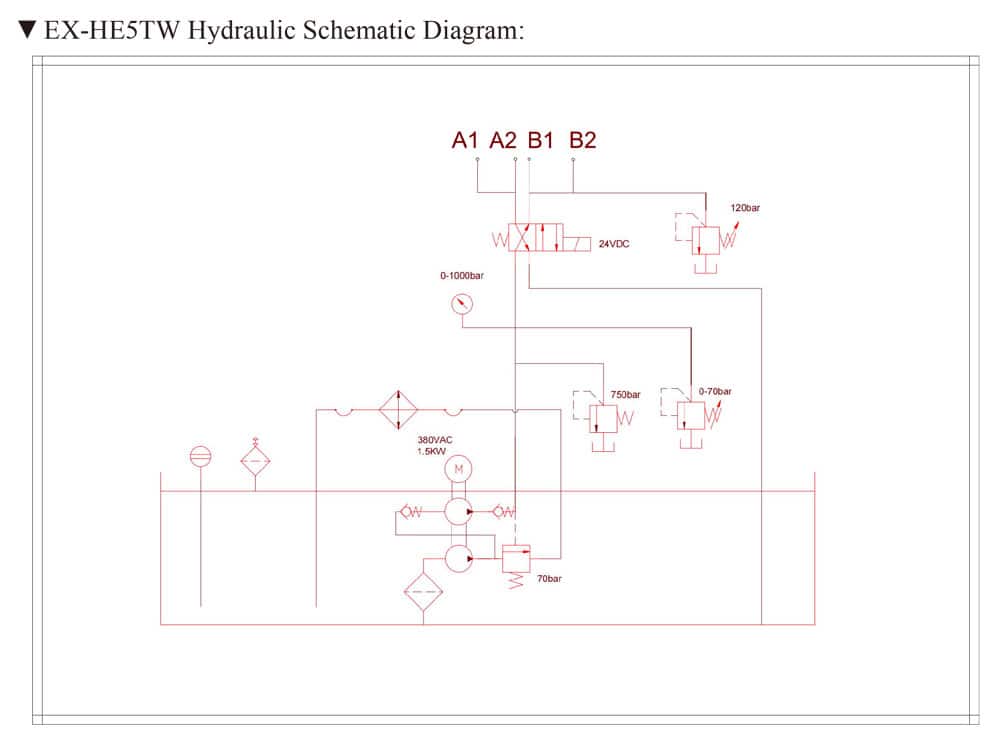

Hydraulic Diagram
Series Comparison
| Model | Max Working Pressure(Mpa) | Motor Power(KW) | Low Pressure Flow Rate(L/min) | High Pressure Flow Rate(L/min) | Voltage | Usable Oil(L) | Connect Torque Wrench Number | Weight With Oil(Kg) |
|---|---|---|---|---|---|---|---|---|
| EX-HE5TW-2 | 70 | 1.5 | 7 | 0.85 | 380/220VAC | 20L | 2 | 120 |
| EX-HE5TW-4 | 70 | 1.5 | 7 | 0.85 | 380/220VAC | 20L | 4 | 120 |
Product Illustration
- Protected Framework
- Explosion-proof Motor
- Explosion-proof Cabinet
- Pressure Adjusting Valve
- R port pressure limiting Valve
- Explosion-proof Electromagnetic Directional Valve
- Oil Release Outlet
- Oil Level Gauge
- Refueling And Exhaust Outlet
- Quick Connector
- Aluminum radiator
- Manometer
Downloads
| – | File Name | File Type |
|---|---|---|
 | EX-HE5TW Explosion-Proof Hydraulic Wrench Pumps Brochure | English |
| EX-HE5TW防爆液压扳手泵图册 | 中文 |
| EX-HE5TW Electric Wrench Pumps Instructions | English |
| EX-HE5TW电动液压扳手泵使用说明书 | 中文 |
