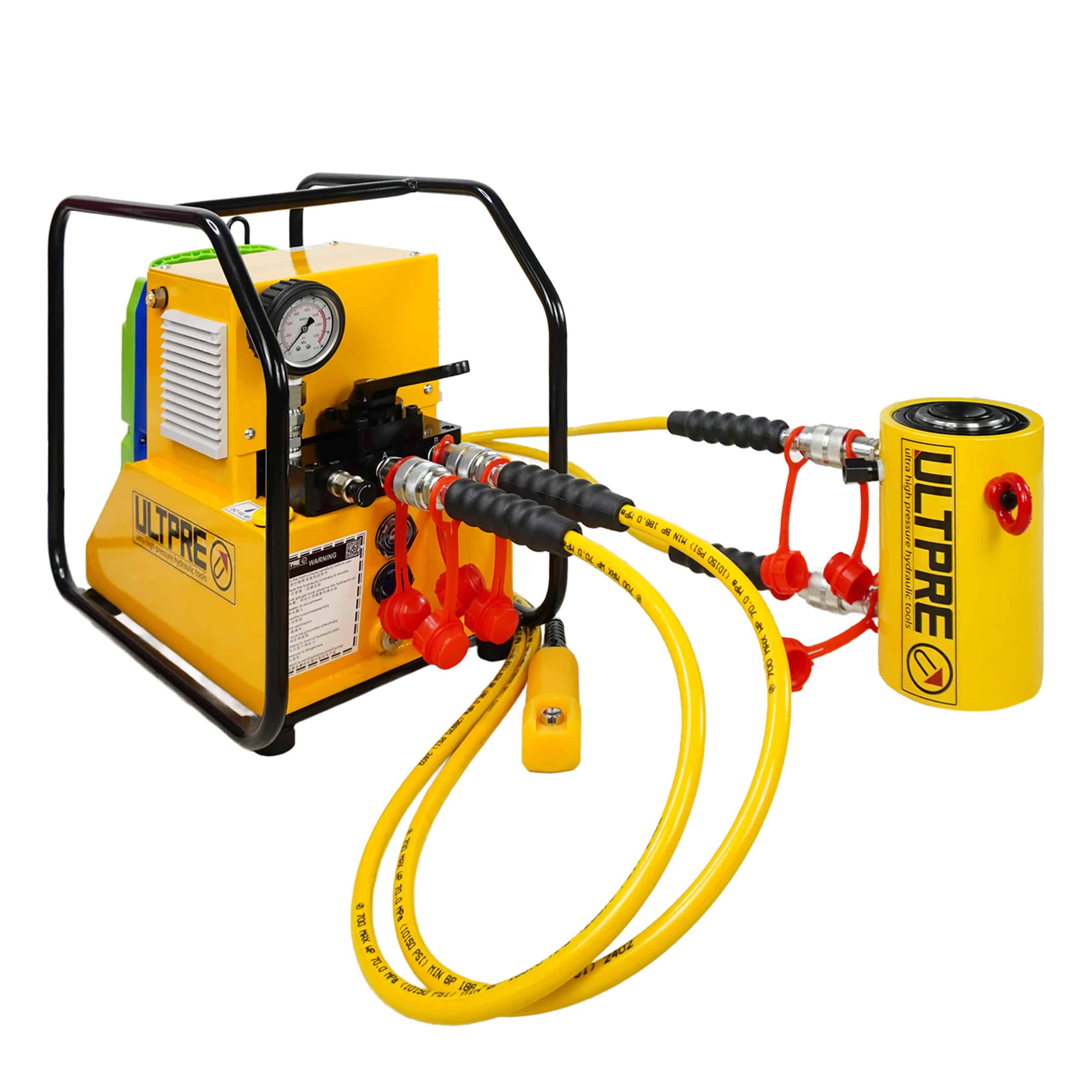

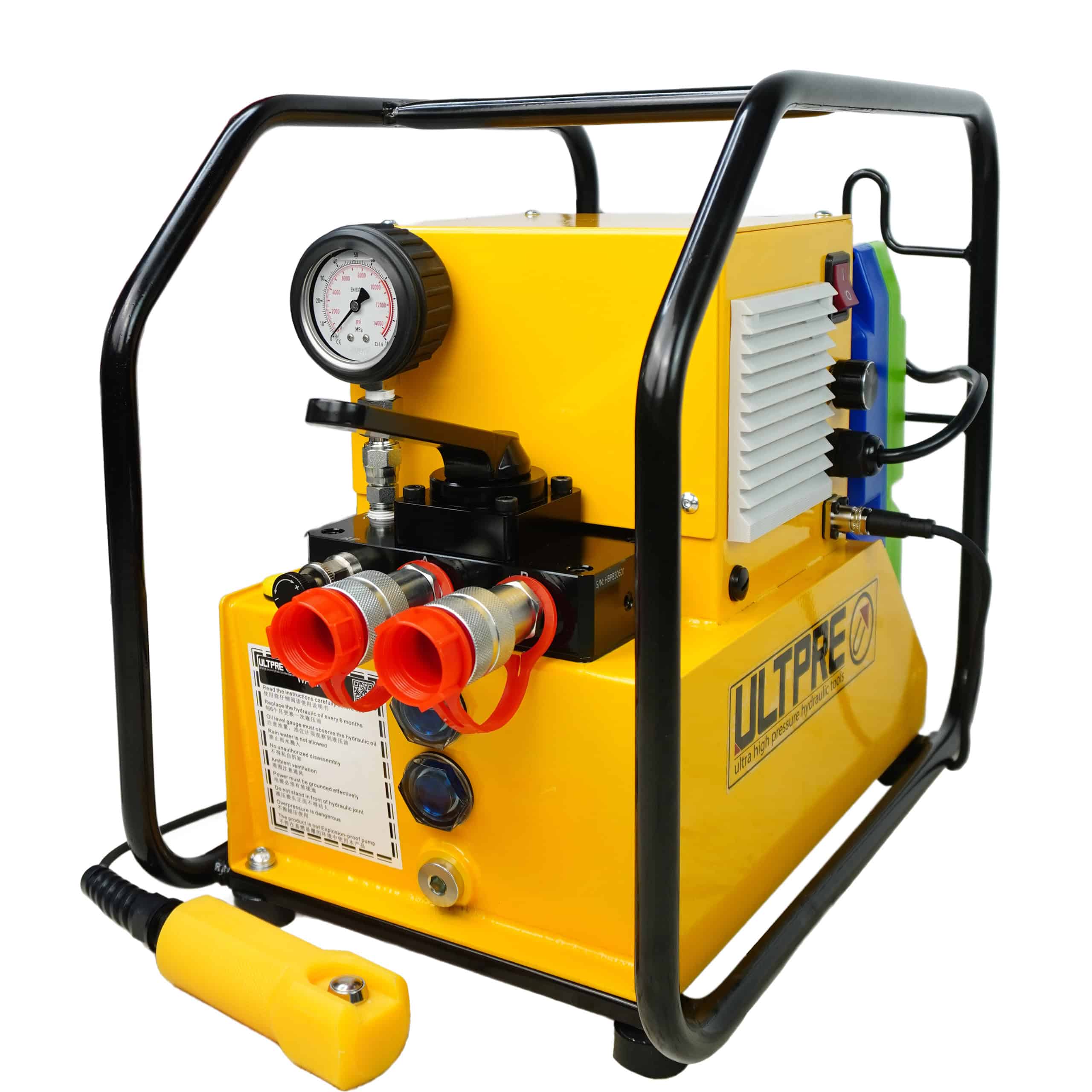

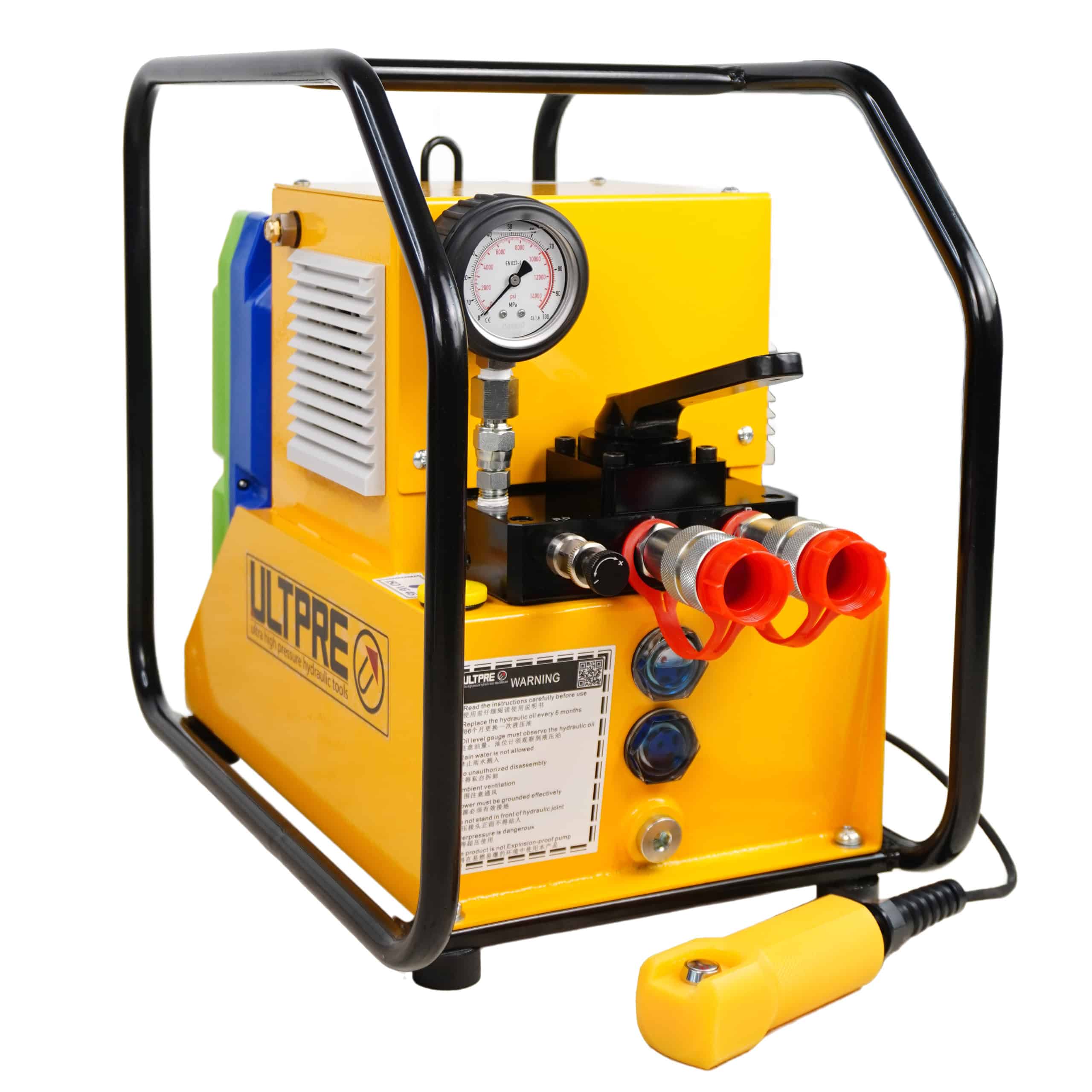

BPD700,0.75KW,5L Usable Oil,Double Acting,Battery Powered Hydraulic Pump
The ULTPRE BTW700 redefines portable bolting precision with its cordless, high-efficiency design. Engineered for freedom from power outlets, this 3-stage pump combines intelligent digital control, extended runtime, and whisper-quiet operation for critical torque applications anywhere.
Description
Model: BPD700 | Series: BPD | Product Line: Industrial Tools
Engineered for precision control of dual-circuit hydraulic cylinders, the ULTPRE BPD700 delivers cordless power and unmatched versatility in demanding industrial environments. Its robust design ensures reliable performance where outlets are inaccessible or mobility is critical.
Key Features:
-
All-Enveloping Protection: Full-wrap integrated frame with hose reel maximizes component safety and cable management.
-
Intelligent Power: 26AH lithium battery (spare compatible) provides extended runtime; fast charger minimizes downtime.
-
Whisper-Smart Operation: Servo motor maintains <75dB noise with 3-speed control (Low/Med/High) for adaptive performance.
-
Zero-Hassle Maintenance: Tool-free pressure gauge, quick-connect fittings, and equipped with electromagnetic automatic exhaust valve
-
Enhanced Control: 6M wired handle offers precise command in noisy environments.
Specifications
| Maximum Operating Pressure (bar) | 700 |
| Motor Power(KW) | 0.75 |
| Usable Oil (L) | 5 |
| Battery | 48V 26AH |
| Charger | 6V 2A |
| First Stage Oil Flow Rate(L/min) | 4.8 |
| Second Stage Oil Flow Rate(L/min) | 0.45 |
| Weight Without Oil(Kg) | 26 |
Diagram

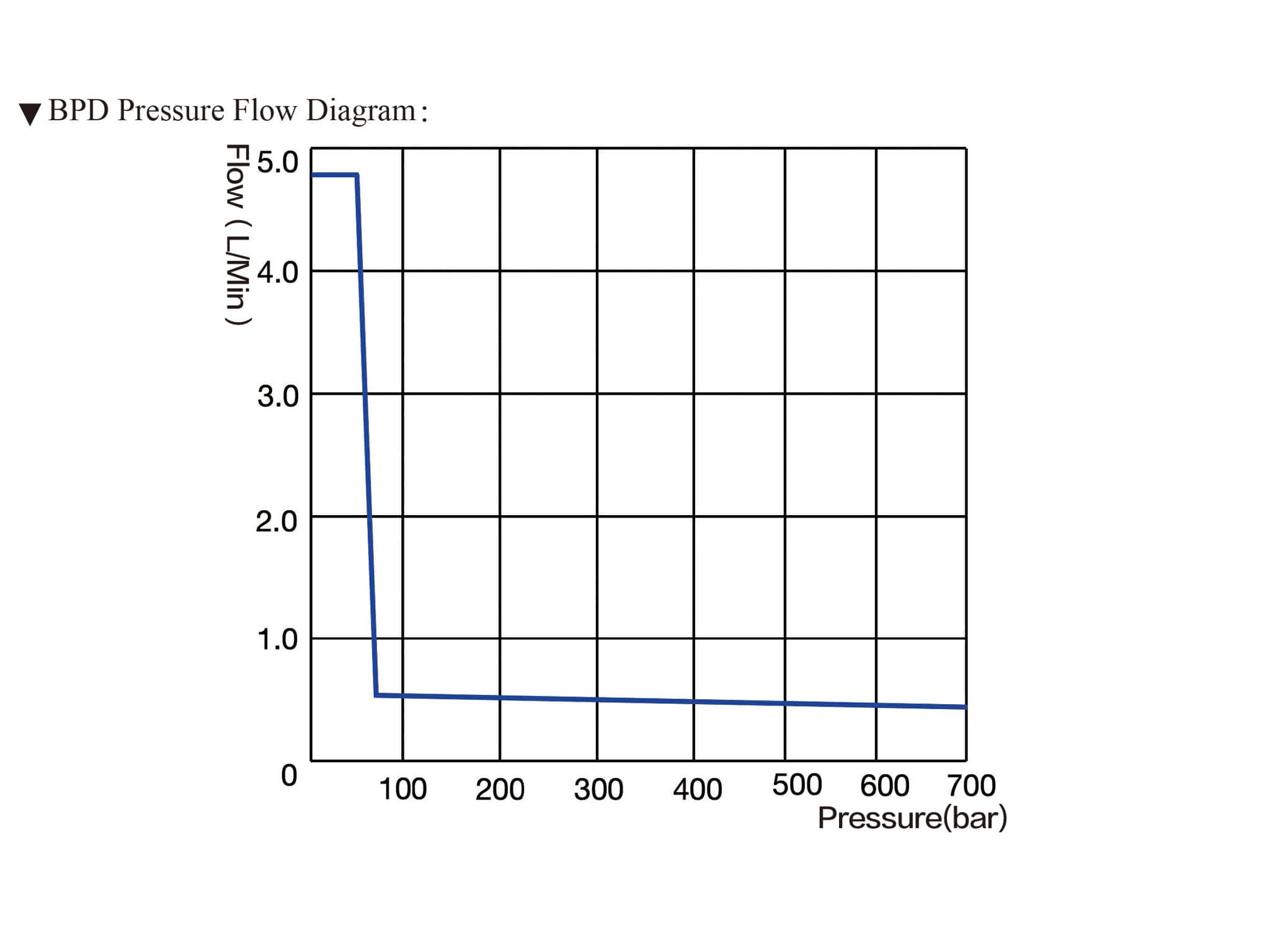

Pressure/Flow Rate Curve

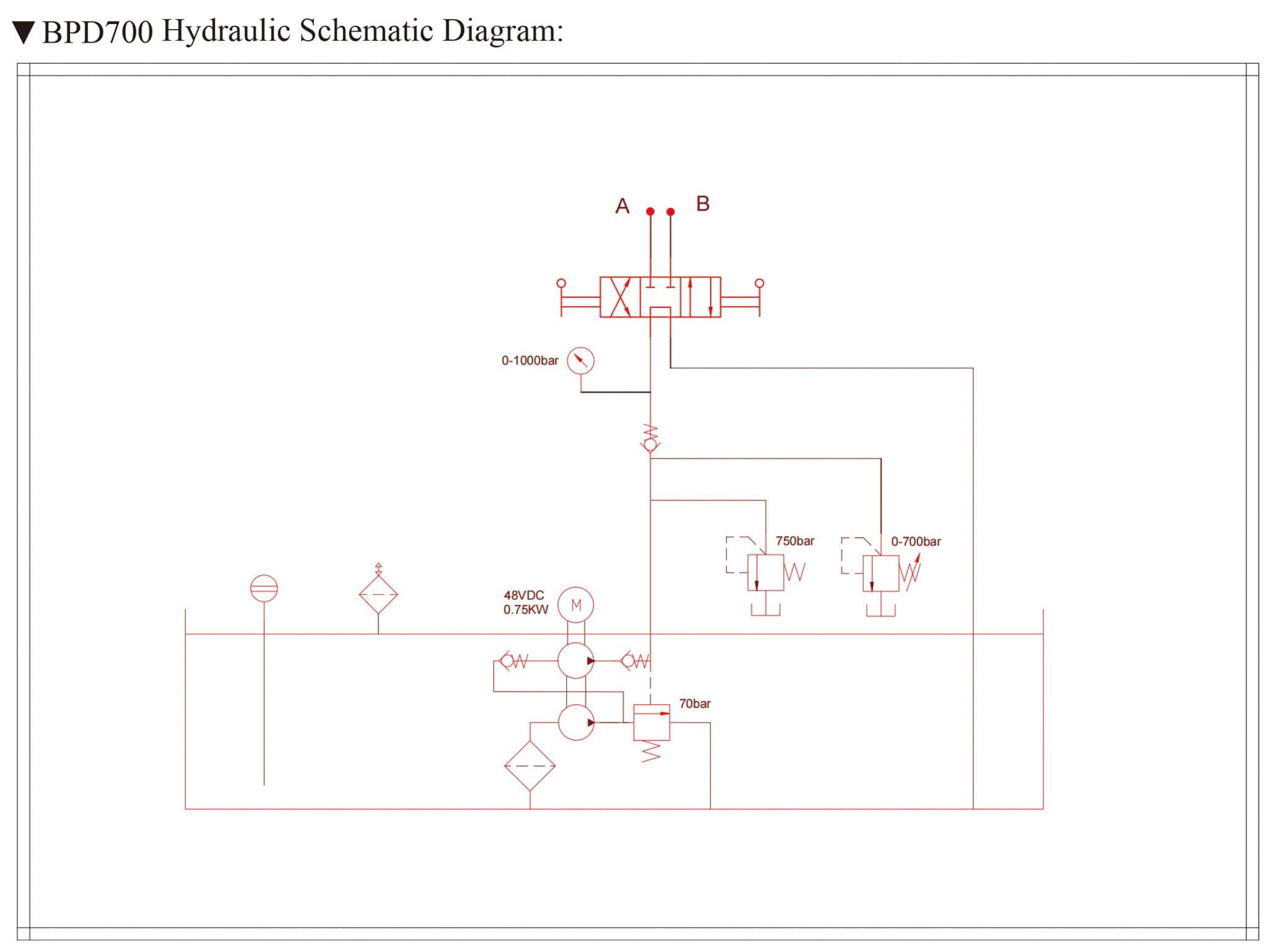

Hydraulic Diagram

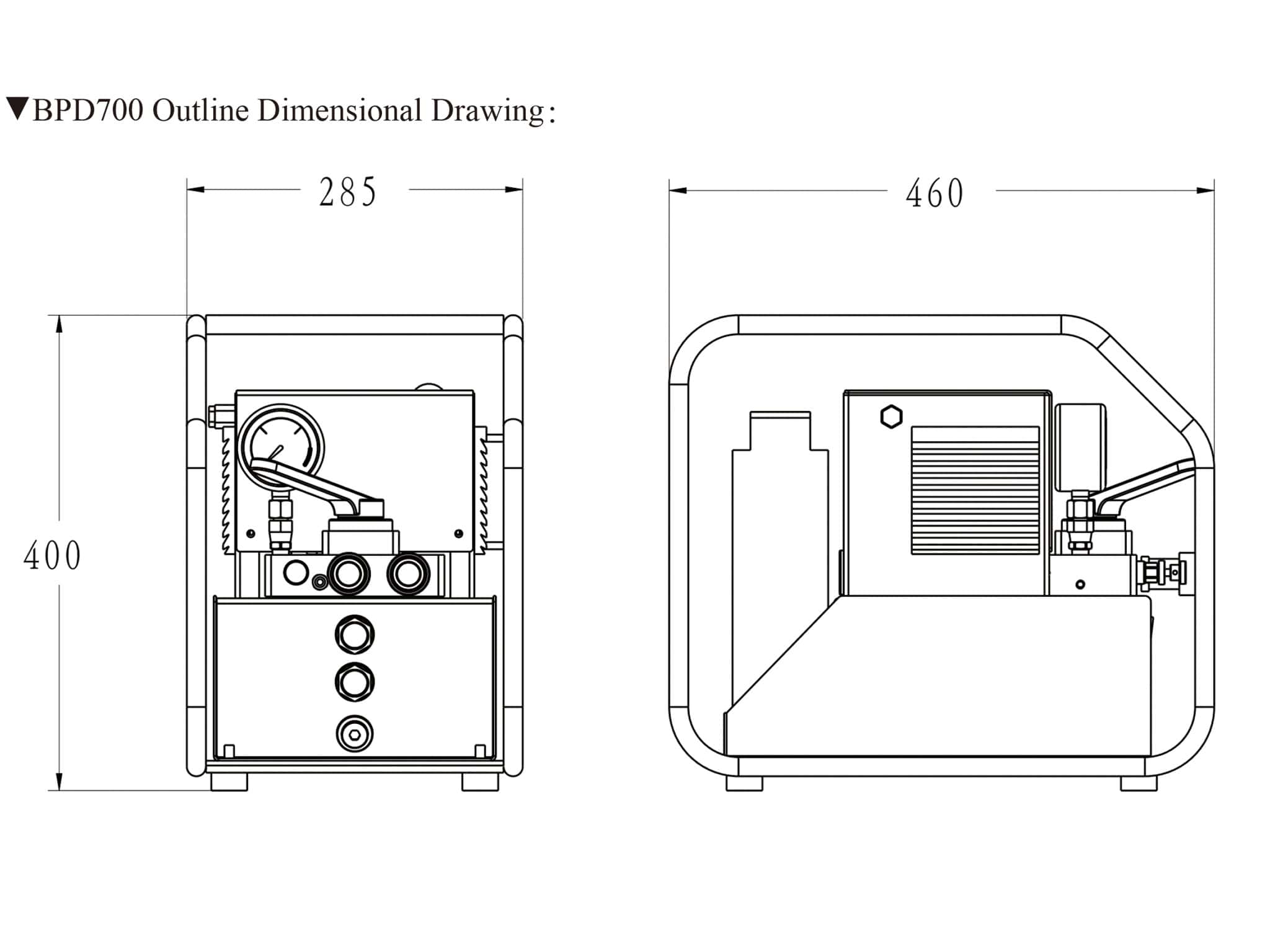

Dimensions
Product Illusions
- Protection Frame
- Battery
- Heat Dissipation Vents
- Manual Directional Valve
- Quick Connector
- Oil Level Gauge
- Oil Release Port
- Pressure Adjusting Valve
- Pressure Gauge
- Air Vent
