BEP2500,0.75KW,5L Usable Oil,250MPa Battery Driven Hydraulic Bolt Tensioner Pump
ULTPRE introduces the BEP Series, a state-of-the-art battery-powered hydraulic tensioner pump designed for ultimate portability, precision, and quiet operation. Engineered for professionals who demand reliability and efficiency in the field, the BEP Series combines innovative features with user-centric design to deliver exceptional performance without the constraints of traditional power sources.
PRICE ON REQUEST
Features
Description
Model: BEP2500 | Series: BEP | Product Line: Industrial Tools
Key Features:
-
Integrated Frame with Cable WinderAn all-in-one frame with a built-in cable winder ensures neat and convenient storage of control lines, enhancing portability and workspace organization.
-
Precision Pressure Regulating Valve with Lock FunctionEquipped with a precise pressure regulating valve that allows you to set and lock the target pressure, guaranteeing accurate and consistent results for critical applications.
-
Servo Motor for Quiet Operation (<75dB)Features a high-performance servo motor that operates at noise levels below 75dB, enabling comfortable use in noise-sensitive environments.
-
High-Capacity 26AH Lithium Battery IncludedComes standard with a large-capacity 26AH lithium-ion battery, providing extended runtime for demanding jobs. Additional batteries can be purchased separately and are supplied with a standard charger.
-
Gauge with Quick-Release & Quick-Attach CouplerThe easy-to-read pressure gauge features a quick-release/quick-attach design, eliminating the need for threading and enabling fast, tool-free installation and removal.
-
Solenoid-Operated Automatic Exhaust ValveAn automatic exhaust valve activates upon power-on, facilitating efficient air bleeding and system venting for smoother operation and enhanced performance.
-
3-Speed Motor ControlA dedicated motor speed control button offers three adjustable speed settings, allowing operators to fine-tune performance based on specific task requirements.
-
Lightweight Aluminum Fuel TankConstructed with a durable aluminum tank that reduces overall weight while providing superior heat dissipation for improved reliability and longer component life.
Applications:
Ideal for bolting, clamping, and tensioning applications in construction, manufacturing, maintenance, and repair (MRO), particularly in remote locations or sites where access to mains power is limited or impractical.
Specifications
Specifications
Maximum Operating Pressure (bar) | 2500 |
Motor Power(KW) | 0.75 |
Usable Oil (L) | 5 |
Battery | 48V 26AH |
Charger | 6V 2A |
First Stage Oil Flow Rate(L/min) | 1.5 |
Second Stage Oil Flow Rate(L/min) | 0.15 |
Oil Outlets | 2 |
Quick Couplers | CEJN 125 Series |

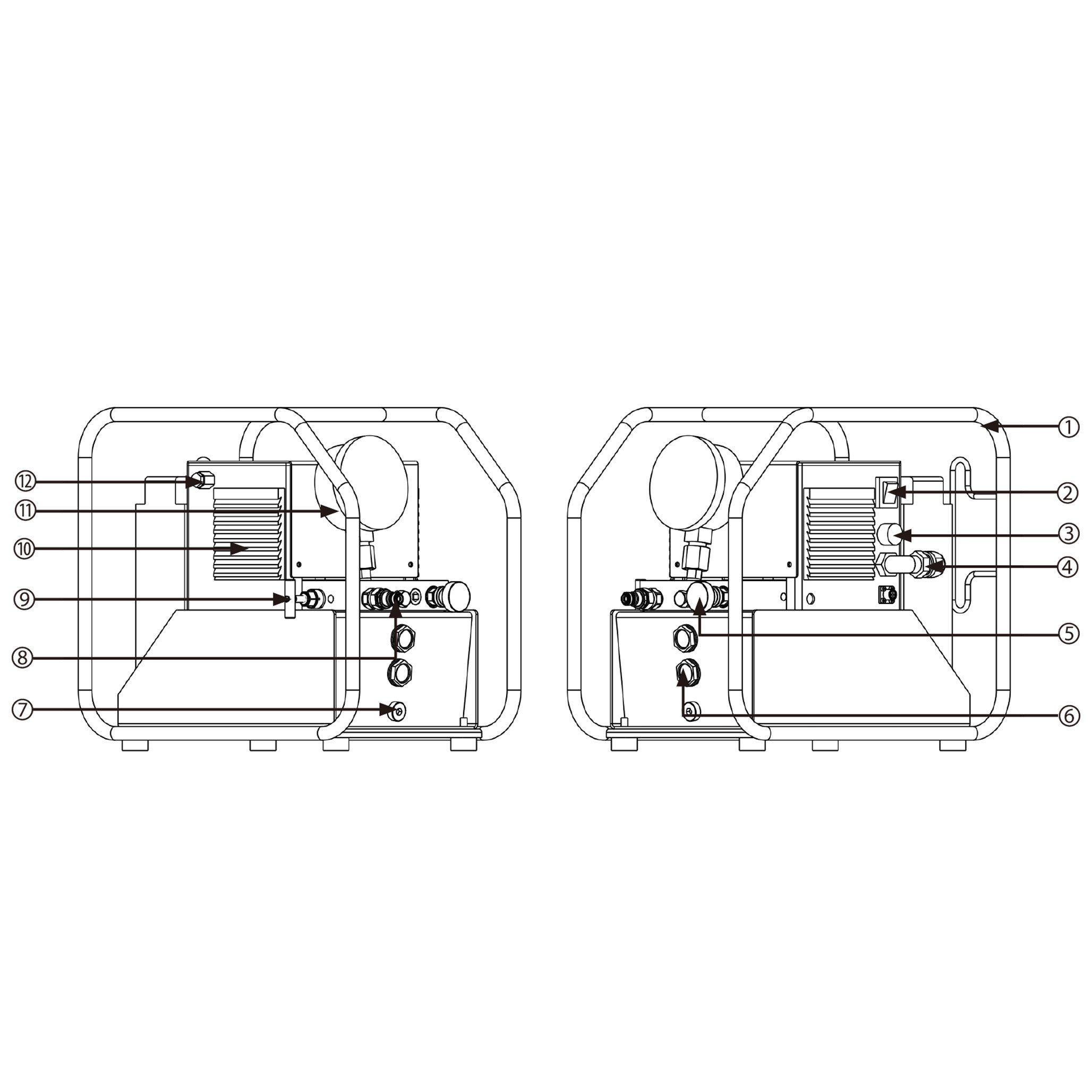

Product Illusions
- Protection Frame
- Main Power Switch
- Motor Speed Adjusting Button
- Battery Connection Cable
- Pressure Adjusting Valve
- Oil Level Gauge
- Oil Release Port
- Male Quick Couplers
- Pressure Relief Valve
- Heat Dissipation Vent
- Pressure Gauge
- Air Vent
