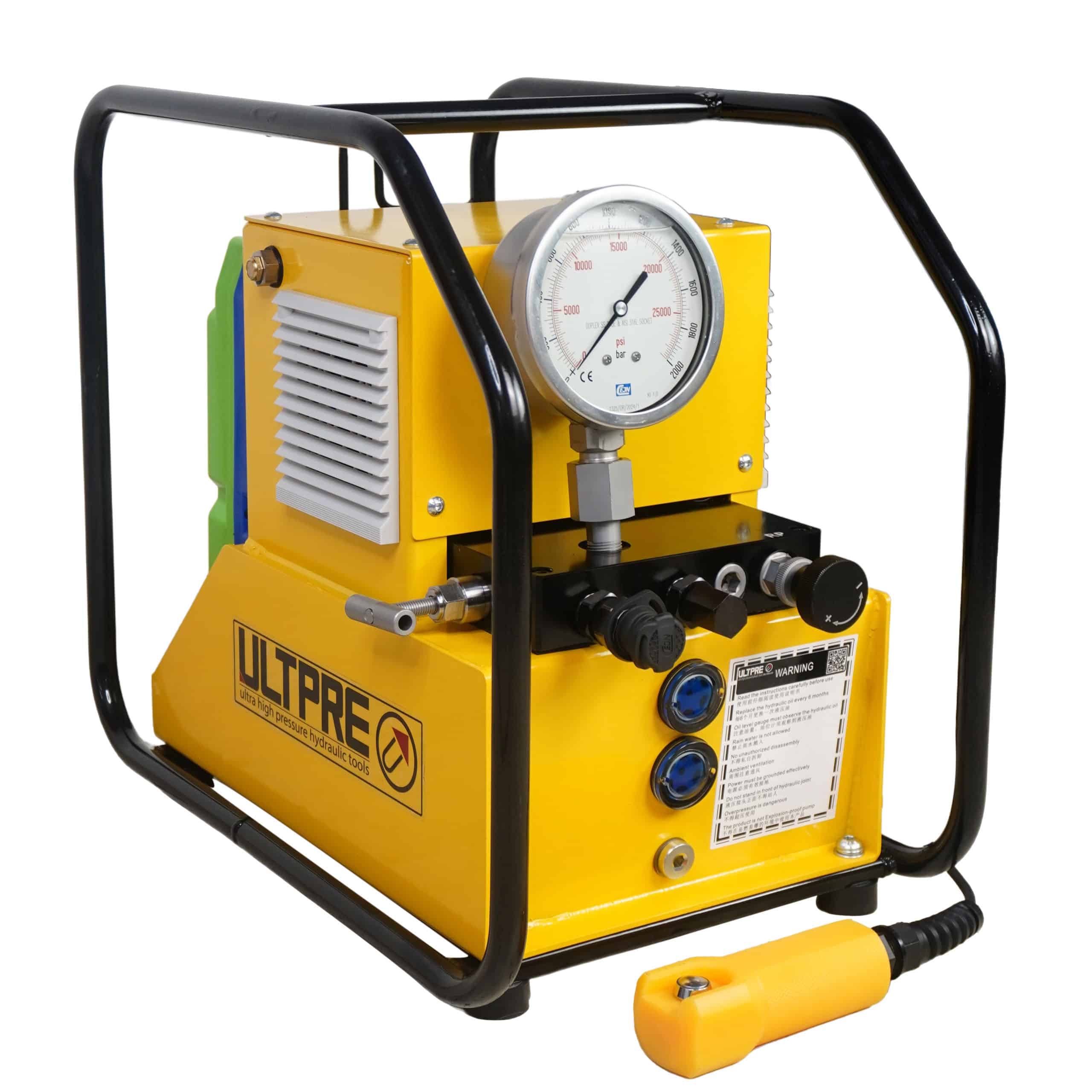

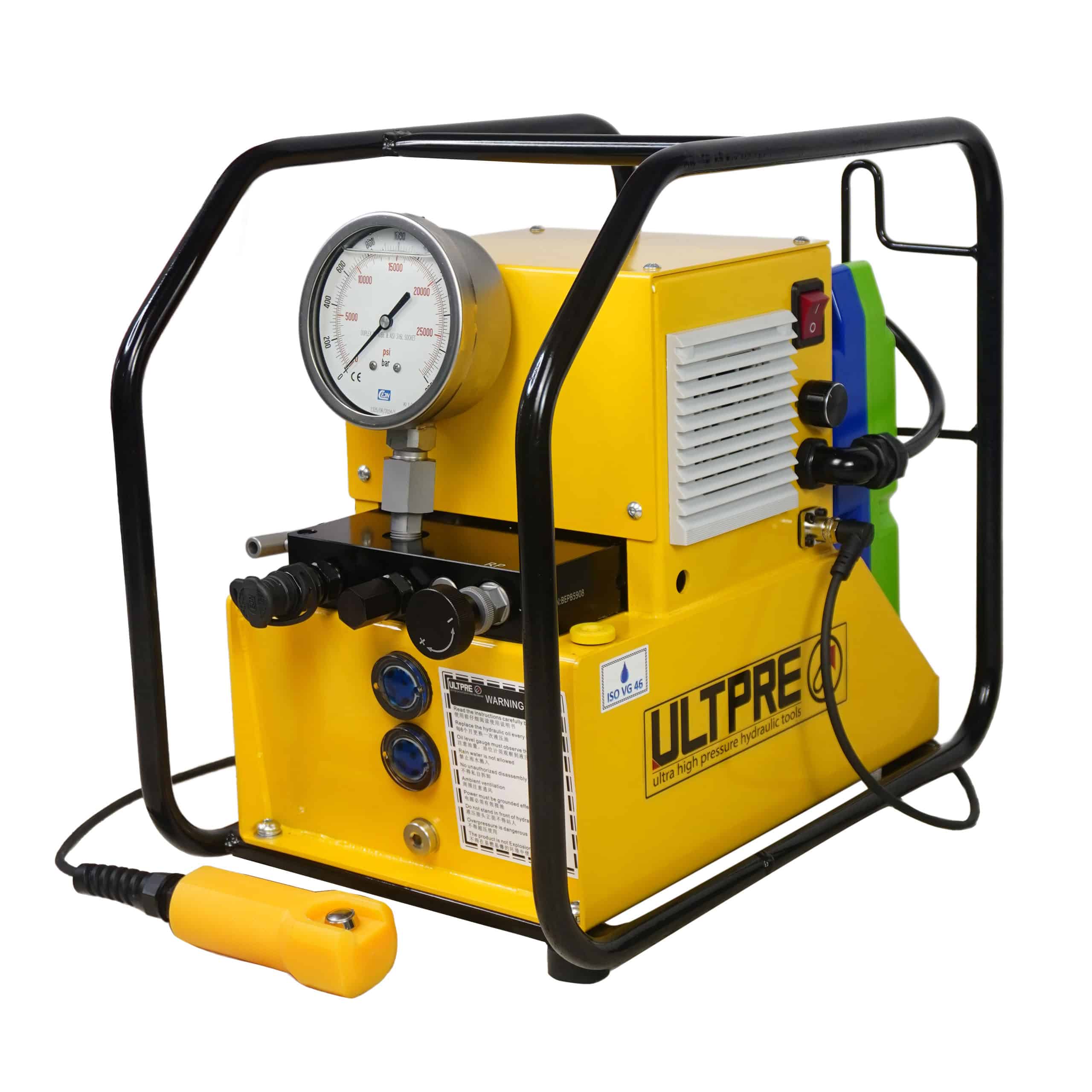

BEP1500,0.75KW,5L Usable Oil,150MPa Battery Driven Hydraulic Bolt Tensioner Pump

ULTPRE introduces the BEP Series, a state-of-the-art battery-powered hydraulic tensioner pump designed for ultimate portability, precision, and quiet operation. Engineered for professionals who demand reliability and efficiency in the field, the BEP Series combines innovative features with user-centric design to deliver exceptional performance without the constraints of traditional power sources.

PRICE ON REQUEST

Model: BEP1500 | Series: BEP | Product Line: Industrial Tools

Key Features:

  • Integrated Frame with Cable Winder
    An all-in-one frame with a built-in cable winder ensures neat and convenient storage of control lines, enhancing portability and workspace organization.

  • Precision Pressure Regulating Valve with Lock Function
    Equipped with a precise pressure regulating valve that allows you to set and lock the target pressure, guaranteeing accurate and consistent results for critical applications.

  • Servo Motor for Quiet Operation (<75dB)
    Features a high-performance servo motor that operates at noise levels below 75dB, enabling comfortable use in noise-sensitive environments.

  • High-Capacity 26AH Lithium Battery Included
    Comes standard with a large-capacity 26AH lithium-ion battery, providing extended runtime for demanding jobs. Additional batteries can be purchased separately and are supplied with a standard charger.

  • Gauge with Quick-Release & Quick-Attach Coupler
    The easy-to-read pressure gauge features a quick-release/quick-attach design, eliminating the need for threading and enabling fast, tool-free installation and removal.

  • Solenoid-Operated Automatic Exhaust Valve
    An automatic exhaust valve activates upon power-on, facilitating efficient air bleeding and system venting for smoother operation and enhanced performance.

  • 3-Speed Motor Control
    A dedicated motor speed control button offers three adjustable speed settings, allowing operators to fine-tune performance based on specific task requirements.

  • Lightweight Aluminum Fuel Tank
    Constructed with a durable aluminum tank that reduces overall weight while providing superior heat dissipation for improved reliability and longer component life.

Applications:
Ideal for bolting, clamping, and tensioning applications in construction, manufacturing, maintenance, and repair (MRO), particularly in remote locations or sites where access to mains power is limited or impractical.

Maximum Operating Pressure (bar)1500
Motor Power(KW)0.75
Usable Oil (L)5
Battery48V 26AH
Charger6V 2A
First Stage Oil Flow Rate(L/min)1.5
Second Stage Oil Flow Rate(L/min)0.25
Oil Outlets2
Quick CouplersCEJN 116 Series

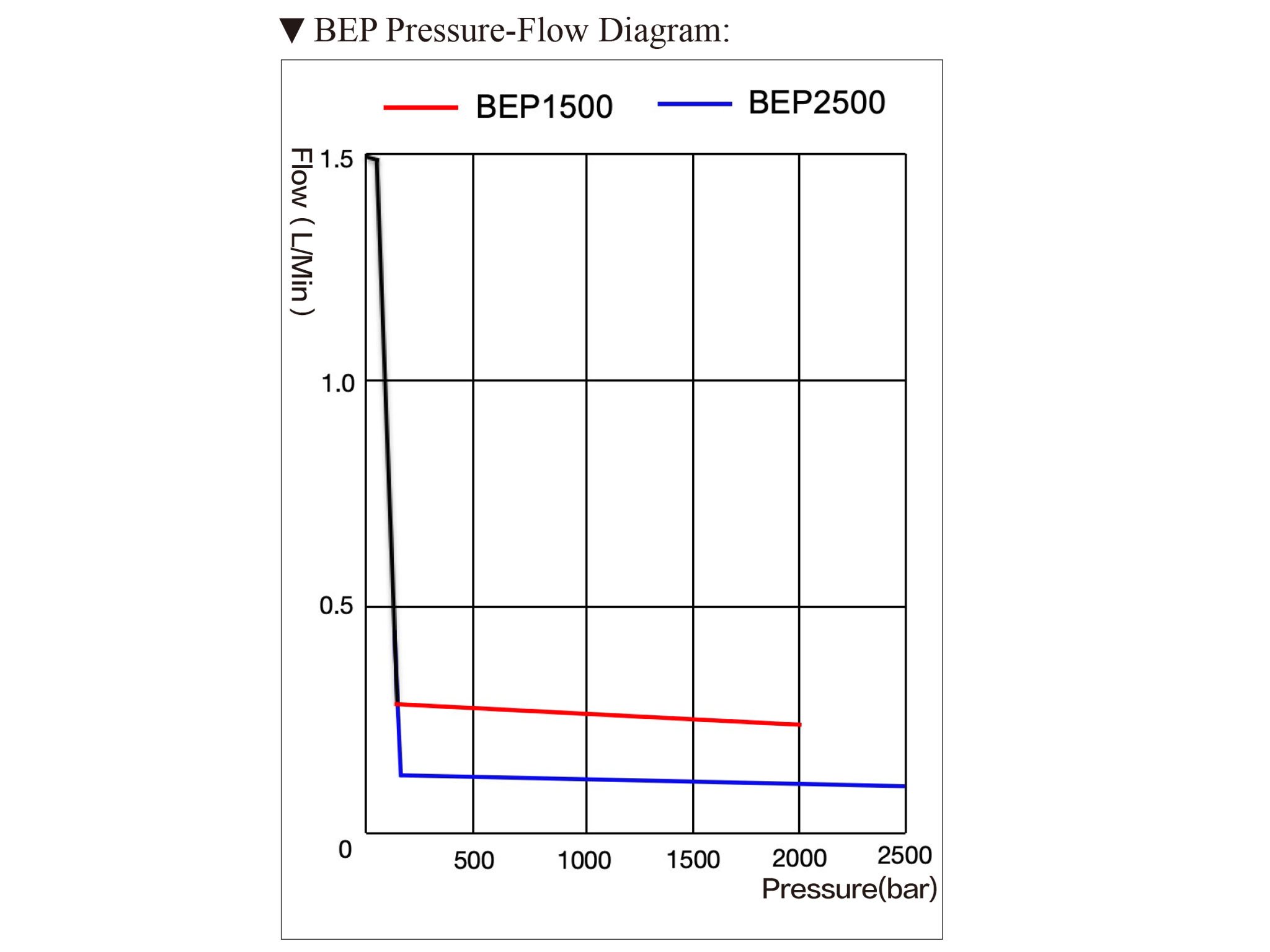

Pressure/Flow Rate Curve

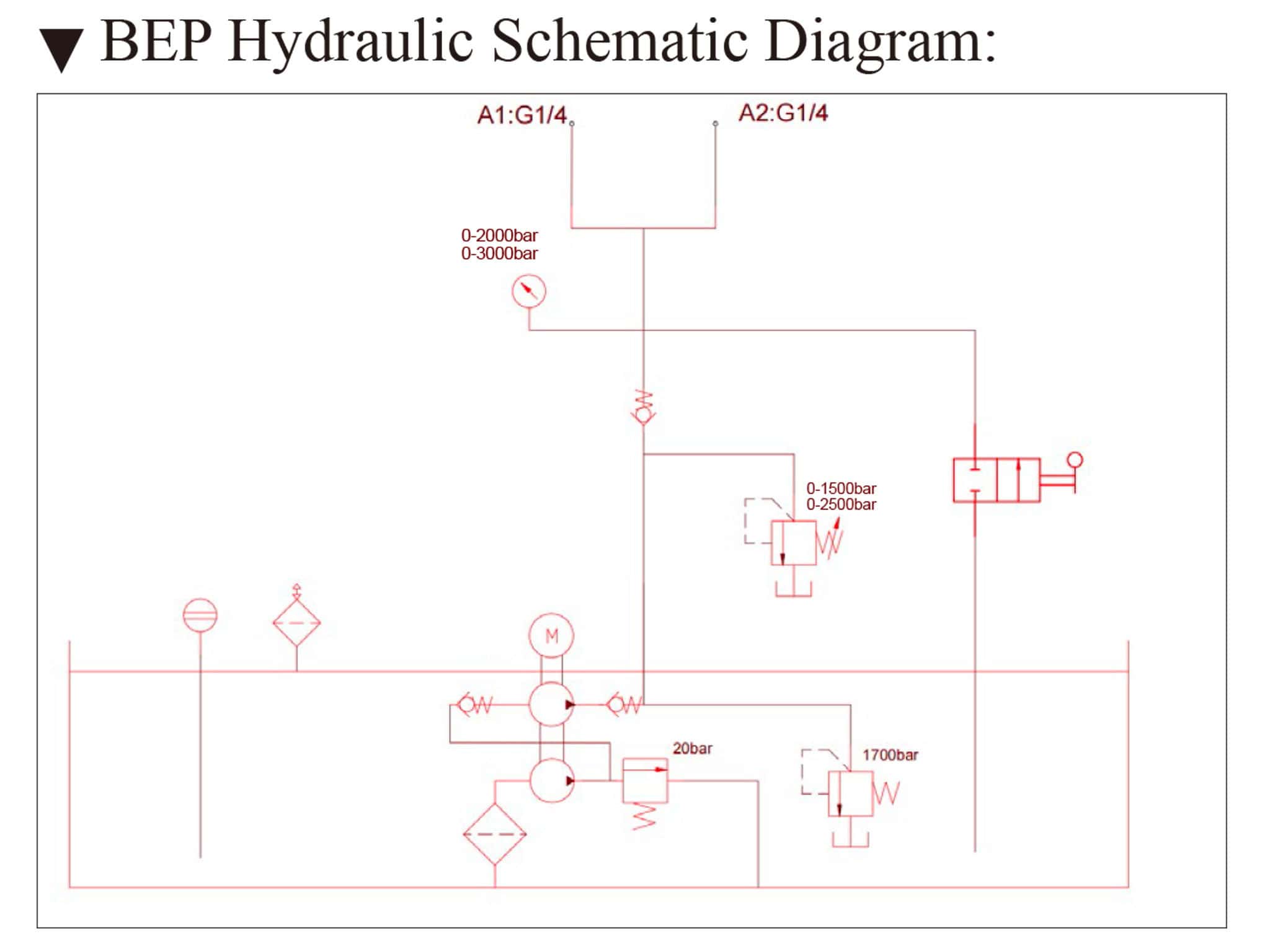

Hydraulic Diagram

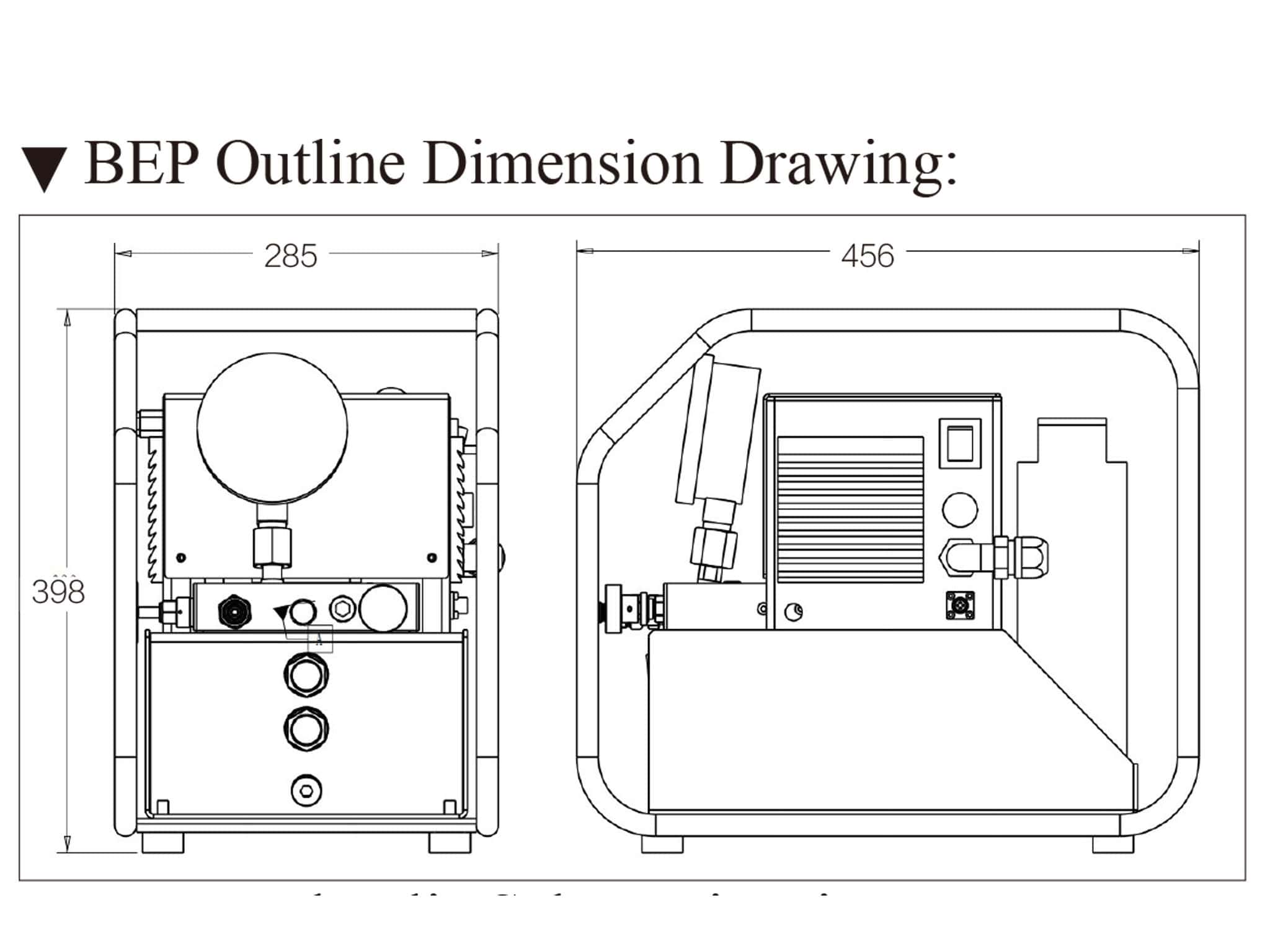

Dimensions

  • Protection Frame
  • Main Power Switch
  • Motor Speed Adjusting Button
  • Battery Connection Cable
  • Pressure Adjusting Valve
  • Oil Level Gauge
  • Oil Release Port
  • Male Quick Couplers
  • Pressure Relief Valve
  • Heat Dissipation Vent
  • Pressure Gauge
  • Air Vent
