OSC32, 32 Points, Satellite Type Synchronization Lifting System
Engineered for mega-structure construction and precision heavy-load handling, the ULTPRE OSC Series redefines synchronized lifting technology. This satellite-type system delivers millimeter-accurate control up to 128 points while enabling unparalleled flexibility in critical operations.
Description
Model: OSC32 | Series:OSC | Product Line: Industrial Tools
Key Innovations:
-
Satellite Architecture For Ultra Flexibility: Connect 16/32-point master control cabinets to satellite pump stations via power/communication cables (no long hydraulic lines). Each satellite pump can operates independently with a remote control handle when not connected to the master PLC control cabinet.
-
Intelligent Multi-Point Control: Synchronize lifting/lowering (±0.5mm accuracy) or conduct pressure-sensor weight analysis via 16-22″ touchscreen interface.
-
Massive Scalability: Combine multiple systems to control up to 128-point operations—ideal for bridge decks, industrial plants, and offshore installations.
-
Integrated Sensor Ready: Every satellite pump includes displacement/pressure sensors and storage case for rapid deployment.
-
Large Storage Space: The master control cabinet comes with a large storage container for sensor and cable storage.
-
Long-Distance Mastery: 50M standard power/communication cables (extendable to 100M) support sprawling worksites.
Specifications
| Maximum Operating Pressure (bar) | 700 |
| Points | 32 |
| Motor Power(KW) | 0.75KWX32 |
| Full Load Power(KW) | 28 |
| Full Load Electric Current(A) | 60 |
| Voltage(VAC) | 380 |
| Displacement Sensor Range(mm) | 1000 |
| Weight Including Cables(Kg) | 520 |
Frequently Purchased Together
Series Comparison
| Model | Max Working Pressure(Mpa) | Points | Motor Power(KW) | Full Load Power(KW) | Full Load Electric Current(A) | Voltage(VAC) | Displacement Sensor Range(mm) | Weight Including Cables(Kg) |
|---|---|---|---|---|---|---|---|---|
| OSC16 | 70 | 16 | 0.75KWX16 | 14 | 30 | 380 | 1000 | 335 |
| OSC32 | 70 | 32 | 0.75KWX32 | 28 | 60 | 380 | 1000 | 520 |
System Interface u0026amp; Function Introduction
Function Introduction
1. You can click any point to control
2. The pressure value, tonnage value, absolute displacement value and relative displacement value of each point are displayed in real time
3. Manually input the X, Y coordinate values of each control point
4. Manual control: manual lifting / manual lowering
5. Pre-lifting: set the low pressure, and the cylinder will automatically stop when it reaches the set pressure value after starting, effectively contacting the load without moving the load
6. Automatic control: after setting the target position, automatically perform synchronous lifting / synchronous lowering
7. Weighing analysis: total tonnage calculation, automatic center of gravity analysis
8. Other functions: pressure, displacement signal loss alarm, overpressure alarm, stroke tolerance alarm, etc.
System Packing List
OSC16:
OSC-32 Control Cabinet X 1PC
OSC-3030EVB43R Pump Station X 32PCS
OSC-PC-50 Power Cables X 32PCS
OSC-SC-50 Communication Cable X 32PCS

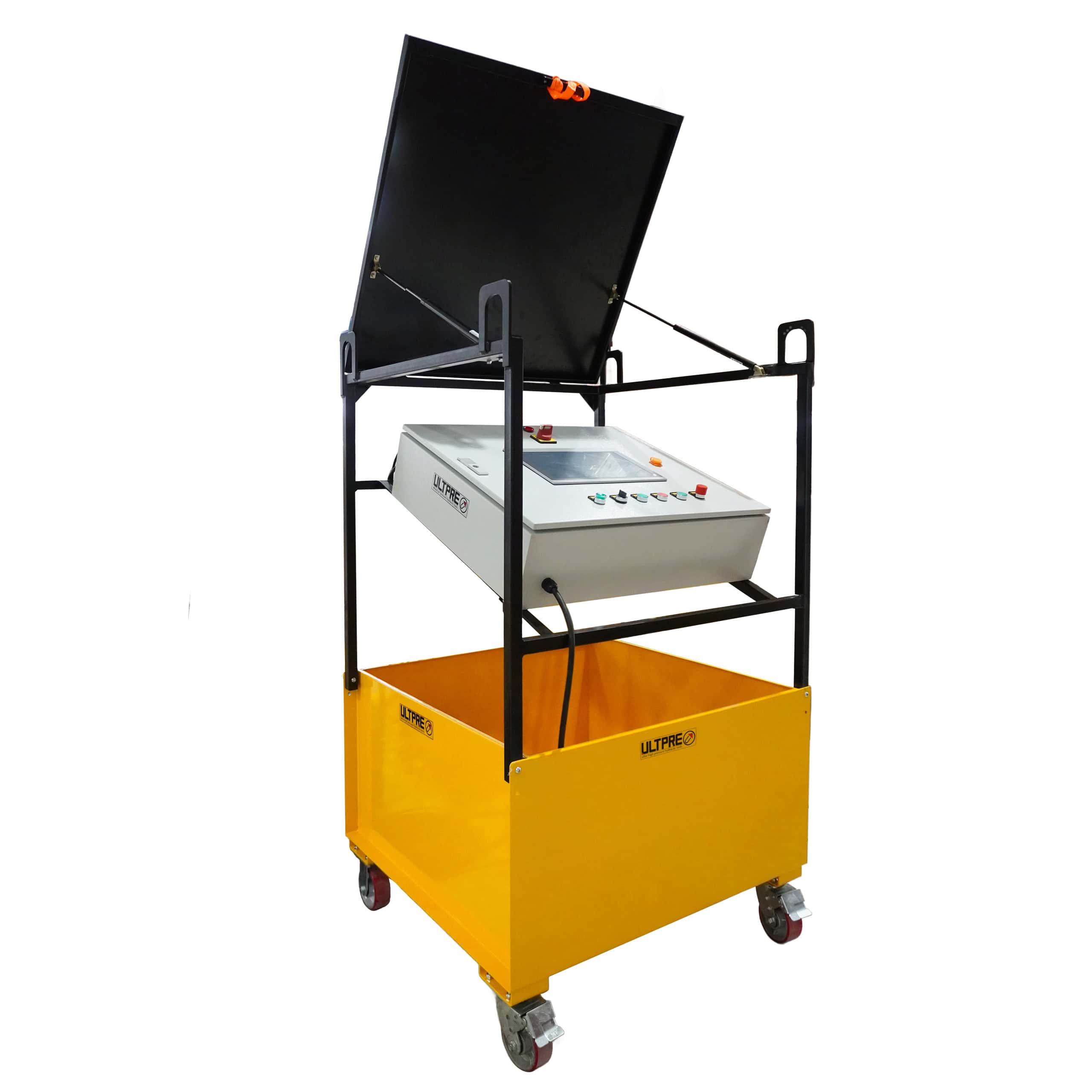

Dimensions u0026amp; Product Illusion
- Protection Cover
- 16 Inch Touch Screen
- Cabinet
- Cable Storage Container
- Lockable Wheels
- Communication Cable Plug
- Power Cable Plug
