NEP1500,150Mpa Electric Ultra-High Pressure Hydraulic Tensioner Pump
The ULTPRE NEP is a precision-engineered electric hydraulic pump designed for ultra-high pressure tensioning tasks in critical industrial applications. Combining advanced technology with robust safety features, it delivers exceptional accuracy, durability, and ease of operation for demanding environments.
Description
Model: NEP1500 | Series: NEP | Product Line: Industrial Tools
Ideal for aerospace, energy infrastructure, and heavy equipment assembly, the NEP excels in applications demanding pinpoint precision, safety, and industrial-grade resilience.
-
Brushless Motor: Maintenance-free operation with low noise (75dB) and long-lasting reliability.
-
Ultra-Precise Control: Adjustable relief valve and ±2MPa pressure accuracy ensure consistent, repeatable results.
-
High-Pressure Versatility: Achieve 150-250MPa max pressure to handle a wide range of tensioning requirements.
-
Full Protection: 100% protective frame safeguards critical components in rugged worksites.
-
Safety-First Design: 24VDC control buttons and CEJN-certified gauges/interfaces prioritize operator safety and compliance.
-
Global Compatibility: Dual voltage options (230VAC/50Hz or 115VAC/60Hz) adapt to regional power standards.
-
User-Friendly Convenience: Integrated cable reel simplifies storage, while ergonomic controls streamline operation.
Specifications
| Maximum Operating Pressure (bar) | 1500 |
| Motor Power(KW) | 1.1 |
| Usable Oil (L) | 7 |
| First Stage Oil Flow Rate(L/min) | 2.5 |
| Second Stage Oil Flow Rate(L/min) | 0.3 |
| Quick Connector | CEJN 116 |
| Pressure Gauge Measuring Range(MPa) | 200 |
| Weight Without Oil(Kg) | 36 |
Diagram
Dimensions

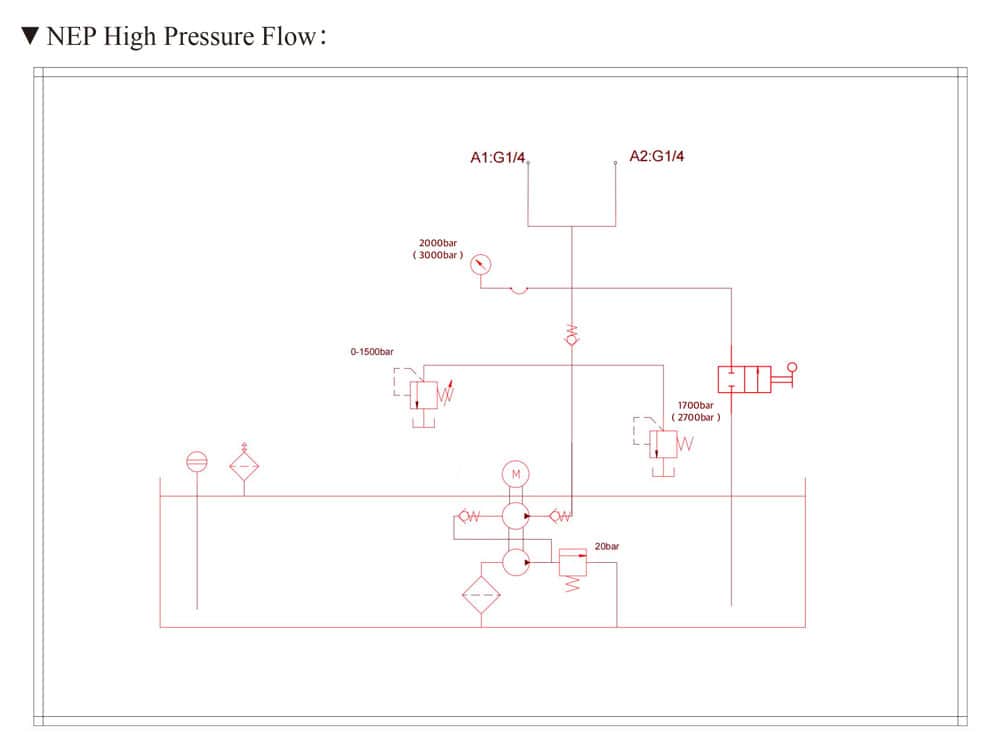

Hydraulic Diagram
Pressure/Flow Rate Curve
Series Comparison
| Model Number | Max Working Pressure | Motor Power | Low Pressure Flow Rate | High Pressure Flow Rate | Usable Oil | Quick Connector | Weight Without Oil |
|---|---|---|---|---|---|---|---|
| NEP1500 | 1500bar | 1.1KW | 2.5L/Min | 0.3L/Min | 7L | CEJN 116 | 36kg |
| NEP2500 | 2500bar | 1.1KW | 2.5L/Min | 0.2L/Min | 7L | CEJN 125 | 36kg |
Product Illustration
- Cabinet
- Motor
- Refueling And Exhaust Outlet
- Pressure Adjusting Valve
- Quick Connectors
- Oil Release Port
- Oil Level Gauge
- Relief Valve
- Cable Winder
- Pressure Gauge
Downloads
| – | File Name | File Type |
|---|---|---|
 | NEP electric ultra-high pressure pumps Brochure | English |
| NEP电动超高压泵图册 | 中文 |
| NEP Electric Ultra-High Pressure Pumps Instructions | English |
| NEP电动超高压泵使用说明书 | 中文 |
