HT4TW, 1.1KW, Economic Type Three Stage Electric Hydraulic Torque Wrench Pump
The ULTPRE HTTW delivers professional-grade torque performance at an economical value, engineered for efficient bolting operations in workshops and industrial maintenance. Combining essential smart features with rugged simplicity, it maximizes productivity without compromising reliability.
Description
Model: HT4TW | Series: HTTW | Product Line: Industrial Tools
Ideal for equipment repair, construction sites, and production line maintenance, the HTTW redefines value-driven hydraulic solutions with its no-fuss durability and essential automation.
Key Features:
-
Cost-Effective Power: Maintenance-free brushless motor ensures quiet operation and long service life.
-
Space-Smart Design: Integrated frame with built-in hose reel keeps workspaces organized and tangle-free.
-
Instant Maintenance: Tool-free pressure gauge installation/removal minimizes downtime.
-
Dual-Tool Efficiency: Standard dual-output ports enable simultaneous operation of two hydraulic torque wrenches.
-
Auto-Purge Precision: Electromagnetic bleed valve automatically vents air upon startup for consistent, instant performance.
Specifications
| Maximum Operating Pressure (bar) | 700 |
| Motor Power(KW) | 1.1 |
| Usable Oil (L) | 7 |
| Voltage | 230V 50HZ |
| Connect Torque Wrench Number | 2 |
| Low Pressure Oil Flow Rate(L/min) | 6 |
| Middle Pressure Oil Flow Rate(L/min) | 1.5 |
| High Pressure Oil Flow Rate(L/min) | 0.7 |
| Weight Without Oil(Kg) | 30 |
Diagram
Dimensions
Pressure/Flow Rate Curve
Hydraulic Diagram
Series Comparison
| Model | Max Working Pressure(Mpa) | Motor Power(KW) | Low Pressure Oil Flow Rate(L/min) | Middle Pressure Oil Flow Rate(L/min) | High Pressure Oil Flow Rate(L/min) | Voltage | Usable Oil(L) | Connect Torque Wrench Number | Weight Without Oil(Kg) |
|---|---|---|---|---|---|---|---|---|---|
| HT4TW | 70 | 1.1 | 6 | 1.5 | 0.7 | 230V 50HZ | 7 | 2 | 30 |
| HT4TW-115/60 | 70 | 1.1 | 6 | 1.5 | 0.7 | 115V 60HZ | 7 | 2 | 30 |
| HT5TW | 70 | 1.5 | 8 | 2 | 1 | 230V 50HZ | 7 | 2 | 33 |
| HT5TW-115/60 | 70 | 1.5 | 8 | 2 | 1 | 115V 60HZ | 7 | 2 | 33 |

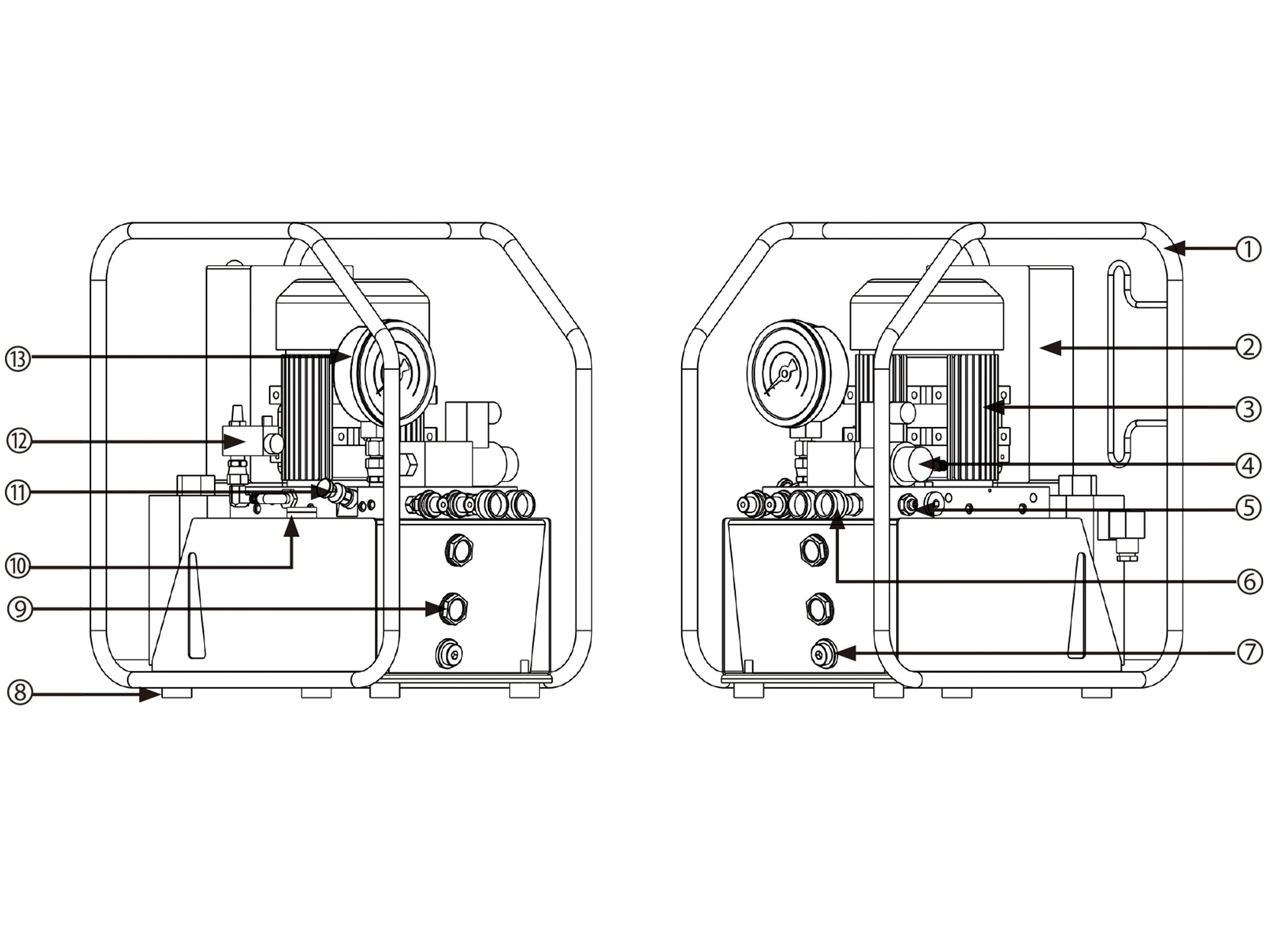

Product Illustration
- Protection Frame
- Cabinet
- Motor
- Solenoid Directional Control Valve
- Pressure Limiting Valve At R Port
- Quick Connector
- Oil Release Port
- Foot
- Oil Level Gauge
- Oil Filling Port
- Pressure Adjusting Valve
- Solenoid Air Vent Valve
- Pressure Gauge
