HSE700AT,Servo-Controlled Intelligent Pressure Maintenance Pump
The ULTPRE HSE700AT redefines precision and automation in pressure control, offering advanced servo-driven technology for industries demanding unmatched accuracy and reliability.
PRICE ON REQUEST
Features
Description
Series: HSE | Product Line: Industrial Tools
Key Features:
• PLC Touchscreen Interface: Intuitive control with a built-in fully automated pressure program for seamless operation.
• One-Touch Pressure Maintenance: Set target pressure and start instantly—the system auto-adjusts to sustain pressure with zero manual intervention.
• Adjustable Precision: Achieve control accuracy from 0.3 to 5MPa, can be set according to your specific requirements.
• Real-Time Data Logging: Track and analyze pressure-time curves for quality assurance and process optimization.
• Dual Safety Protections: External adjustable pressure-limit valve, over-pressure alarms, and sensor fault alerts ensure fail-safe operation.
• Multi-Unit Display: Switch effortlessly between MPa, BAR, psi, and KN for global compatibility.
• Smart Monitoring: Integrated oil level/temperature sensors with alarms to prevent overheating or fluid depletion.
Series Comparison
Specifications
| Model | Max Working Pressure(Mpa) | Motor Power(KW) | Voltage(VAC) | Low Pressure Flow Rate(L/min) | High Pressure Flow Rate(L/min) | Usable Oil(L) | Touch Screen Size | Weight(Kg) |
|---|---|---|---|---|---|---|---|---|
| HSE700AT20 | 70 | 1 | 230 | 5 | 0.6 | 20 | 7 Inch | 53 |
| HSE700AT60 | 70 | 1.5 | 230 | 6.4 | 0.85 | 60 | 10 Inch | 123 |
Diagram

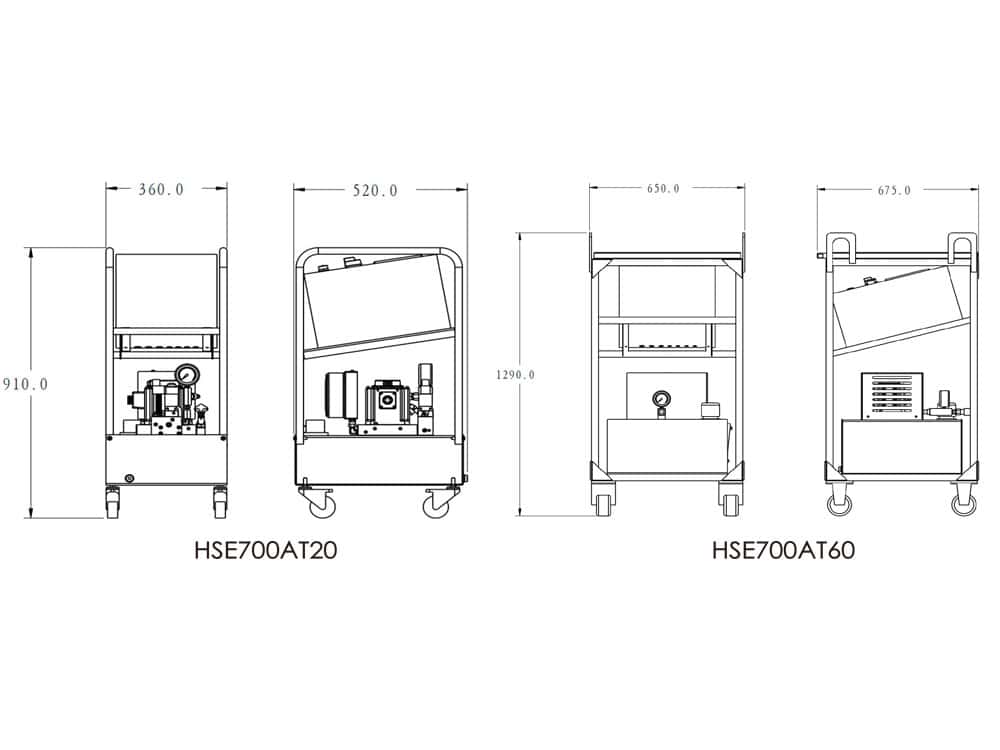

Dimensions
Hydraulic Diagram
Pressure Flow Curve

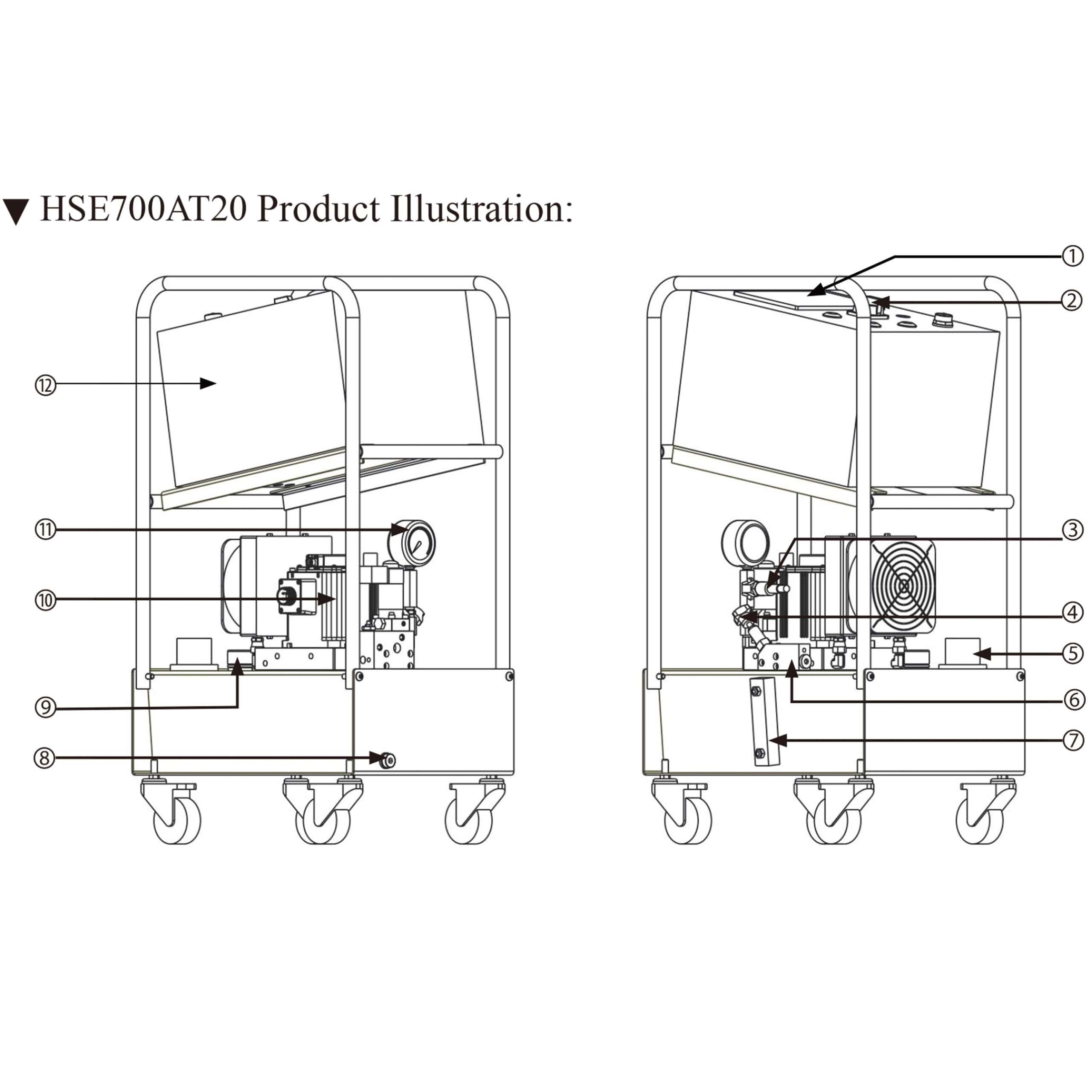

HSE700AT20 Prodduct Illusion
- PLC Touch Screen
- Power Switch
- Pressure Sensor
- Pressure Adjusting Valve
- Oil Level & Temperature Sensor
- Pilot Relief Valve Block
- Oil Level Gauge
- Oil Release Port
- Oil Filling Exhaust Port
- Motor
- Pressure Gauge
- Cabinet

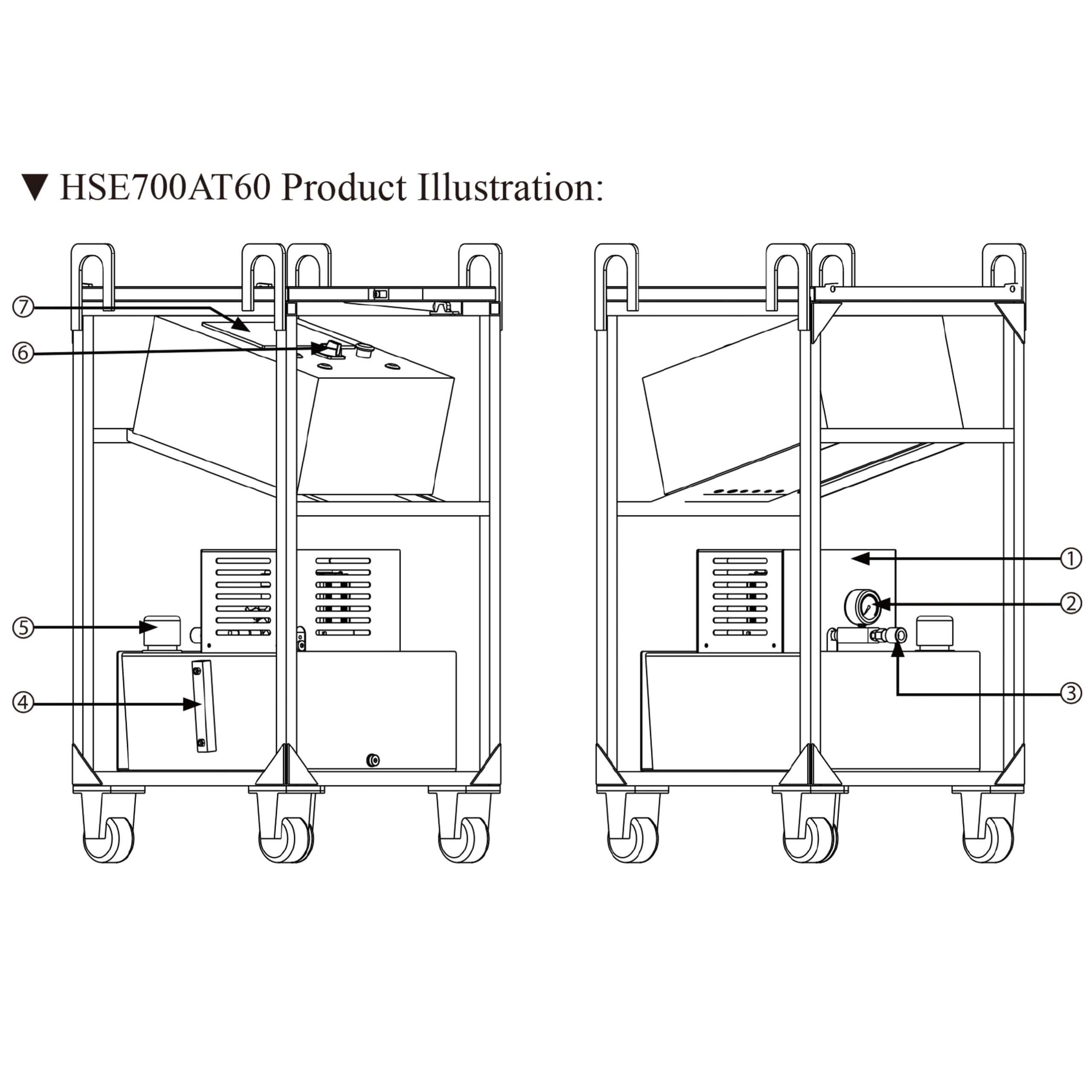

HSE700AT60 Product Illusion
- Cover
- Pressure Gauge
- Quick Connector
- Oil Level Gauge
- Oil Filling Exhaust Port
- Power Switch
- PLC Touch Screen
