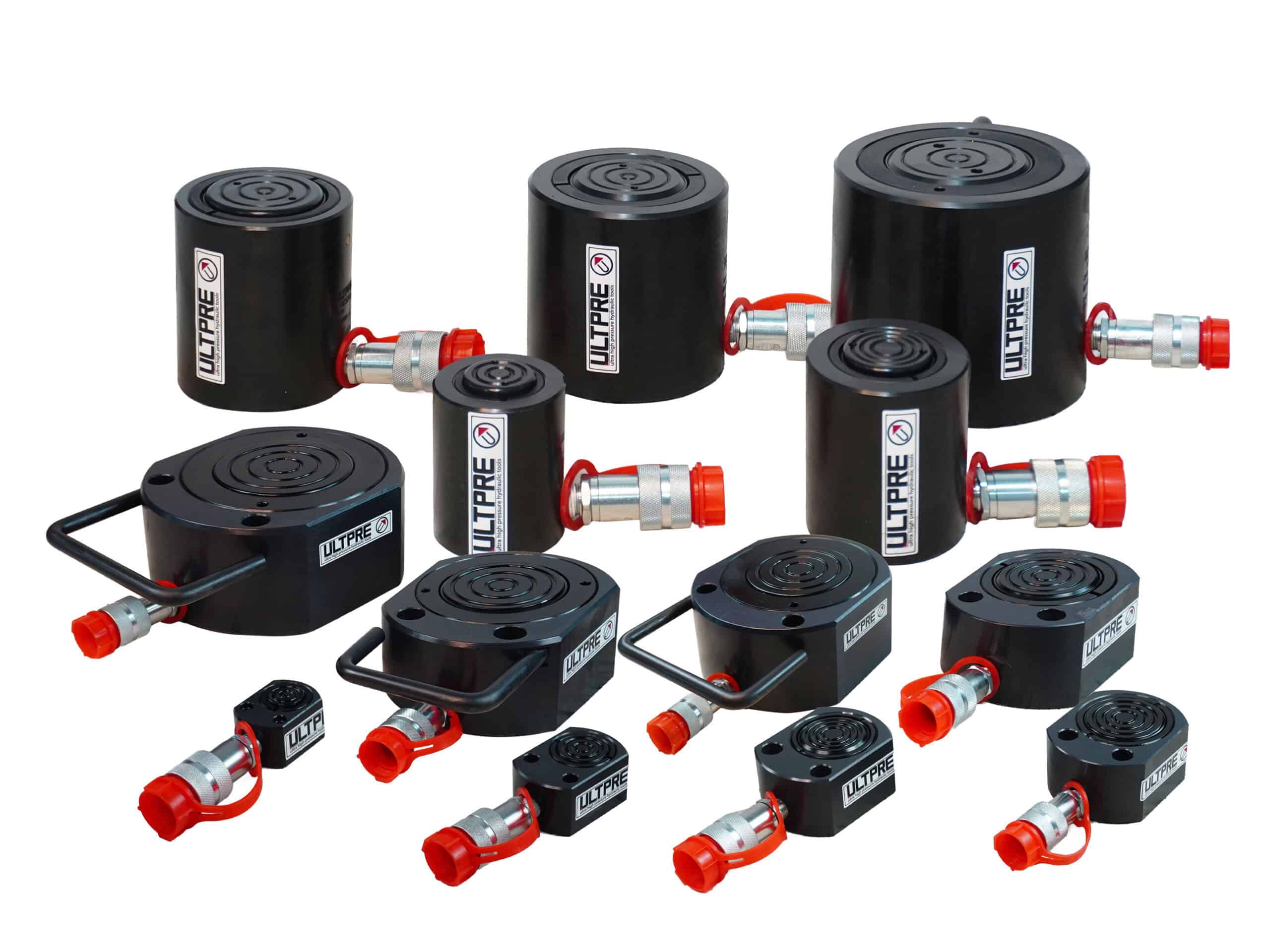

HCS502, 45 Ton Capacity,60mm Stroke, Single Acting Spring Retraction Low-Height Hydraulic Cylinders

he HCS Series offers a lightweight and compact design, balancing a low profile with versatile functionality for a wide range of compact applications.

PRICE ON REQUEST

Series: HCS | Product Line: Industrial Tools

Key Features:

  • Integrated Wiper Ring: Reduces contamination to extend cylinder service life.

  • Lightweight and Compact Design: Optimized for narrow workspaces.

  • Standard GEJN Quick Couplers & Dust Plugs: Ensures ready-to-connect convenience and port protection.

  • Tapped Holes on Grooved Piston Top: Allows for the installation of tiltable saddles, enhancing adaptability to misalignment.

  • Carrying Handle (Model HCS-1002): Designed for easy portability.

  • Advanced Gas Nitriding & Post-Oxidation Surface Treatment: Increases hardness for superior resistance to misalignment and cyclic wear.

  • Single-Acting with Spring Return: Provides efficient and reliable retraction.

  • The exhaust port expels air,preventing air resistance from causing jerky motion and noise,and ensuring stable operation of the hydraulic system.
  • The Swedish CEJN coupler and dust cap ensure safety throughout.
  • Dust seal, preventing external impuritiesfrom entering the interior of the cylinder and causing contamination or damage.
  • Stop ring for absorbing overload and preventing piston overtravel.
  • High-pressure seal to achieve zero internal leakage in the hydraulic system, reducing wear and extending service life.
  • Powerful spring for rapid return stroke.
Maximum Operating Pressure (bar)700
Capacity Class (tonnage)45
Stroke (mm)60
Collapsed Height/mm122
Extended Height/mm182
Return TypeSingle-Acting, Spring Return
Cylinder Effective(cm2)62.1
Oil Capacity(cm3)373
Surface TreatmentNAC surface treatment, gas nitriding and post-oxidation surface treatment
CouplerCEJN 3/8NPT-18
Weight (kg)10
Collapsed Height/mm(A)122
Extended Height/mm(B)182
Cylinder Outside Dia/mm(C)124
Cylinder Inner Dia/mm(D)88.9
Piston rod Dia/mm(E)69.8
Base To Advance Port/mm(F)23
Piston Protri. From Plgr./mm(J)2
Thread(P)M5
Thread Depth/mm(S)8
Thread Circle/mm(N)40
Model NumberCapacity/Ton(kN)Stroke/mmCylinder Effective Area/cm2Oil Capacity/cm3Collapsed Height/mm(A)Extended Height/mm(B)Cylinder Outside Dia/mm(C)Cylinder Inner Dia/mm(D)Piston Rod Dia/mm(E)Base To Advance Port/mm(F)Piston Protri. From Plgr./mm(J)Thread(P)Thread Depth/mm(S)Thread Circle/mm(N)Weight/Kg
HCS10110(101)3814.555 881266942.938.1175M48262.7
HCS20120(201)4528.7129 981439260.550.8173M58405
HCS30230(295)6242.1261 11717910173.266.5173M58406.8
HCS50245(435)6062.137312218212488.969.8232M584010
HCS100290(887)57126.772214119816512792.2311M8105520.7
