HCH606, 60 Ton Capacity,153mm Stroke, Single-Acting Spring-Retraction Hollow Hydraulic Cylinders

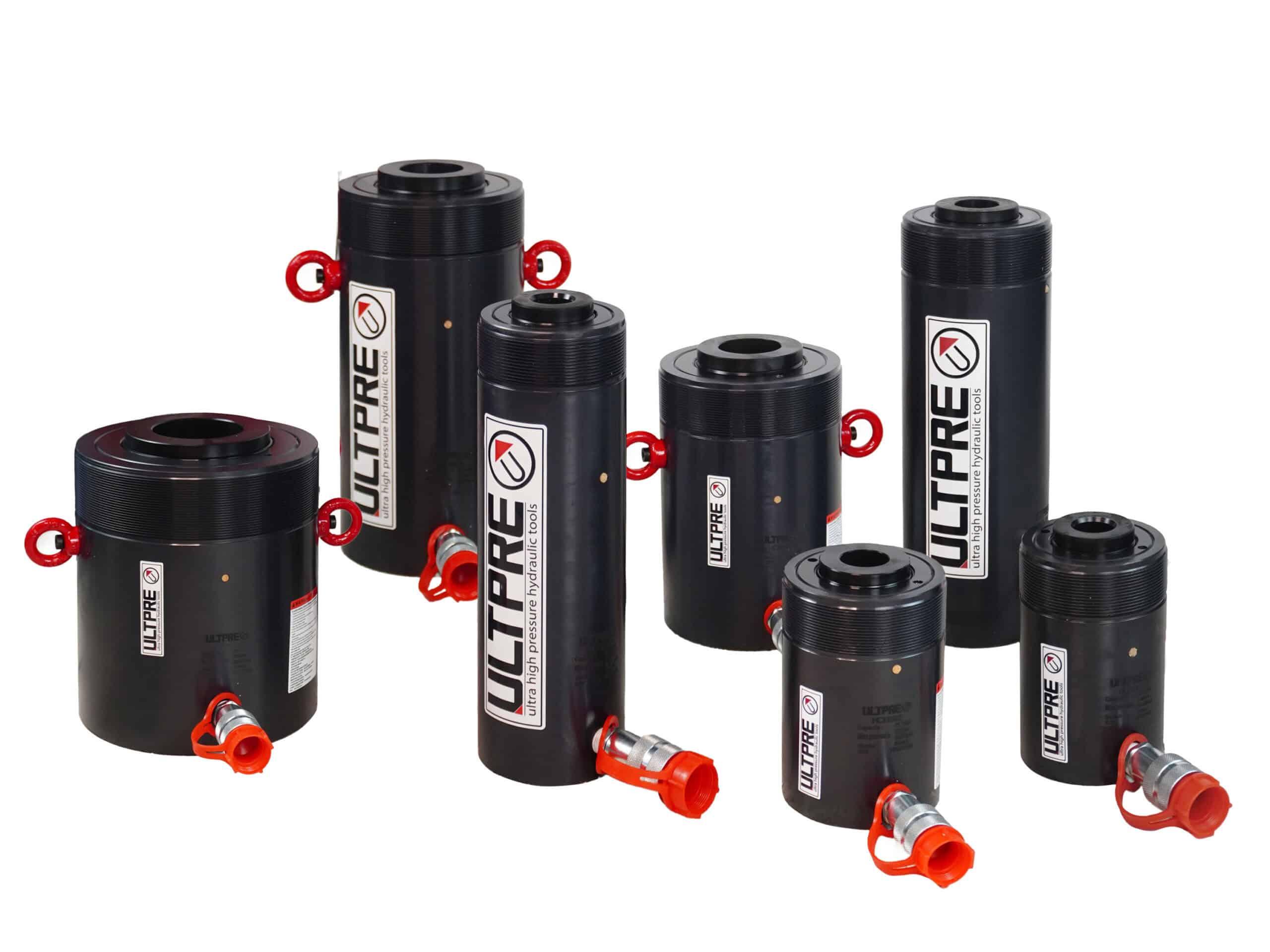

ULTPRE’s HCH Series offers a versatile and high-performance range of single-acting spring-return hollow hydraulic cylinders. Designed for both tension and compression applications, these cylinders combine innovative engineering, durability, and user-friendly features to meet the demands of diverse industrial environments.
PRICE ON REQUEST
Features
Description
Series: HCH | Product Line: Industrial Tools
-
Hollow Piston DesignEnables dual functionality for both pulling and pushing applications, providing exceptional flexibility across various use cases.
-
Single-Acting with Spring ReturnEnsizes efficient and rapid retraction with a reliable spring mechanism, enhancing operational speed and productivity.
-
External Thread Ring for Easy InstallationSimplifies mounting and integration, reducing setup time and effort.
-
Advanced NAC Coating TechnologyAll components undergo NAC surface treatment—gas nitriding and post-oxidation—for superior corrosion resistance and increased capacity to withstand misalignment loads.
-
Certified G80 Lifting Eye on High-Capacity ModelsLarger tonnage cylinders include a certified G80 high-strength lifting eye for safe and convenient handling.
-
Standard Base Mounting HolesAll models come equipped with base mounting holes, enabling straightforward and secure installation in various configurations.
-
High-Grade Polyurethane SealsEngineered with premium polyurethane seals for outstanding leak resistance, reduced wear, and extended service life.
-
Threaded Hollow Piston for Custom SaddlesThe hollow piston is pre-tapped to accommodate custom saddle designs, enhancing adaptability to specialized working conditions.
-
Integrated Wiper RingReduces contamination entry, protecting the cylinder interior and prolonging operational life.
-
Built-In Breathing PortFacilitates smooth extension and rapid retraction, ensuring consistent performance and responsiveness.
-
All-Weather ProtectionDesigned to perform reliably in diverse environmental conditions, providing robust protection from internal to external exposure.
Applications:
Ideal for use in automation systems, industrial presses, material handling equipment, lifting mechanisms, and other applications requiring compact design, high flexibility, and reliable force generation in both tension and compression.
Design
- Equipped with a spherical saddle,it effectively enhances the anti-overload capability of the hydraulic cylinder.
- Dust seal, preventing external impurities from entering the interior of the cylinder and causing contamination or damage.
- The exhaust port expels air,preventing air resistance from causing jerky motion and noise,and ensuring stable operation of the hydraulic system.
- Powerful spring for rapid return stroke.
- The Swedish CEJN coupler and dust cap ensure safety throughout.
- Stop ring for absorbing overload and preventing piston overtravel.
- Dust seal, preventing external impurities from entering the interior of the cylinder and causing contamination or damage.
- High-pressure seal to achieve zero internal leakage in the hydraulic system, reducing wear and extending service life.
Specifications
Specifications
| Maximum Operating Pressure (bar) | 700 |
| Capacity Class (tonnage) | 60 |
| Stroke (mm) | 153 |
| Collapsed Height/mm | 323 |
| Extended Height/mm | 476 |
| Return Type | Single-Acting, Spring Return |
| Cylinder Effective(cm2) | 82.3 |
| Oil Capacity(cm3) | 1259 |
| Surface Treatment | NAC surface treatment, gas nitriding and post-oxidation surface treatment |
| Coupler | CEJN 3/8NPT-18 |
| Weight (kg) | 35.4 |
Dimensions
Dimensions
| Collapsed Height/mm(A) | 323 |
| Extended Height/mm(B) | 476 |
| Cylinder Outside Dia/mm(C) | 159 |
| Cylinder Inner Dia/mm(D) | 123.9 |
| Plunger Dia/mm(E) | 91.9 |
| Base To Advance Port/mm(F) | 31 |
| Saddle Dia/mm(H) | 91 |
| Saddle Protri. From Plgr./mm(J) | 12 |
| Center Hole Dia/mm(R) | 53.8 |
Series Comparison
Series Comparison
| Model Number | Capacity/Ton（kN) | Stroke/mm | Cylinder Effective Area/cm2 | Oil Capacity/cm3 | Collapsed Height/mm(A) | Extended Height/mm(B) | Cylinder Outside Dia/mm(C) | Cylinder Inner Dia/mm(D) | Plunger Dia/mm(E) | Base To Advance Port/mm(F) | Saddle Dia/mm(H) | Saddle Protri. From Plgr./mm(J) | Plunger Internal Thread (P) | Plunger Thread Length/mm(N) | Collar Thread(M) | Center Hole Dia/mm(R) | Base Mounting Hole Bolt Circle/mm(U) | Base Mounting Hole Thread(V) | Base Mounting Hole Thread Depth/mm(P) | Weight/Kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HCH120 | 12(125) | 8 | 17.9 | 14 | 55 | 63 | 70 | 54.1 | 35.1 | 9 | * | * | 3/4”-16UN | 16 | 2 3/4”-16 | 17.3 | 50.8 | 5/16”-18UNC | 9 | 1.5 |
| HCH121 | 42 | 17.9 | 75 | 120 | 162 | 70 | 54.1 | 35.1 | 25 | * | * | * | * | 2 3/4”-16 | 19.5 | * | * | * | 2.8 | |
| HCH1211 | 42 | 17.9 | 75 | 120 | 162 | 70 | 54.1 | 35.1 | 25 | * | * | 3/4”-16UN | 18 | 2 3/4”-16 | 17.3 | * | * | * | 2.8 | |
| HCH123 | 76 | 17.9 | 136 | 184 | 260 | 70 | 54.1 | 35.1 | 25 | * | * | * | * | 2 3/4”-16 | 19.5 | 50.8 | 5/16”-18UNC | 12.4 | 4.4 | |
| HCH202 | 20(215) | 49 | 30.7 | 150 | 162 | 211 | 98.5 | 73.1 | 54.1 | 19 | 54 | 9.7 | 1 9/16”-16UN | 30 | 3 7/8”-12 | 26.9 | 82.6 | 3/8”-16UNC | 9.4 | 7.7 |
| HCH206 | 155 | 30.7 | 476 | 306 | 461 | 98.5 | 73.1 | 54.1 | 25 | 54 | 9.7 | 1 9/16”-16UN | 30 | 3 7/8”-12 | 26.9 | 82.6 | 3/8”-16UNC | 9.4 | 14.1 | |
| HCH302 | 30(326) | 64 | 46.6 | 298 | 178 | 242 | 114 | 88.9 | 63.5 | 21 | 63 | 9 | 1 13/16”-16UN | 30 | 4 1/2”-12 | 33.3 | 92.2 | 3/8”-16UNC | 14 | 10.9 |
| HCH306 | 155 | 46.6 | 722 | 330 | 485 | 114 | 88.9 | 63.5 | 25 | 63 | 9 | 1 13/16”-16UN | 35 | 4 1/2”-12 | 33.3 | 92.2 | 3/8”-16UNC | 14 | 21.8 | |
| HCH603 | 60(576) | 76 | 82.3 | 626 | 247 | 323 | 159 | 123.9 | 91.9 | 31 | 91 | 12 | 2 3/4”-16UN | 35 | 6 1/4”-12 | 53.8 | 130.3 | 1/2”-13UNC | 14 | 28.1 |
| HCH606 | 153 | 82.3 | 1259 | 323 | 476 | 159 | 123.9 | 91.9 | 31 | 91 | 12 | 2 3/4”-16UN | 35 | 6 1/4”-12 | 53.8 | 130.3 | 1/2”-13UNC | 14 | 35.4 | |
| HCH1003 | 95(931) | 76 | 133 | 1011 | 254 | 330 | 213 | 165.1 | 127 | 38 | 126 | 12 | 4”-16UN | 40 | 8 1/4”-12 | 79 | 177.8 | 5/8”-11UNC | 19 | 63.0 |
