HC3005MV43,Portable Electric Hydraulic Pump,0.55KW,5L Usable Oil,Double Acting Manual Control
The ULTPRE HC3 Series portable electric hydraulic pump is engineered to power a wide range of hydraulic tools, including cylinders, flange separators, bolt tensioners, nut splitters, and more. Ideal for industrial maintenance, construction, and repair applications, it combines portability with robust performance.
Description
Model: HC3005MV43 | Series: HC3 | Product Line: Industrial Tools
Experience unmatched versatility and durability with the HC3 Series—your go-to solution for demanding hydraulic tasks.
-
Lightweight & Compact: Designed for easy transport and maneuverability.
-
High-Efficiency Structure: Gear pump + triple radial plunger pump design ensures superior efficiency, low noise, and strong self-priming capability.
-
Maintenance-Free: Brushless motor eliminates routine upkeep.
-
Convenient Controls: Includes a 3-meter wired remote handle and an onboard toggle switch for flexible operation.
-
Enhanced Safety: Built-in safety valve, external adjustable relief valve, and motor overload protector ensure reliable protection.
-
User-Friendly Design: Features an oil tank with quick-access ports (fill, vent, drain), oil level gauge, ergonomic handle, and anti-slip feet for stability.
Specifications
| Maximum Operating Pressure (bar) | 700 |
| Motor Power(KW) | 0.55 |
| Usable Oil (L) | 5 |
| Control Valve | MV43 4Way 3Position Double Acting Manual Valve |
| Voltage | 220VAC or 115VAC/60HZ |
| First Stage Oil Flow Rate(L/min) | 3.5 |
| Second Stage Oil Flow Rate(L/min) | 0.35 |
| Weight Without Oil(Kg) | 19 |
Diagram

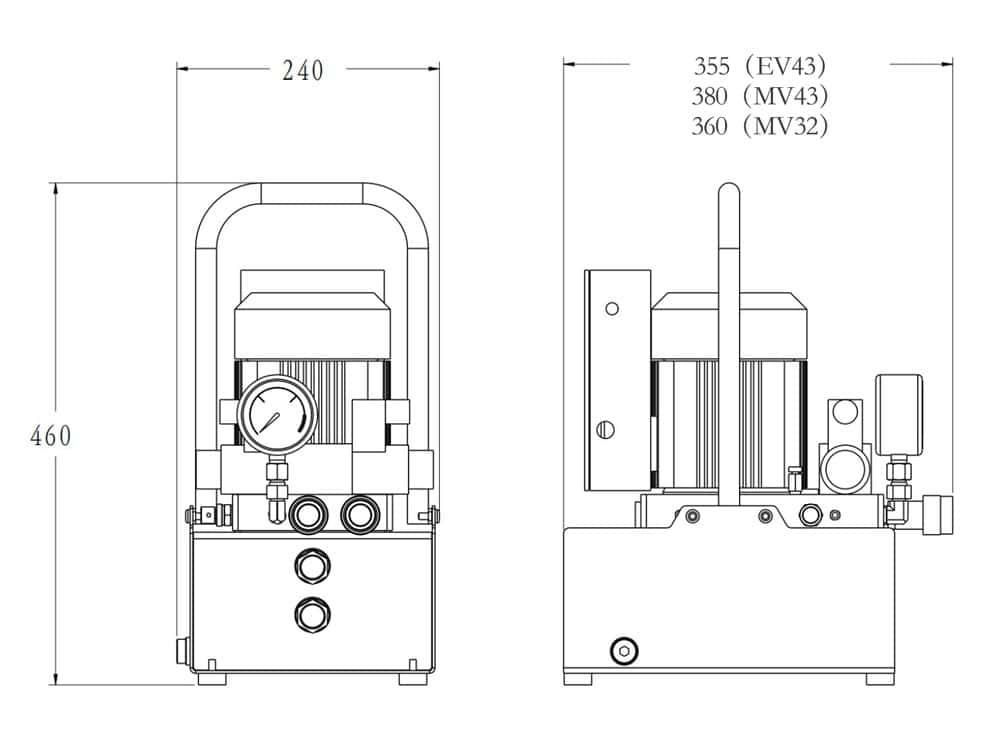

Dimensions
Hydraulic Diagram
Pressure/Flow Rate Curve
Series Comparison
| Model | Max Working Pressure(Mpa) | Motor Power(KW) | Low Pressure Flow Rate(L/min) | High Pressure Flow Rate(L/min) | Voltage | Usable Oil(L) | Control Valve | Oil Outlets | Weight Without Oil(Kg) |
|---|---|---|---|---|---|---|---|---|---|
| HC3005MV32 | 70 | 0.55 | 3.5 | 0.35 | 220VAC or 115VAC/60HZ | 5L | MV32 Single Acting Manual unloading valve | Single Acting | 19 |
| HC3005MV43 | 70 | 0.55 | 3.5 | 0.35 | 220VAC or 115VAC/60HZ | 5L | MV43 4Way 3Position Double Acting Manual Valve | Double Acting | 19 |
| HC3005EVC32 | 70 | 0.55 | 3.5 | 0.35 | 220VAC or 115VAC/60HZ | 5L | EVC32 Single Acting Solenoid Valve,Increae/Hold/Release Pressure | Single Acting | 19 |
| HC3005EVO32 | 70 | 0.55 | 3.5 | 0.35 | 220VAC or 115VAC/60HZ | 5L | EVO32 Single Acting Solenoid Valve,Increae/Release Pressure | Single Acting | 19 |
| HC3005EVL43 | 70 | 0.55 | 3.5 | 0.35 | 220VAC or 115VAC/60HZ | 5L | EVL43 4Way 3Position solenoid valve,Double Acting with hydraulic lock, No Leakage | Double Acting | 21 |
| HC3005EVB43 | 70 | 0.55 | 3.5 | 0.35 | 220VAC or 115VAC/60HZ | 5L | EVB43 4Way 3Position solenoid valve Double Acting With Load Lowering Valve Installed on A Port | Double Acting | 21 |
Product Illustration
- Electric Control Box
- Motor
- MV43 Manual Control Valve
- Quick Connectors
- Oil Release Port
- Oil Level Gauge
- Pressure Gauge
- Handle
