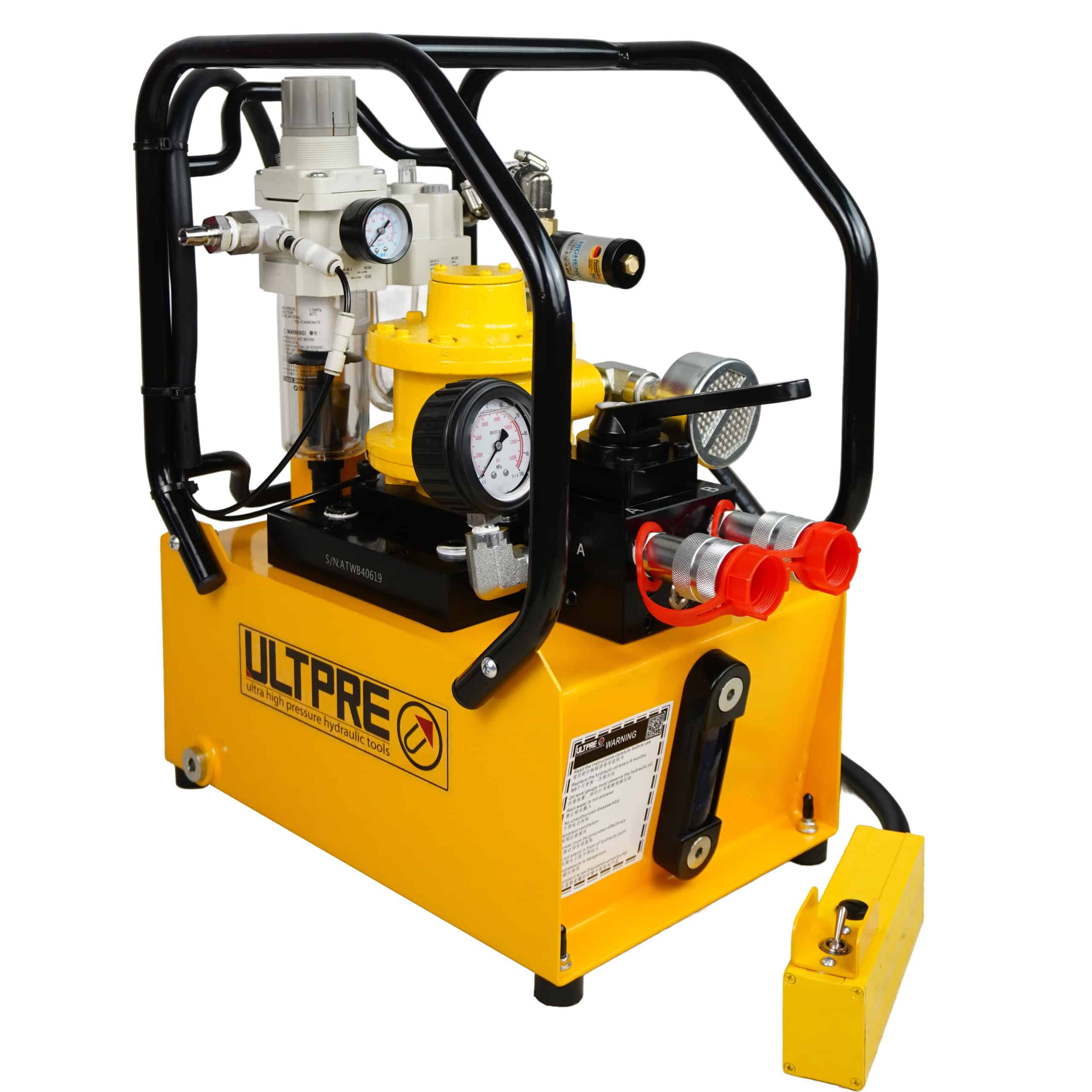

HA5020MV43, 1.5KW, 20L Usable Oil, Double Acting Pneumatic Hydraulic Pump
The ULTPRE HA5007 is a versatile pneumatic hydraulic pump designed to power single- and dual-circuit hydraulic tools, including jacks, pullers, flange separators, and more. Built for industrial durability and precision, it delivers reliable performance in demanding environments.
Description
Model: HA5020MV43 | Series: HA | Product Line: Industrial Tools
Technical Specs:
Ideal for industrial maintenance, machinery repair, and heavy equipment sectors, the HA5 combines adaptability, safety, and power for seamless hydraulic tool operation.
Key Features:
-
Air Source Trio Unit: Integrated filter, regulator, and lubricator for clean, stable air supply.
-
Motor Start Ball Valve Switch: Simplifies on/off operations for enhanced user control.
-
Flexible Valve Options: Choose between single-acting or double-acting manual directional valves.
-
Dual Safety Protection: Built-in relief valve and external adjustable overflow valve for system security.
-
Tool-Ready Design: Equipped with a pressure gauge, steel oil tank, and full protective frame for rugged reliability.
-
Durability: Robust construction ensures long-lasting operation under high-pressure conditions.
Specifications
| Maximum Operating Pressure (bar) | 700 |
| Max Air Consumption(M³) | 220 |
| Usable Oil (L) | 20 |
| Motor Power(KW) | 1.5 |
| First Stage Oil Flow Rate(L/min) | 7 |
| Second Stage Oil Flow Rate(L/min) | 1 |
| Weight With Oil(Kg) | 48 |
Diagram
Dimensions
Pressure/Flow Rate Curve

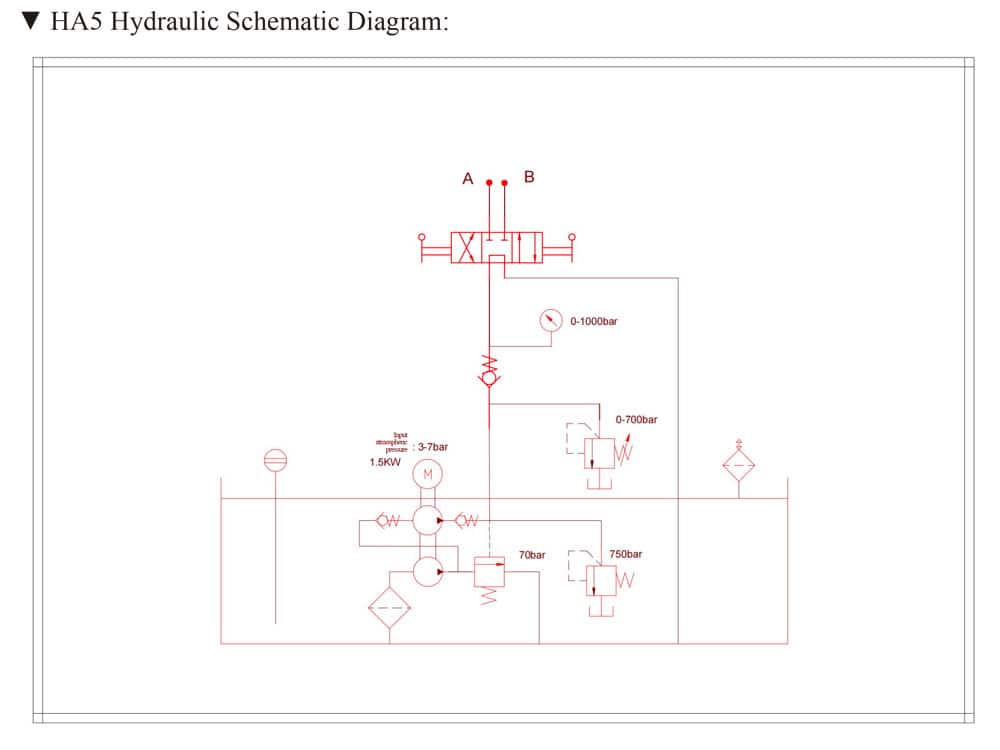

Hydraulic Diagram
Series Comparison
| Model | Max Working Pressure(Mpa) | Motor Power(KW) | Max Air Consumption(M³) | Usable Oil (L) | Low Pressure Flow Rate(L/min) | High Pressure Flow Rate(L/min) | Weight With Oil(Kg) |
|---|---|---|---|---|---|---|---|
| HA5007MV43 | 70 | 1.5 | 220 | 7 | 7 | 1 | 36 |
| HA5020MV43 | 70 | 1.5 | 220 | 20 | 7 | 1 | 48 |

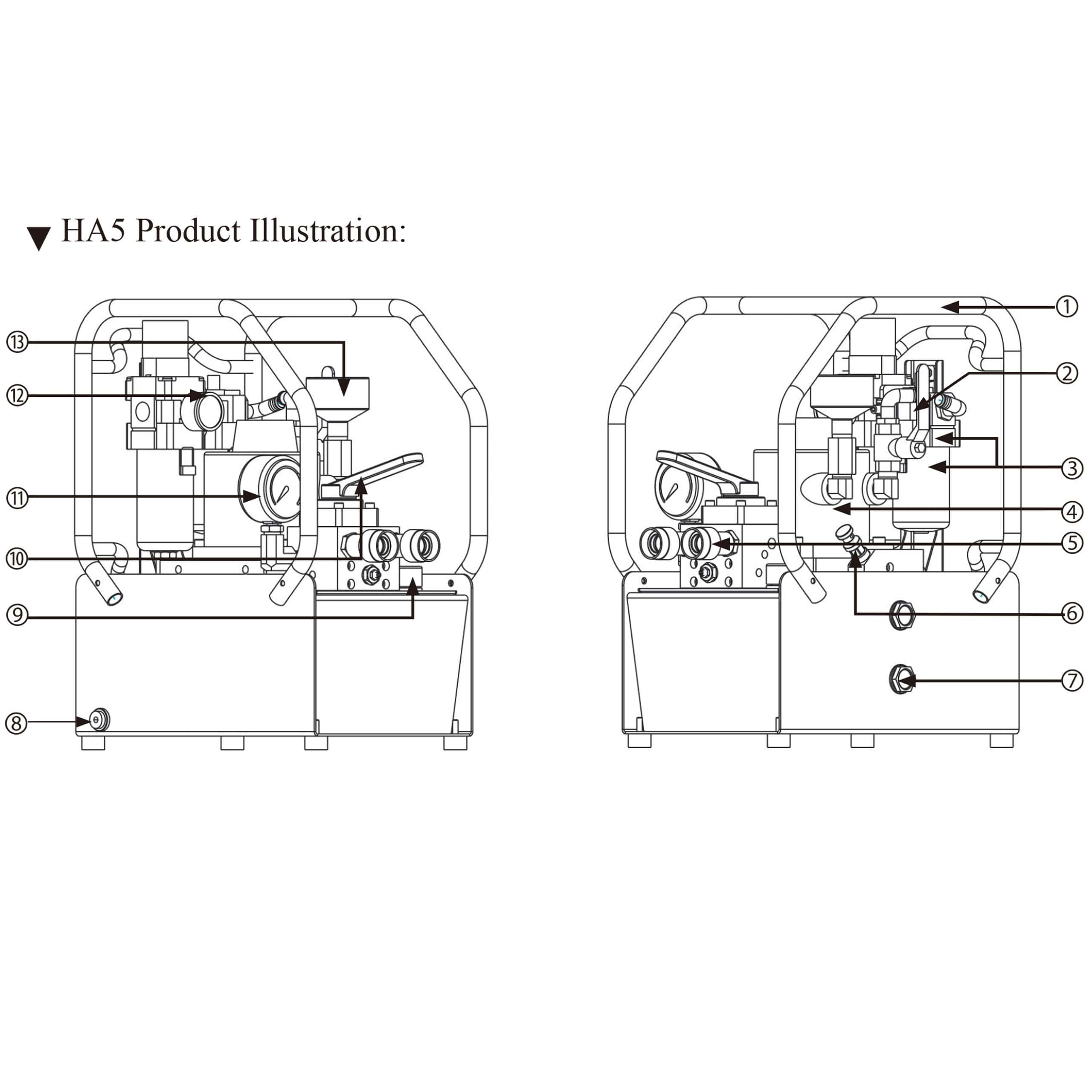

Product Illustration
- Protection Frame
- Ball Valve Switch
- Triplet
- Pneumatic Motor
- Quick Connector
- Pressure Adjusting Valve
- Oil Level Gauge
- Oil Release Port
- Fuel Filling Air exhaust port
- Manual Direction Control Valve
- Manometer
- Barometer
- Muffler
Downloads
| – | File Name | File Type |
|---|---|---|
 | HA5 Pneumatic Hydraulic Pumps Brochure | English |
| HA5气动液压泵单页图册 | 中文 |
| HA5 Air Hydraulic Pumps Instructions | English |
| HA5气动液压扳手泵使用说明书 | 中文 |
