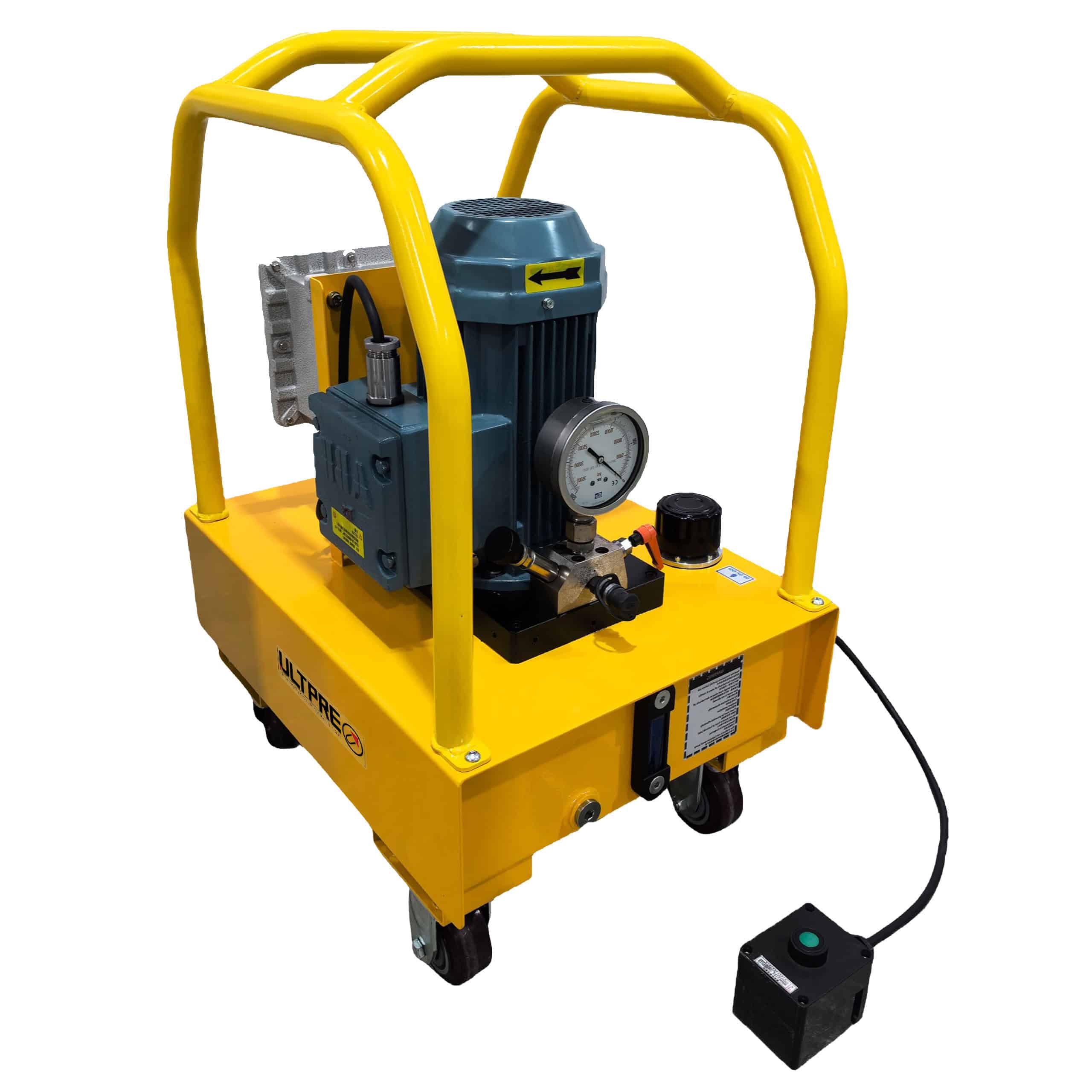

EX-EPW1500，150MPa Explosion-Proof Ultra-High Pressure Electric Hydraulic Tensioner Pump
The ULTPRE EX-EPW is a rugged, explosion-proof electric hydraulic pump engineered for ultra-high pressure tensioning tasks in hazardous and explosive environments. Certified to Exd II B T4 standards, it delivers unmatched safety, efficiency, and durability for critical industrial applications.
Description
Model: EX-EPW1500 | Series: EX-EPW | Product Line: Industrial Tools
Ideal for oil refineries, chemical plants, mining, and gas processing facilities, the EX-EPW series is built to excel in extreme environments where safety and precision are non-negotiable.
-
Dual-Stage Pump System: Combines rapid low-pressure oil supply and smooth high-pressure transition for optimized efficiency and performance.
-
Explosion-Proof Design: ABB explosion-proof motor and increased safety control cabinet with three-phase overload protection ensure compliance with stringent hazard zone requirements.
-
Precision Adjustability: External adjustable relief valve enables continuous pressure control for precise tensioning operations.
-
Remote Safety Operation: 6M explosion-proof wired control handle allows operators to maintain a safe distance in high-risk areas.
-
Industrial Toughness: Reinforced protective frame, lockable casters, and 116/125 series quick-connect couplings ensure reliability and adaptability in harsh conditions.
-
Flexible Configuration: Selectable single or dual outlets for versatile tool compatibility and multi-tasking efficiency.
-
Thermal Management: Robust cooling system maintains stable operation during prolonged use.
Specifications
| Maximum Operating Pressure (bar) | 1500 |
| Motor Power(KW) | 1.5 |
| Usable Oil (L) | 20 |
| First Stage Oil Flow Rate(L/min) | 3 |
| Second Stage Oil Flow Rate(L/min) | 0.35 |
| Voltage(VAC) | 380 |
| Weight Without Oil(Kg) | 110 |
Diagram

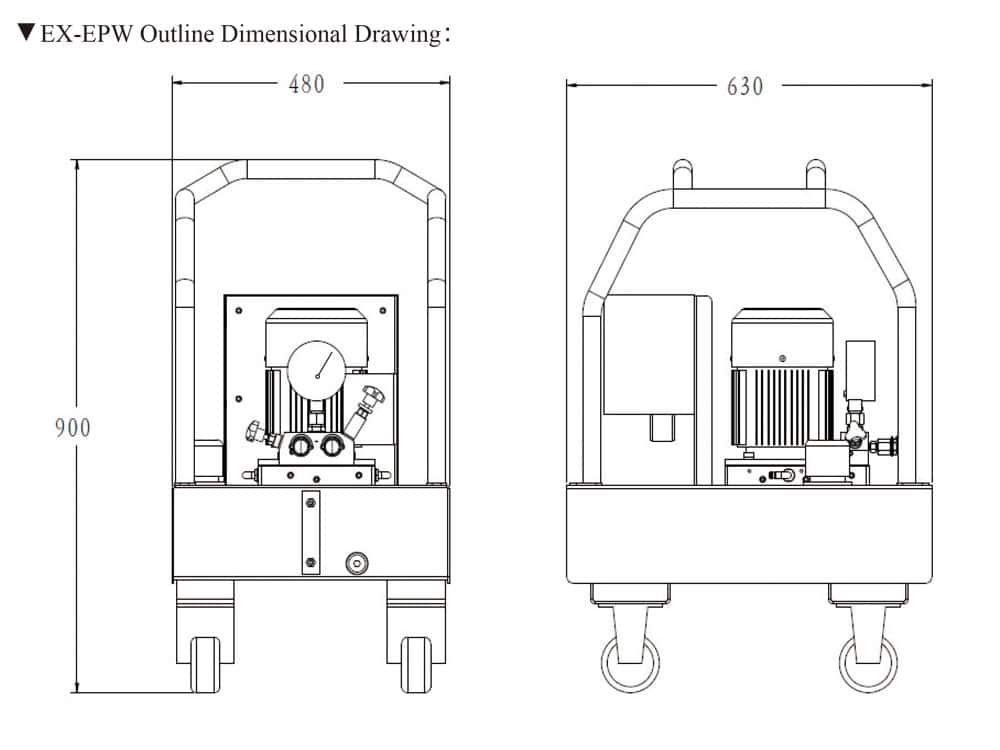

Dimensions

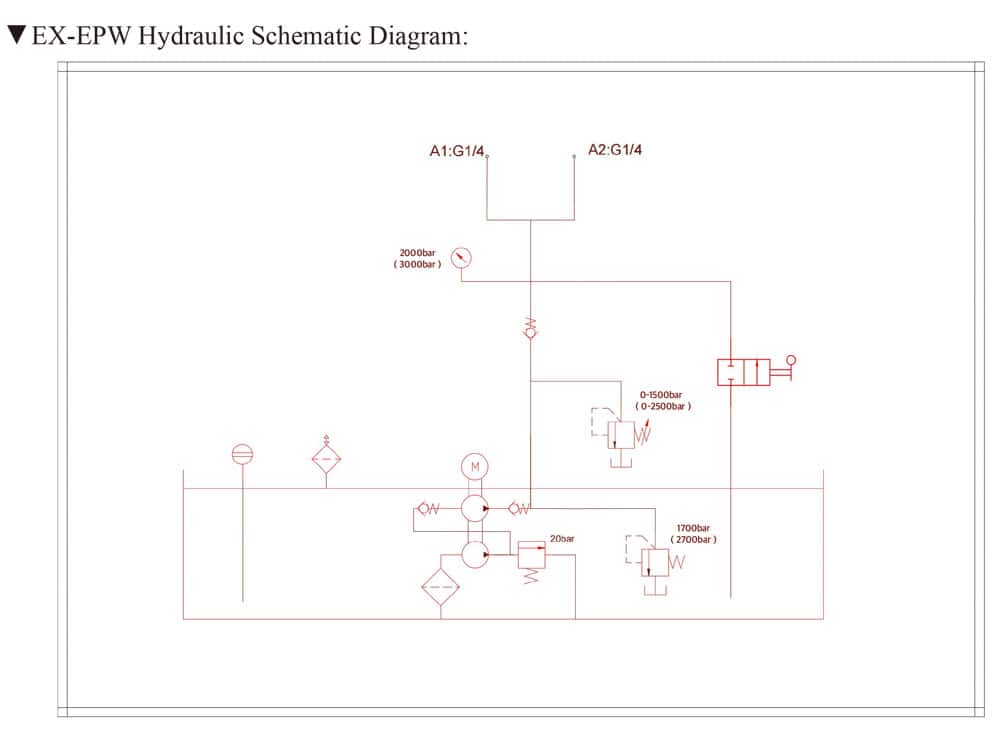

Hydraulic Diagram
Pressure/Flow Rate Curve
Series Comparison
| Model Number | Max Working Pressure | Motor Power | Low Pressure Flow Rate | High Pressure Flow Rate | Usable Oil | Voltage | Weight Without Oil |
|---|---|---|---|---|---|---|---|
| EX-EPW1500 | 1500 bar | 1.5KW | 3L/Min | 0.35L/Min | 20L | 380VAC | 110kg |
| EX-EPW2500 | 2500 bar | 1.5KW | 3L/Min | 0.35L/Min | 20L | 380VAC | 110kg |
Product Illustration
- Protection Frame
- Explosion-proof Cabinet
- Pressure Adjusting Valve
- Quick Connector
- Oil Release Port
- Oil Level Gauge
- Oil Filling Exhaust Port
- Relief Valve
- Pressure Gauge
- Explosion-proof Motor
