EPU3500,350MPa Heavy-Duty Ultra-High Pressure Electric Pump
The ULTPRE EPU Series sets the benchmark for power and resilience in ultra-high-pressure hydraulic systems, engineered to tackle the most demanding industrial applications with pressures ranging from 150 MPa to 350 MPa. Built for heavy-duty use in oil and gas, mining, and shipbuilding, this series delivers unmatched durability, precision, and mobility
Description
Model: EPU3500 | Series: EPU | Product Line: Industrial Tools
Combining rugged construction with cutting-edge technology, the EPU Series excels in harsh environments where power, precision, and portability are critical.
-
Dual-Stage Pump System: Maximizes productivity with rapid low-pressure filling and seamless transition to ultra-high-pressure output.
-
ABB IEC Brushless Motor: Maintenance-free operation with industrial-grade reliability and efficiency.
-
High-Pressure Radial Piston Pump (No Intensifier): Eliminates complexity while ensuring extended service life.
-
Three-Phase Motor Protector: Safeguards against overloads, phase loss, and overheating.
-
High-Efficiency Air-Cooled Radiator: Maintains stable temperatures during prolonged operation.
-
Continuously Adjustable Pressure Valve: Fine-tune output pressure for precise control across tasks.
-
Low-Voltage Wired Remote Handle: Ensures operator safety in high-pressure environments.
-
Compatible with ISO VG46 or Water-Glycol Fluids: Adapts to diverse operational and safety requirements.
-
Heavy-Duty Frame with Industrial Casters: Robust mobility and lifting points for easy transport and rigging.
Specifications
| Maximum Operating Pressure (bar) | 3500 |
| Motor Power(KW) | 4 |
| Usable Oil (L) | 60 |
| First Stage Oil Flow Rate(L/min) | 4.8 |
| Second Stage Oil Flow Rate(L/min) | 0.6 |
| Weight Without Oil(Kg) | 110 |
Diagram

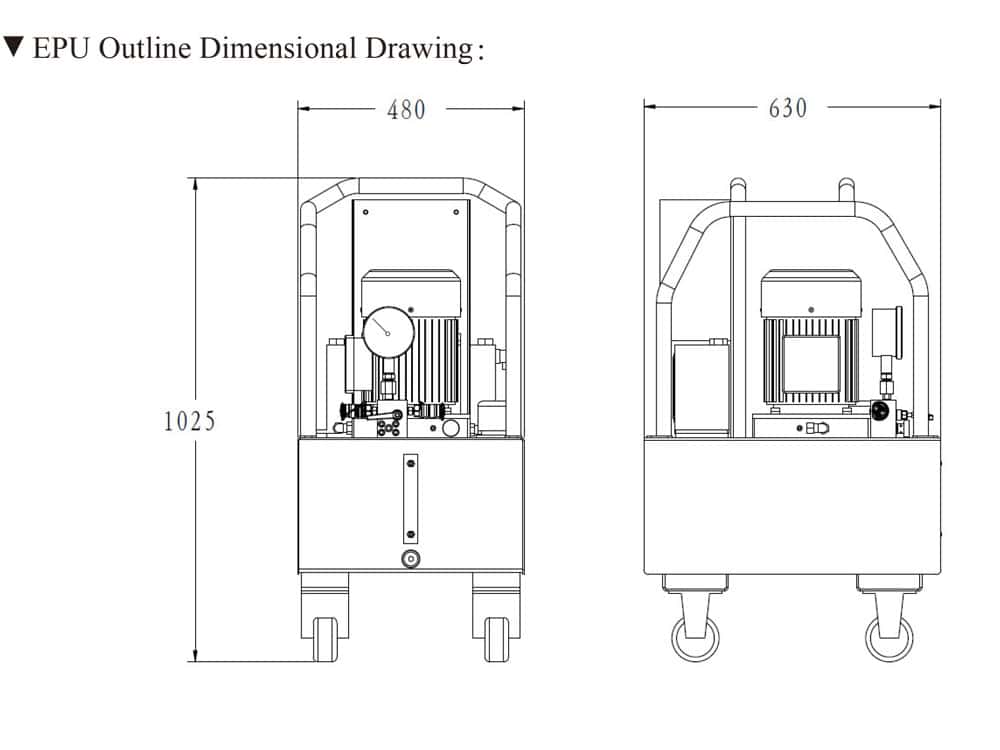

Dimensions

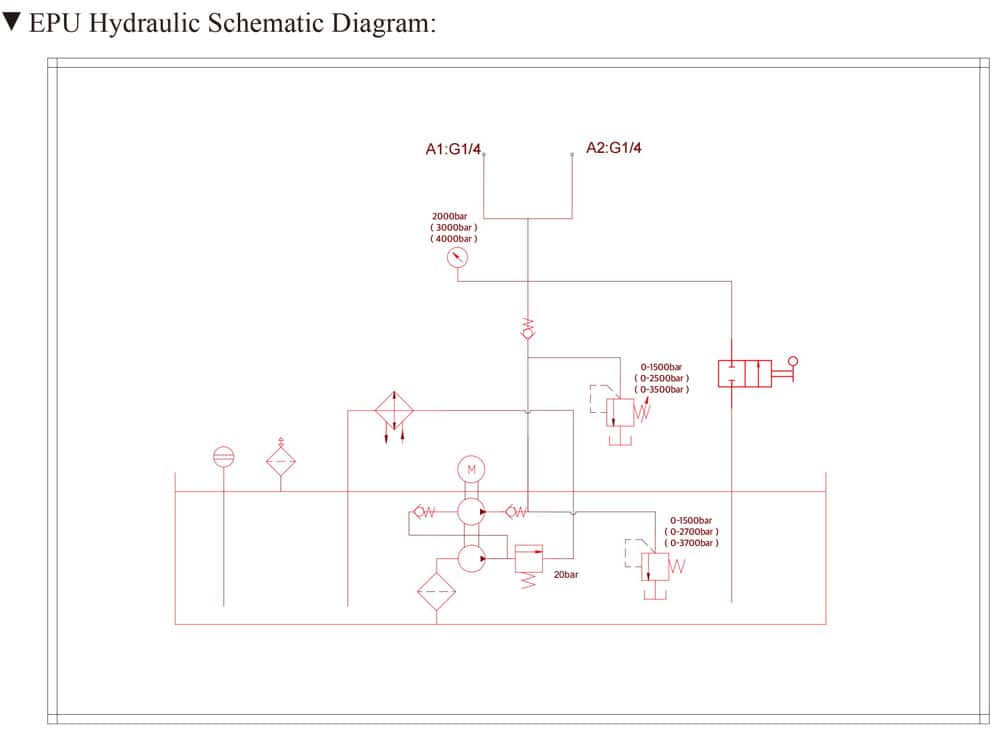

Hydraulic Diagram

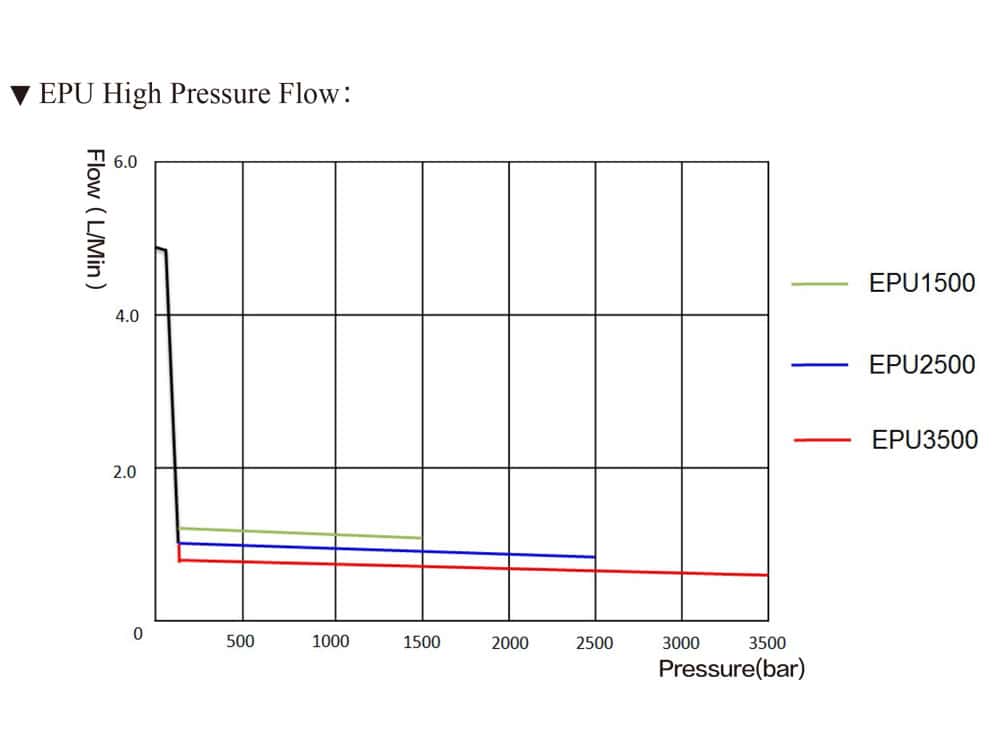

Pressure/Flow Rate Curve
Series Comparison
| Model Number | Max Working Pressure | Motor Power | Low Pressure Flow Rate | High Pressure Flow Rate | Usable Oil | Weight Without Oil |
|---|---|---|---|---|---|---|
| EPU1500 | 1500 bar | 4KW | 4.8/Min | 1.2L/Min | 60L | 110kg |
| EPU2500 | 2500 bar | 4KW | 4.8/Min | 0.8L/Min | 60L | 110kg |
| EPU3500 | 3500 bar | 4KW | 4.8/Min | 0.6L/Min | 60L | 110kg |

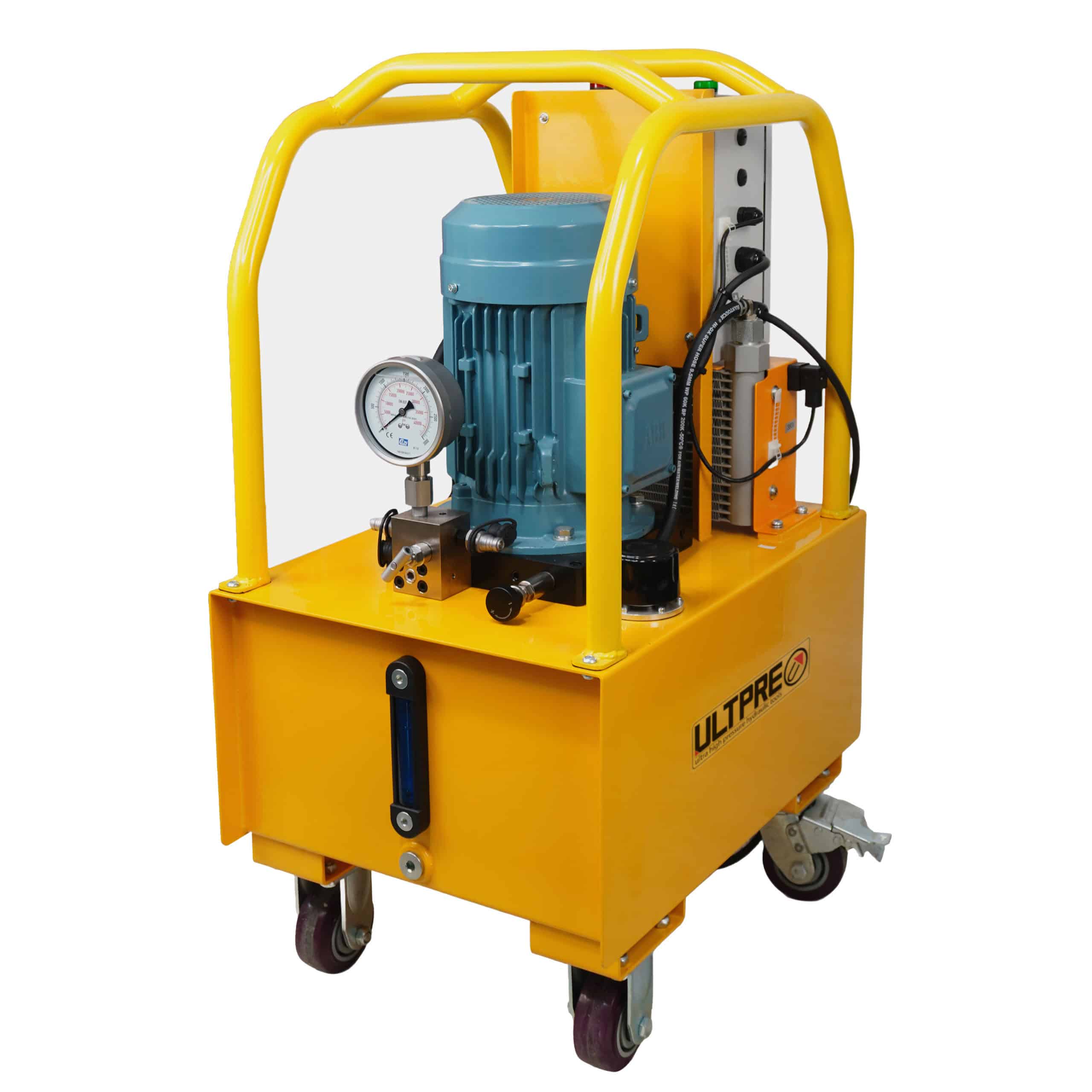

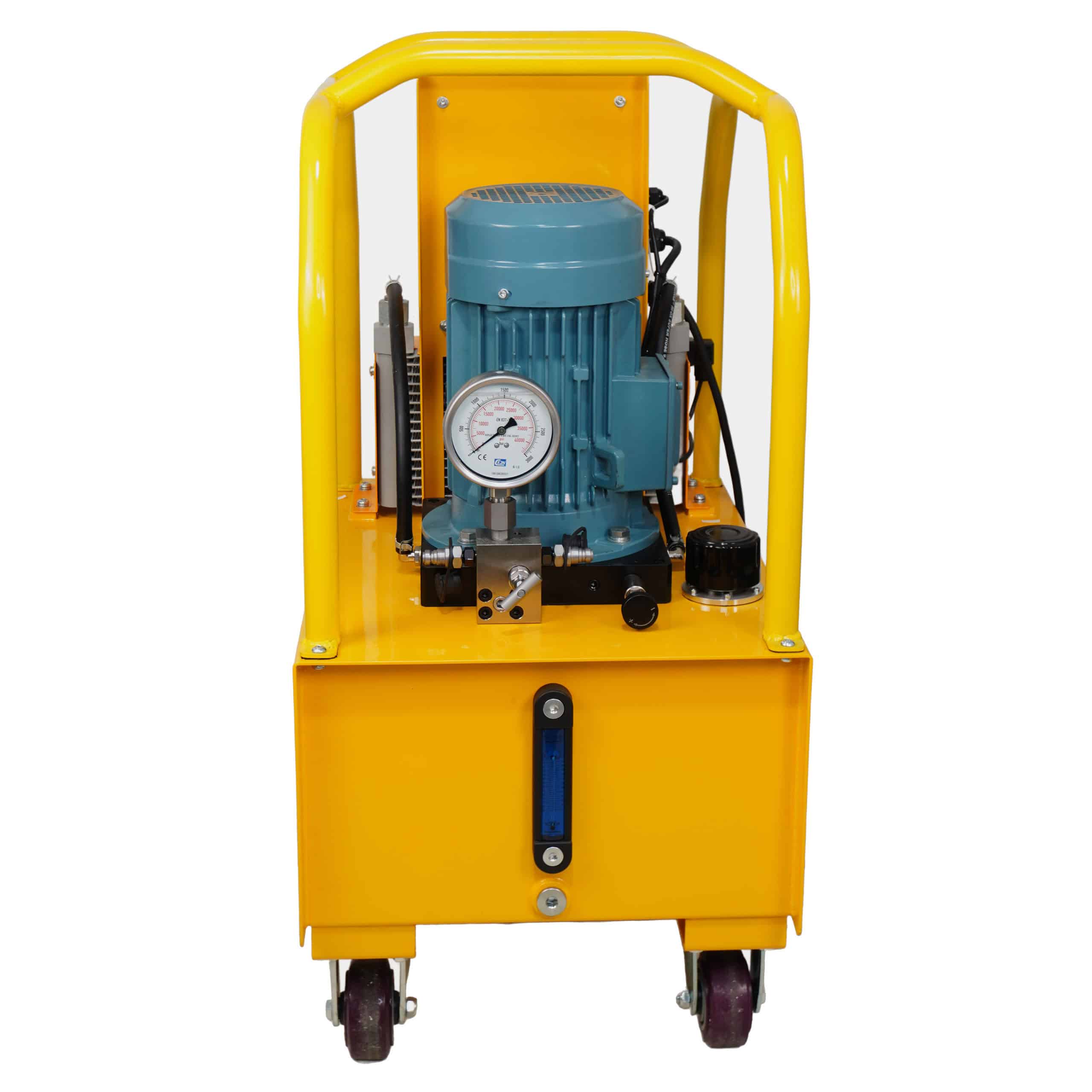

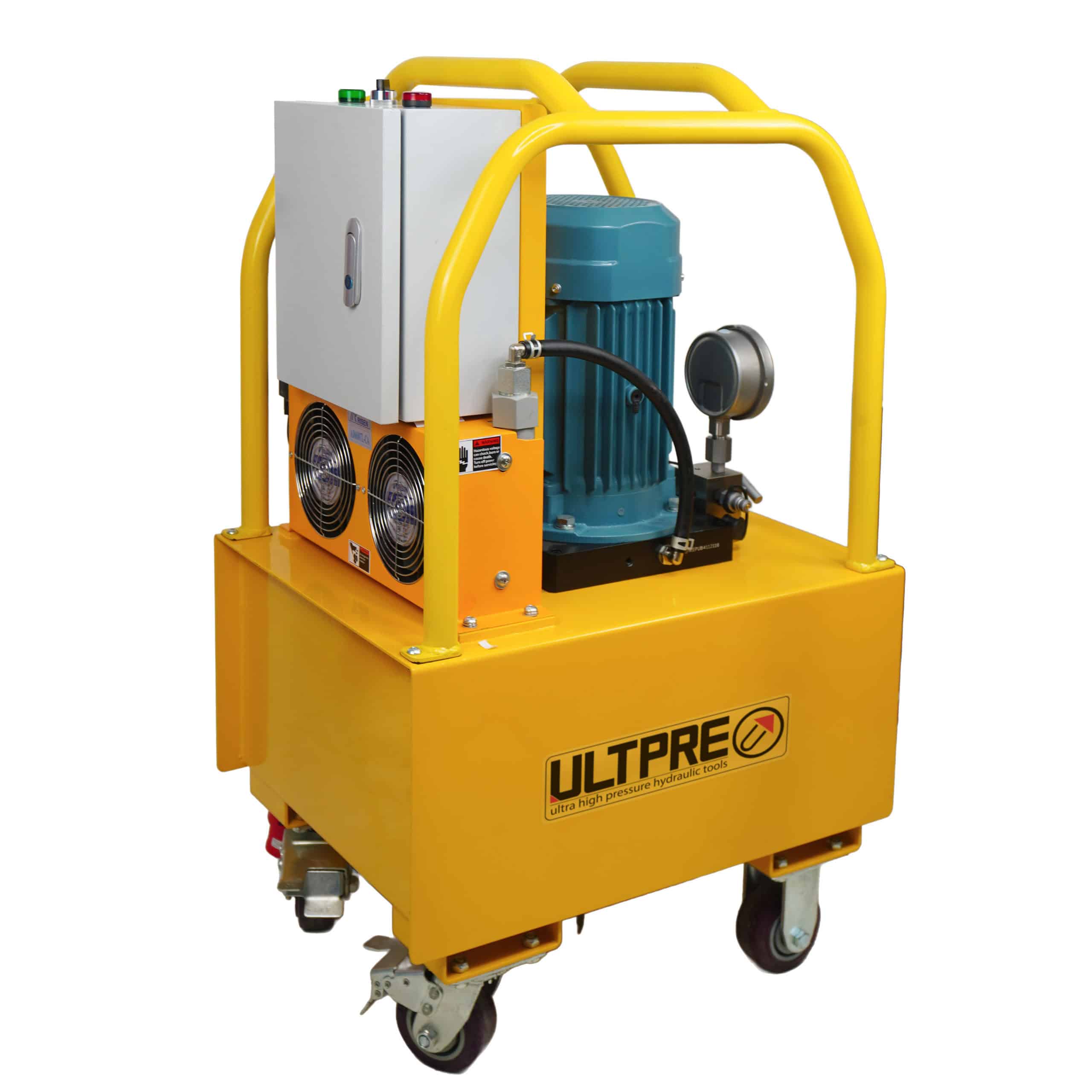

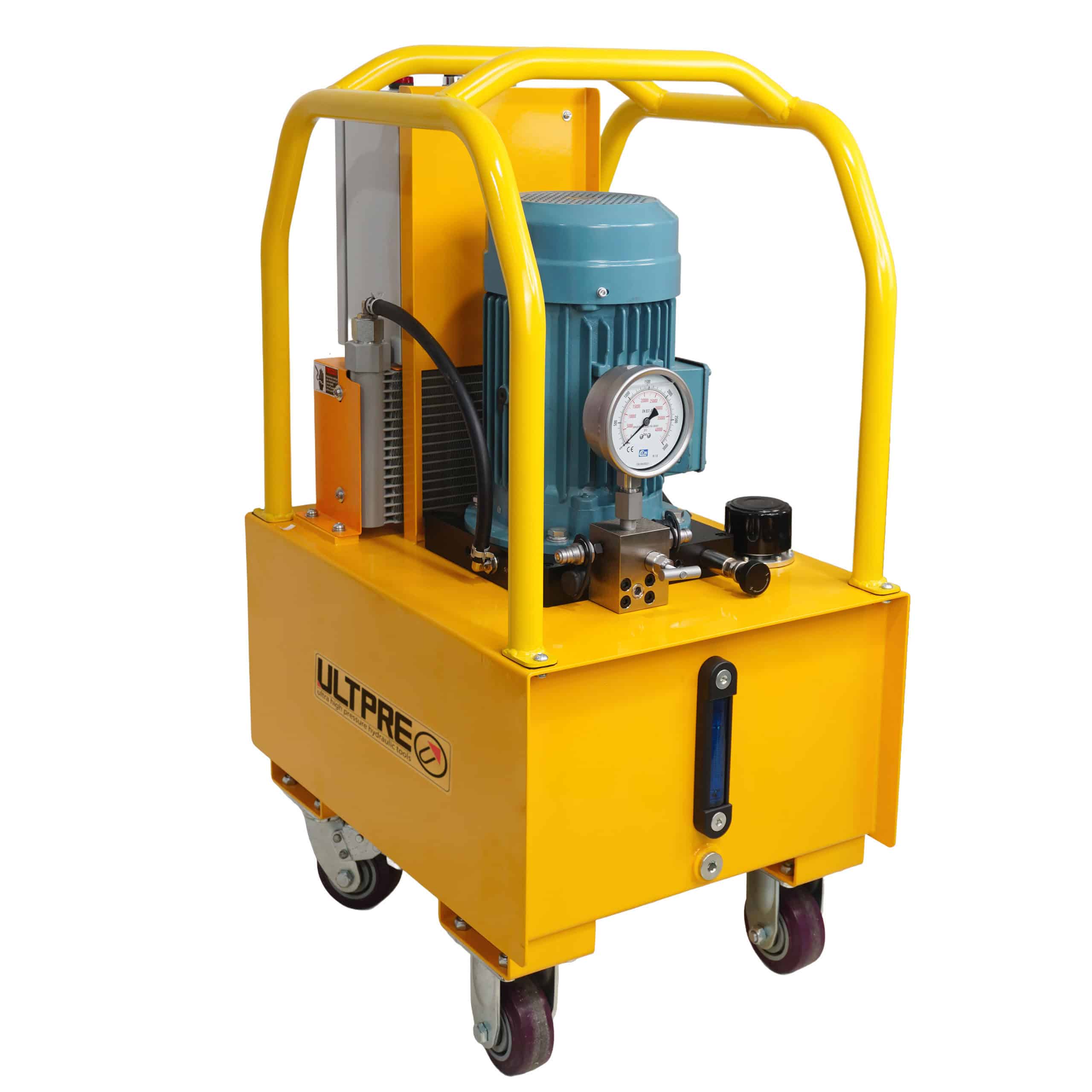

Product Illustration
- Protected Framework
- Cabinet
- Motor
- Cooling Fan
- Quick Connector
- Oil Release Port
- Oil Level Gauge
- Pressure Adjusting Valve
- Oil Filling Exhaust Port
- Pressure Gauge
