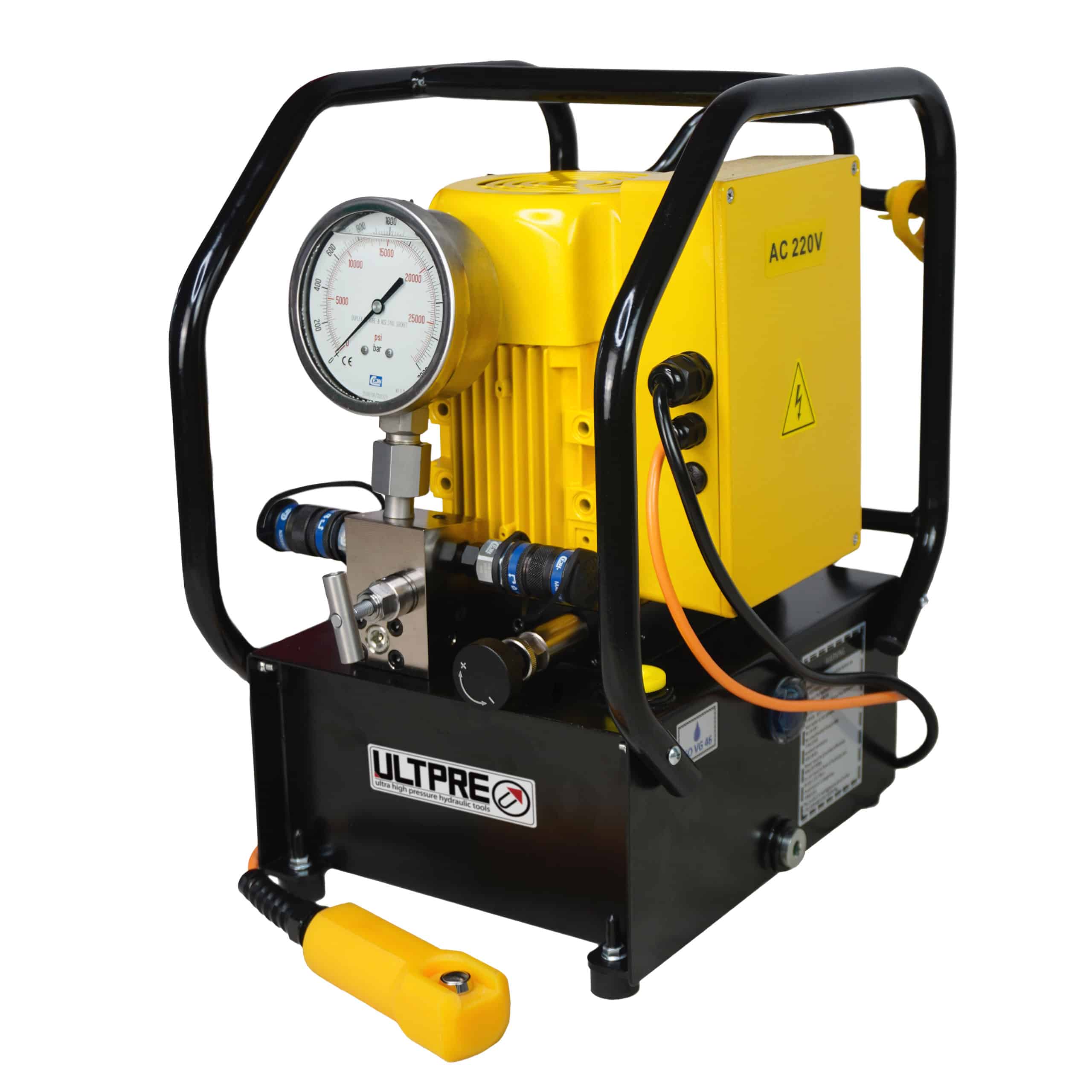

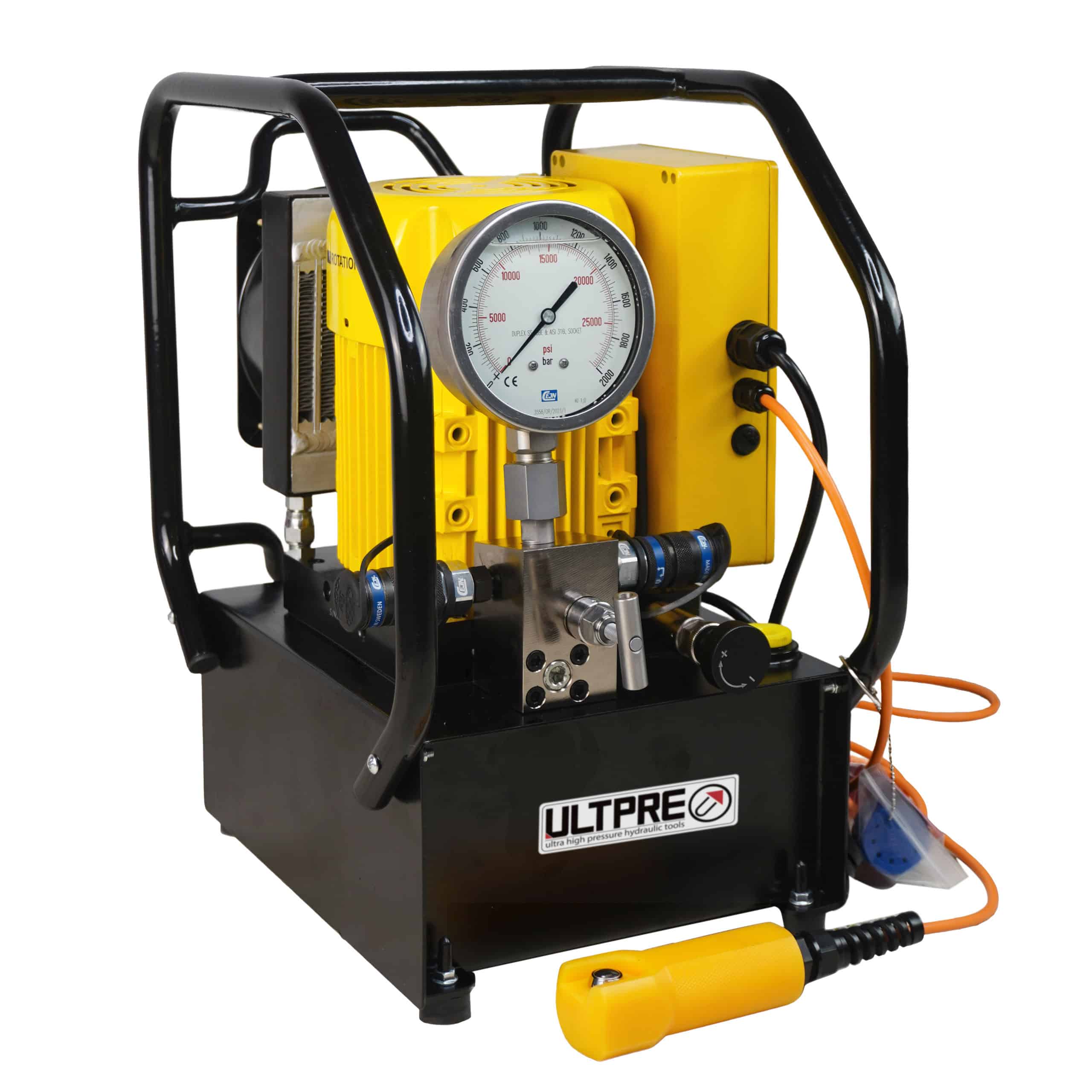

EP1500F5，150MPa Electric Ultra-High Pressure Hydraulic Tensioner Pump
The ULTPRE EP1500F5 is a premium electric hydraulic pump engineered for ultra-high pressure applications, including precision tensioning of critical industrial components. Designed for reliability and efficiency, it combines advanced technology with rugged construction to excel in demanding environments.
Description
Model: EP1500F5 | Series: EP | Product Line: Industrial Tools
Ideal for energy plants, shipyards, and heavy machinery maintenance, the EP1500F5 redefines ultra-high pressure performance with its blend of power, precision, and operator-focused design.
-
Maintenance-Free Brushless Motor: Delivers quiet operation (low noise) with zero brush wear for long-term reliability.
-
Dual-Pump Hybrid System: Gear pump and plunger pump work synergistically with a two-stage flow design for optimized efficiency.
-

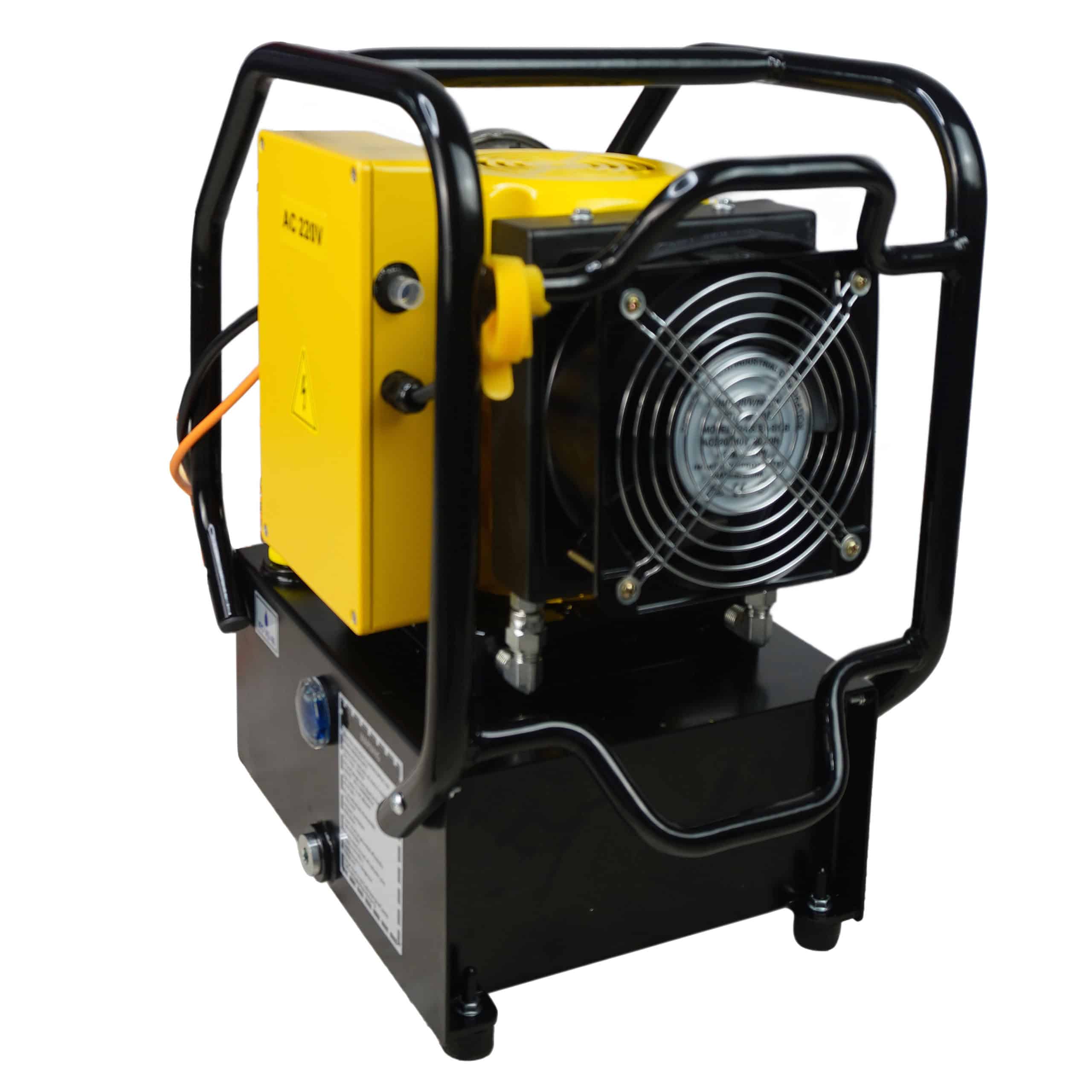

Intelligent Cooling: High-efficiency air-cooled radiator ensures minimal temperature rise during continuous operation.
-
Streamlined Design: Integrated protective frame with built-in hose reel for tidy cable management and enhanced portability.
-
Quick-Swap Pressure Gauge: Tool-free installation/removal simplifies maintenance and calibration.
-
Dual-Layer Safety: Built-in safety valve and external precision-adjust relief valve provide redundant pressure protection.
-
Versatile Connectivity: Standard dual-output ports support simultaneous tool operation or multi-circuit setups.
Specifications
| Maximum Operating Pressure (bar) | 1500 |
| Motor Power(KW) | 1.1 |
| Usable Oil (L) | 5 |
| First Stage Oil Flow Rate(L/min) | 2.5 |
| Second Stage Oil Flow Rate(L/min) | 0.3 |
| Oil Outlets | 2 |
| Weight Without Oil(Kg) | 27 |
Diagram

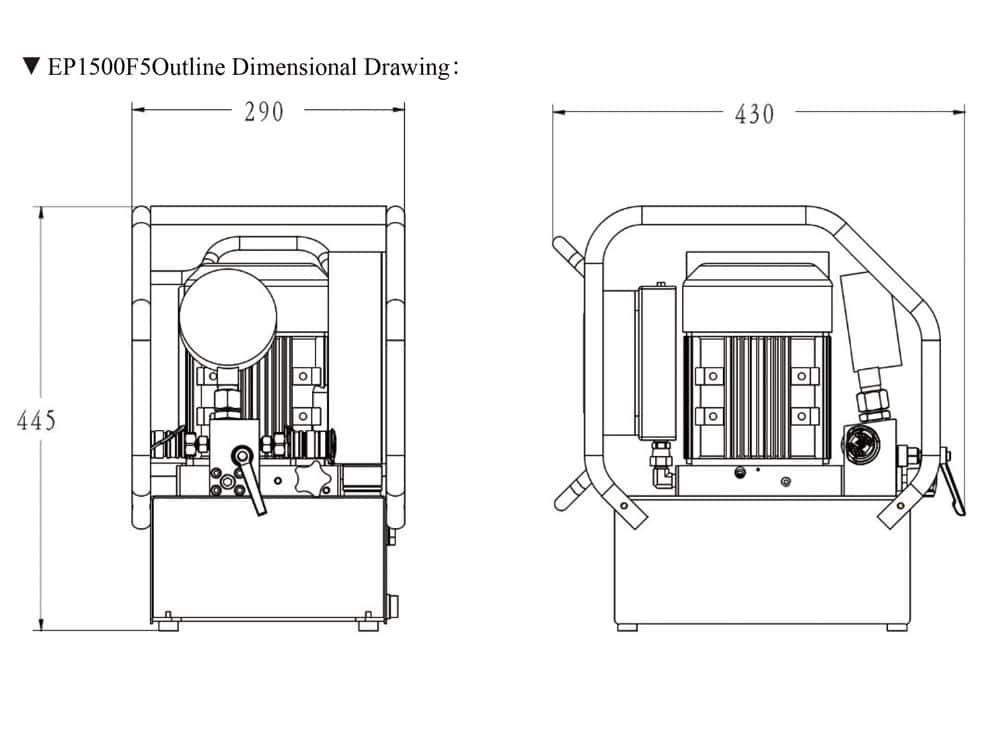

Dimensions

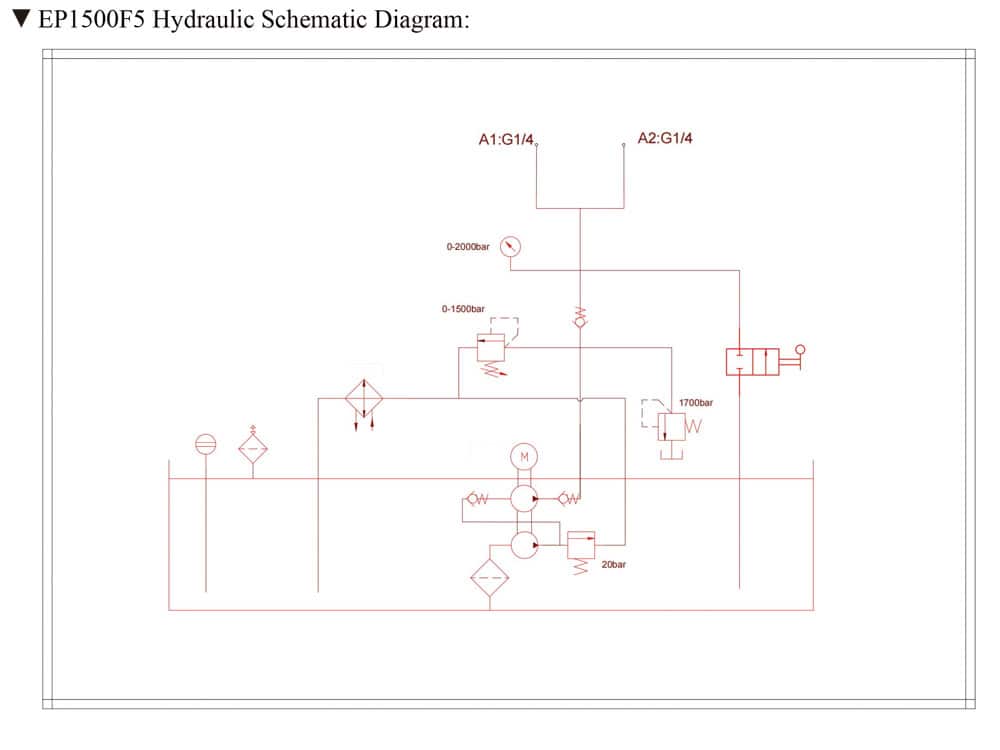

Hydraulic Diagram

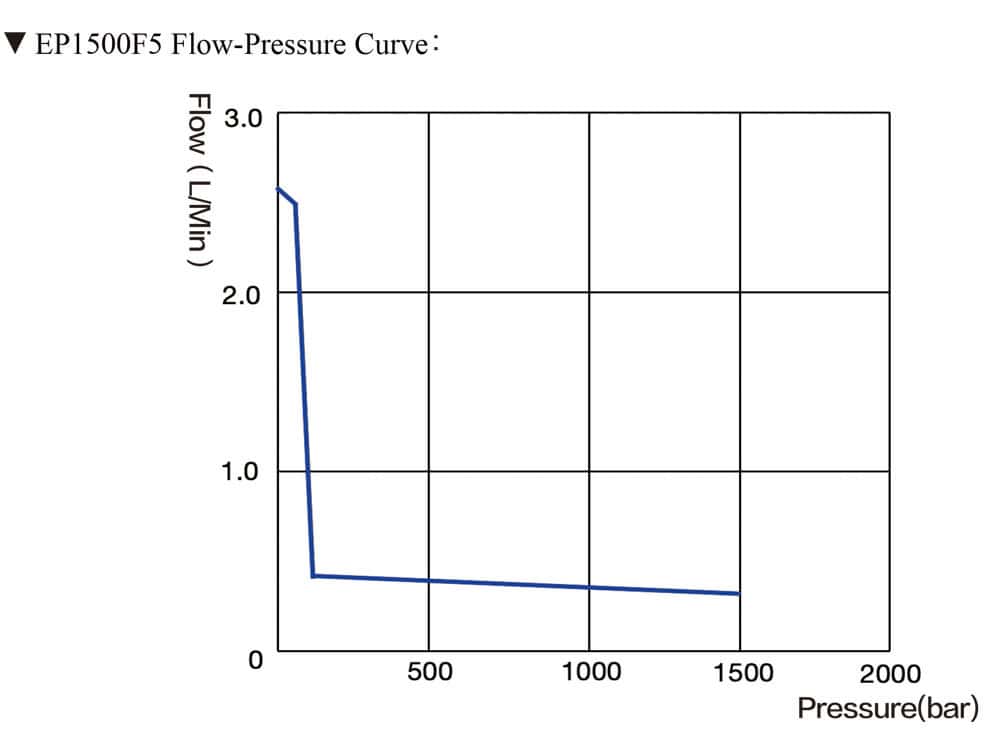

Pressure/Flow Rate Curve
Series Comparison
| Model Number | Max Working Pressure | Motor Power | Low Pressure Flow Rate | High Pressure Flow Rate | Usable Oil | Outlets Outles | Weight Without Oil |
|---|---|---|---|---|---|---|---|
| EP1500F5 | 1500 bar | 1.1KW | 2.5L/Min | 0.3L/Min | 5L | 2 | 27kg |
| EP1500F5-115/60 | 1500 bar | 1.1KW | 2.5L/Min | 0.3L/Min | 5L | 2 | 27kg |

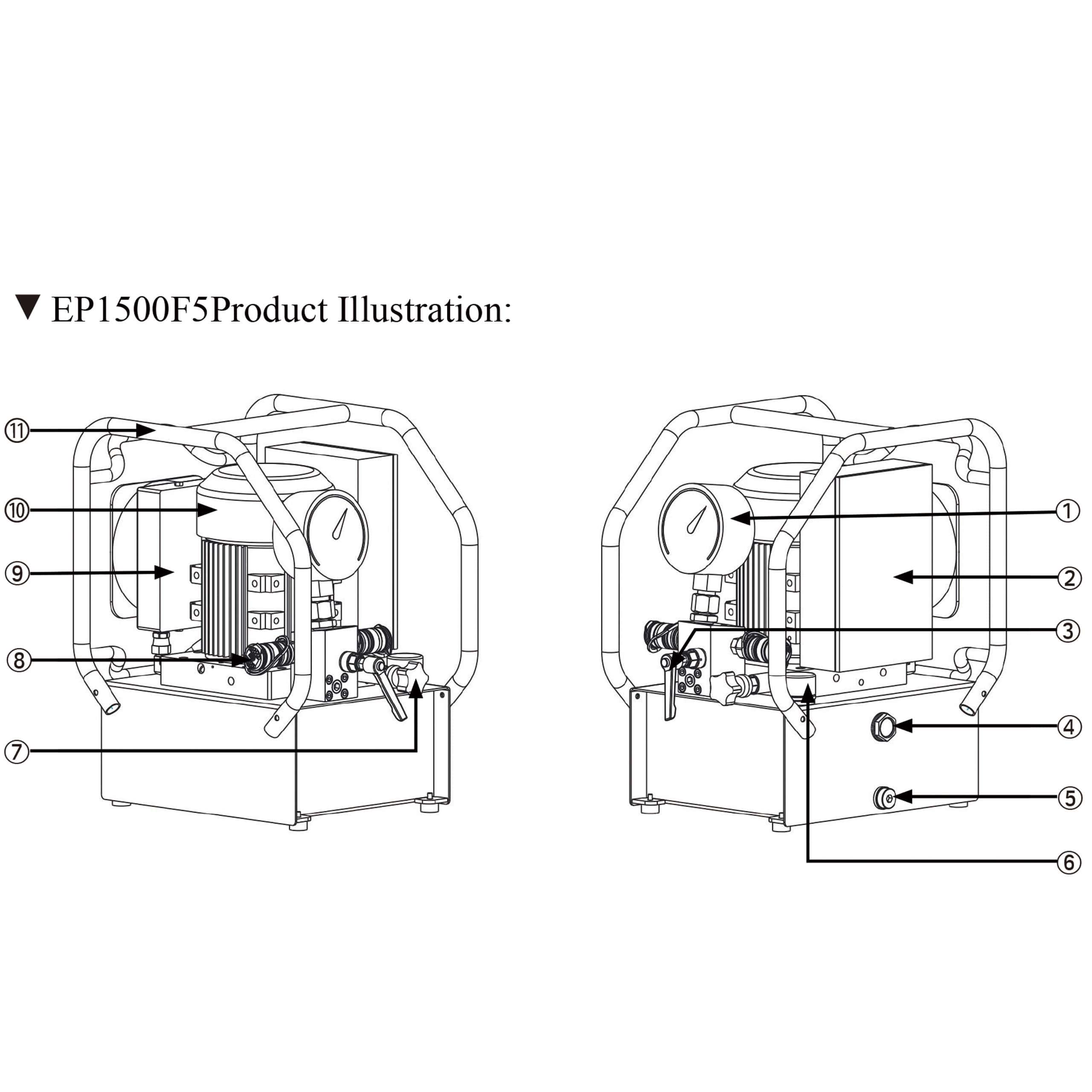

Product Illustration
- Pressure Gauge
- Cabinet
- Relief Valve
- Oil Level Gauge
- Oil Release Port
- Oil Filling Exhaust Port
- Pressure Adjusting Valve
- Quick Connector
- Air Cooling
- Motor
- Protection Frame
