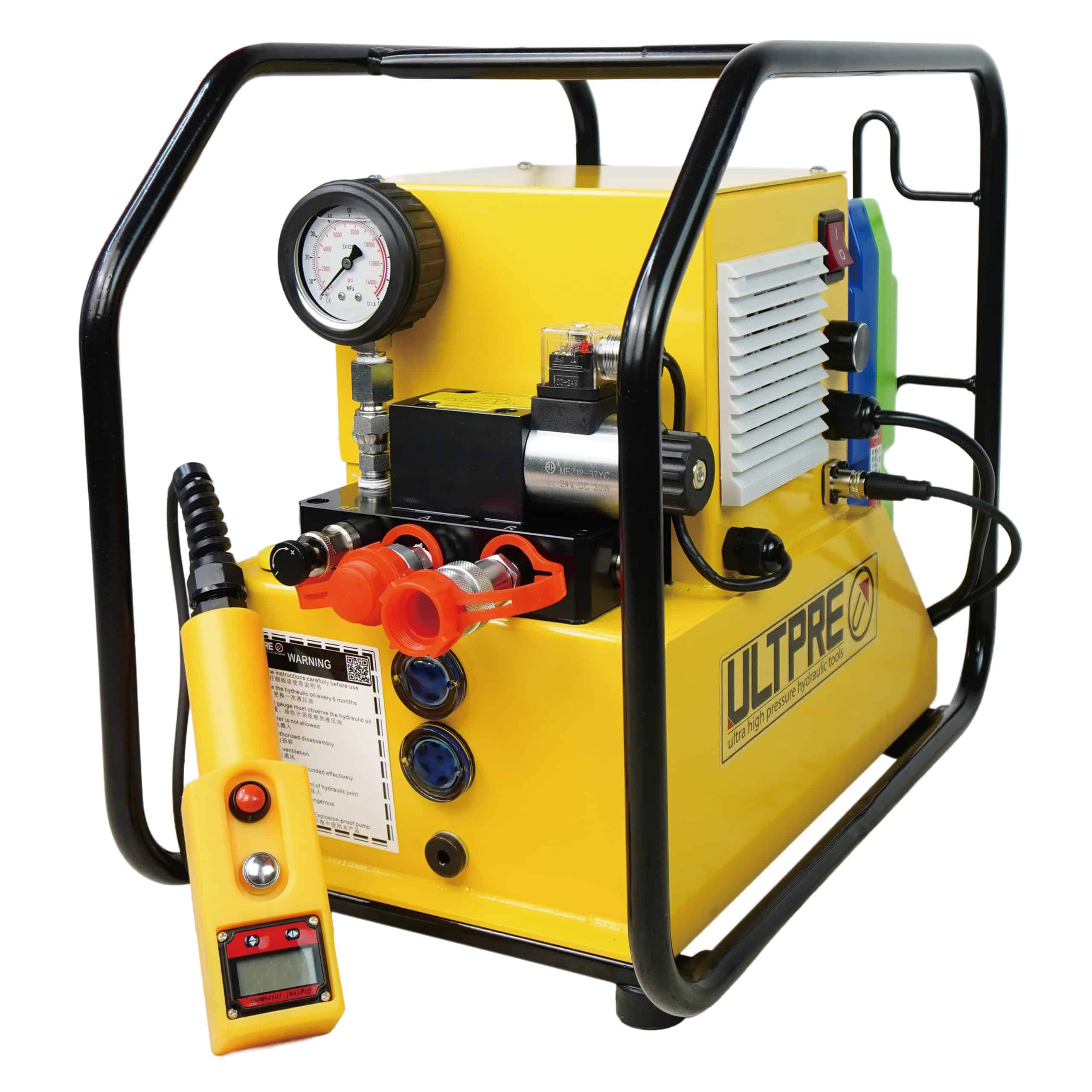

BTW700,0.75KW,5L Usable Oil,Digital Display Battery Three Stage Driven Hydraulic Torque Wrench Pump
The ULTPRE BTW700 redefines portable bolting precision with its cordless, high-efficiency design. Engineered for freedom from power outlets, this 3-stage pump combines intelligent digital control, extended runtime, and whisper-quiet operation for critical torque applications anywhere.
Description
Model: BTW700 | Series: BTW | Product Line: Industrial Tools
Ideal for wind turbine maintenance, remote pipeline projects, and confined-space bolting, the BTW700 empowers teams with cordless precision and industrial durability.
Key Features:
-
True Cordless Freedom: High-capacity 26AH lithium battery (with spare battery option) delivers exceptional runtime; includes fast charger for minimal downtime.
-
Smart Torque Control: 6M digital handle displays real-time pressure; precision relief valve locks target pressure for accuracy.
-
Whisper-Smart Operation: Servo motor maintains <75dB noise with 3-speed control (Low/Med/High) for adaptive performance.
-
Zero-Hassle Maintenance: Tool-free pressure gauge swap and and equipped with electromagnetic automatic exhaust valve
-
Worksite-Ready Build: Integrated frame with hose reel, quick-connect fittings, and robust IP54-rated housing for tough environments.
Specifications
| Maximum Operating Pressure (bar) | 700 |
| Motor Power(KW) | 0.75 |
| Usable Oil (L) | 5 |
| Battery | 48V 26AH |
| Charger | 6V 2A |
| First Stage Oil Flow Rate(L/min) | 4.8 |
| Second Stage Oil Flow Rate(L/min) | 0.45 |
Diagram
Pressure/Flow Rate Curve
Hydraulic Diagram

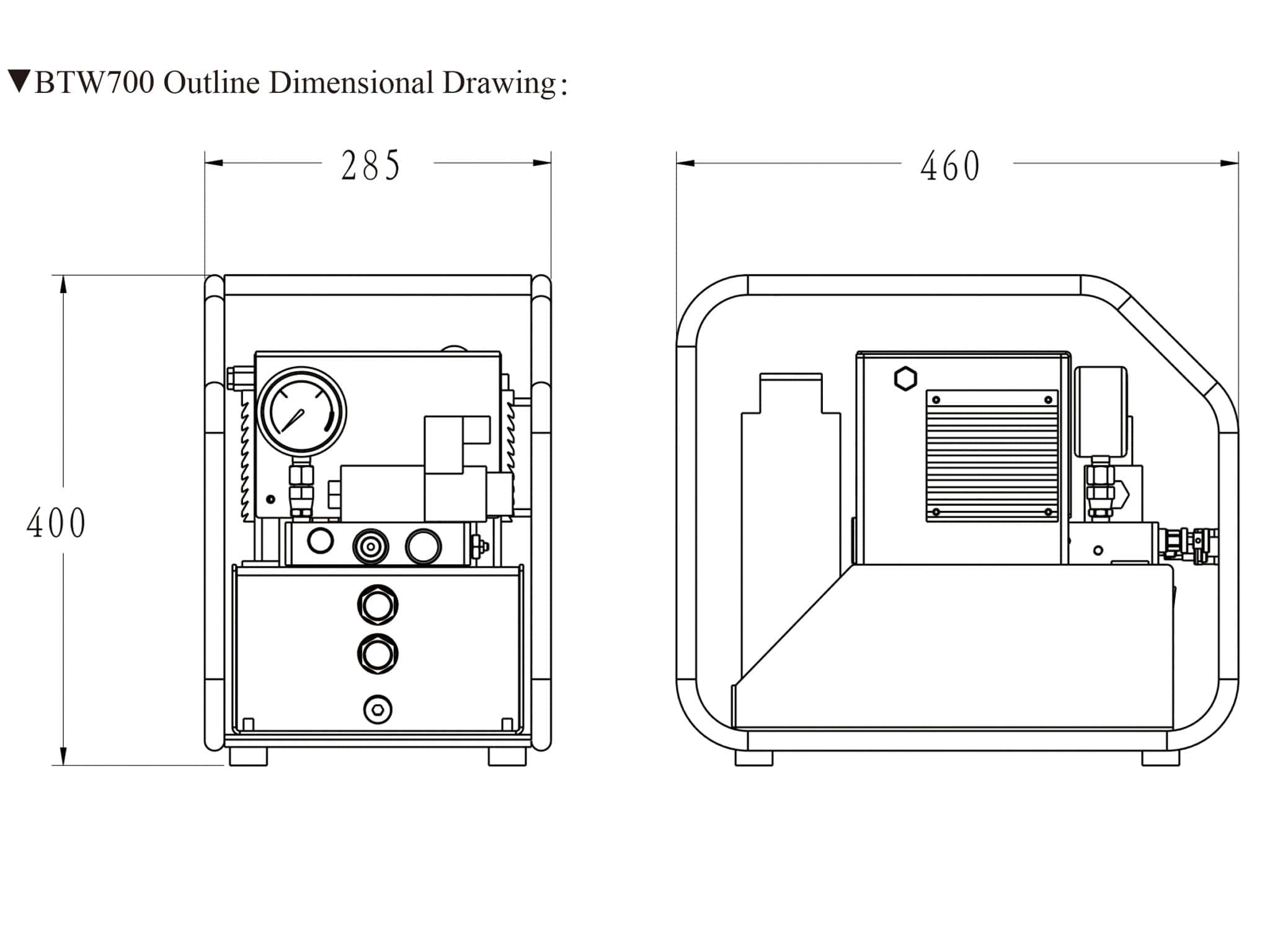

Dimensions
Product Illusions
- Protection Frame
- Battery
- Heat Dissipation Vents

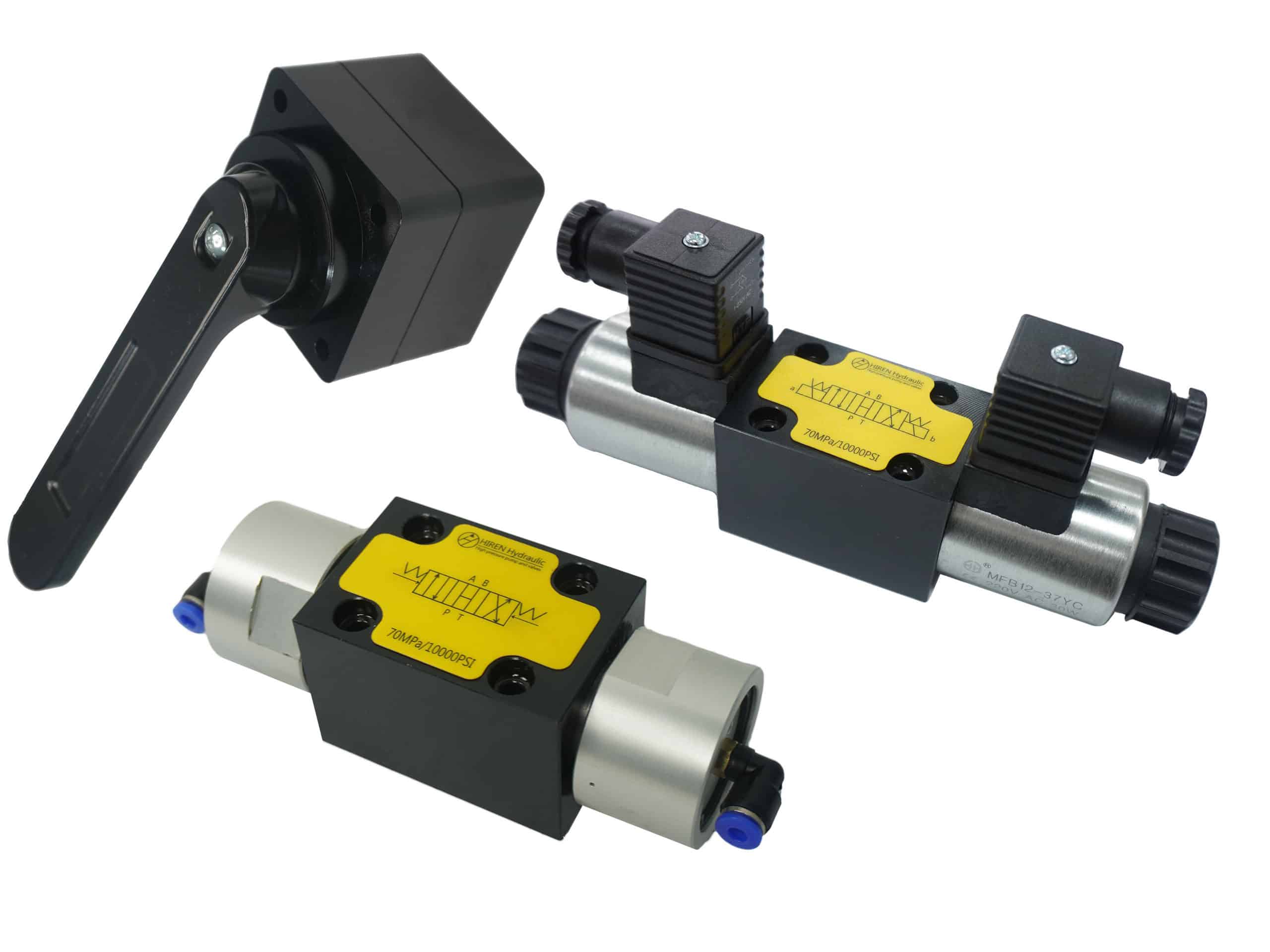

- Solenoid Directional Valve
- Pressure Limit Valve At R Port
- Oil Level Gauge
- Oil Filling Port
- Oil Release Port
- Quick Connector

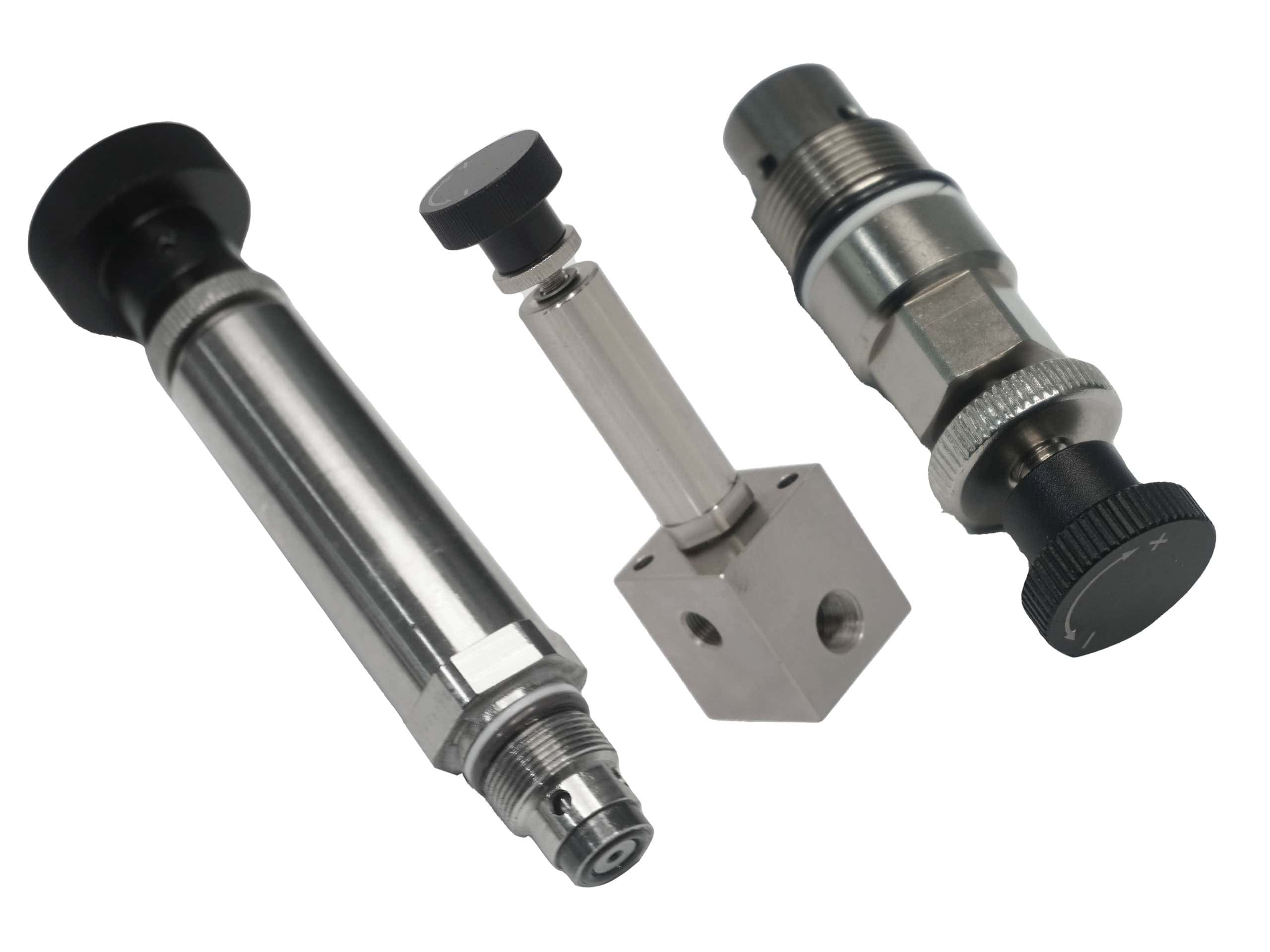

- Pressure Adjusting Valve
- Pressure Gauge
- Air Vent
