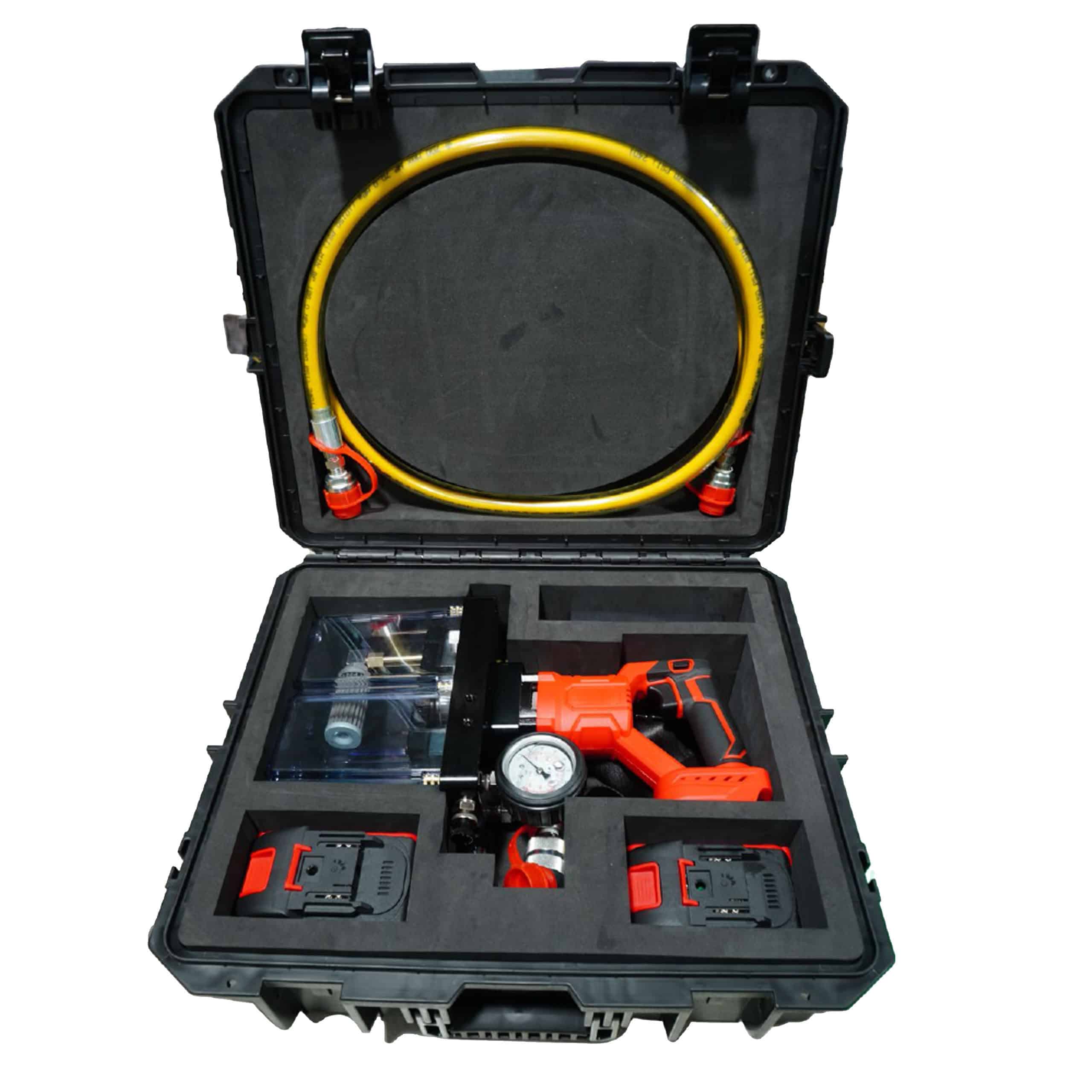

BPS700K,0.35KW,2L Usable Oil,Single Acting,Lithium Battery Hydraulic Pumps
The BPS700K from ULTPRE is a portable, high-efficiency hydraulic pump designed for cordless operation in remote or power-restricted environments. Combining robust performance with user-friendly portability, it redefines convenience for on-site hydraulic tasks.
Description
Model: BPS700K | Series: BPS | Product Line: Industrial Tools
Technical Specifications:
Engineered for mobility and reliability, the BPS700K is ideal for field maintenance, construction, and industrial applications where power access is limited.
-
Ultra-Safe Operation: Built-in safety valve, external pressure regulator, and a lockable start switch to prevent accidental activation. Manual bleed valve ensures leak-free, effortless pressure release.
-
Cordless Freedom: Powered by a high-capacity 12Ah lithium battery (2 included) for extended runtime, paired with a fast charger for quick recharging.
-
Maintenance-Free Durability: Brushless motor delivers quiet, reliable operation with zero upkeep. Two-stage flow system (gear pump + plunger pump) adapts to varying demands.
-
Portable Design: Lightweight, high-strength transparent PC oil tank for easy monitoring, integrated shoulder strap, and a rugged storage case for transport and protection.
BPS700K2 Package Includes:
Specifications
| Maximum Operating Pressure (bar) | 700 |
| Motor Power(KW) | 0.35 |
| Usable Oil (L) | 2 |
| Battery | 21V 12AH |
| Charger | 21V 4A |
| First Stage Oil Flow Rate(L/min) | 1.3 |
| Second Stage Oil Flow Rate(L/min) | 0.2 |
| Pump Weight Without Oil(Kg) | 7.5 |
| Tool Kit Weight Without Oil(Kg) | 14.5 |
Diagram

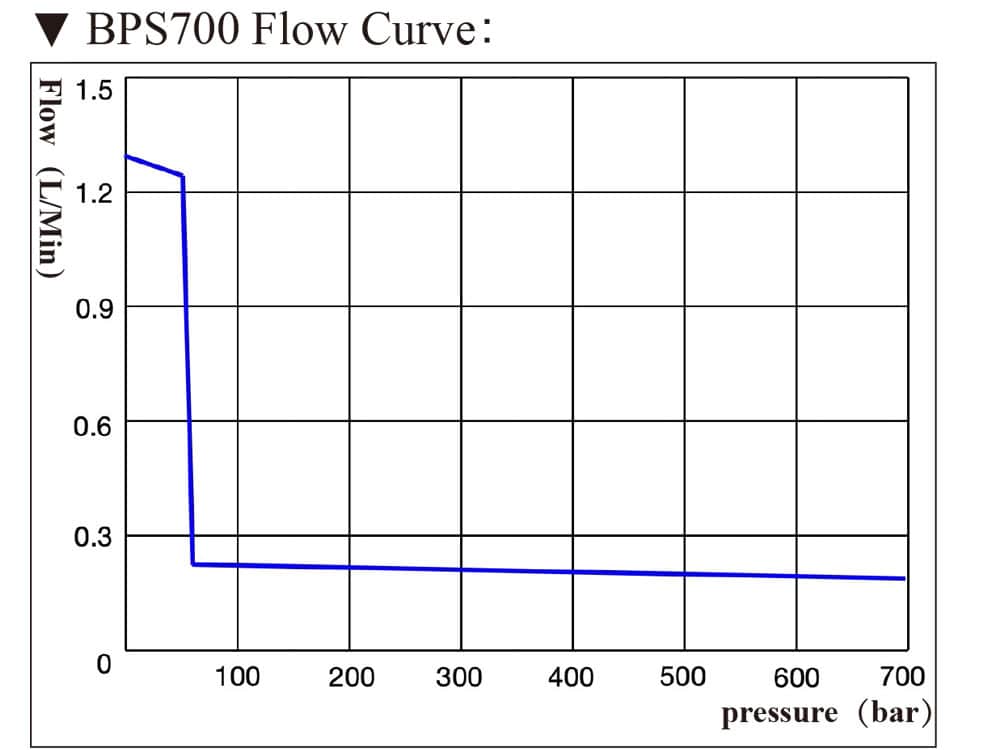

Pressure/Flow Rate Curve

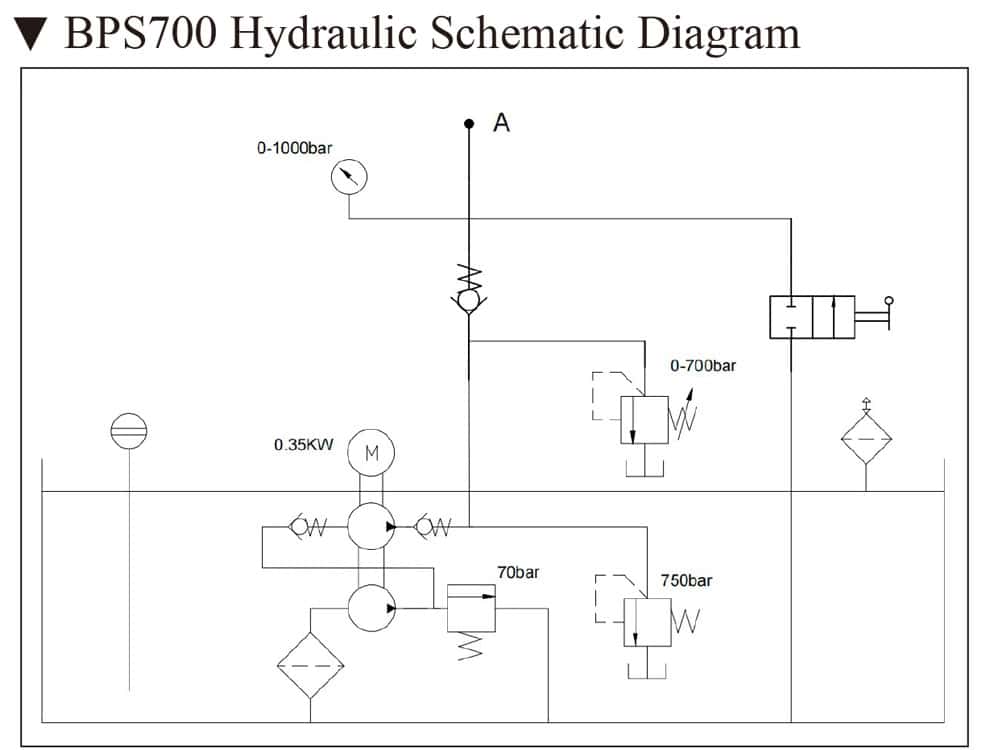

Hydraulic Diagram
Series Comparison
| Model | Max Working Pressure(Mpa) | Motor Power(KW) | Low Pressure Flow Rate(L/min) | High Pressure Flow Rate(L/min) | Battery | Usable Oil(L) | Tool Case Dimension(cm) | Weight Without Oil(Kg) |
|---|---|---|---|---|---|---|---|---|
| BPS700K1 | 70 | 0.35 | 1.3 | 0.2 | 21V 12AH | 2L | * | 7.5 |
| BPS700K2 | 70 | 0.35 | 1.3 | 0.2 | 21V 12AH | 2L | 52*43*20 | 14.5 |
