Overview

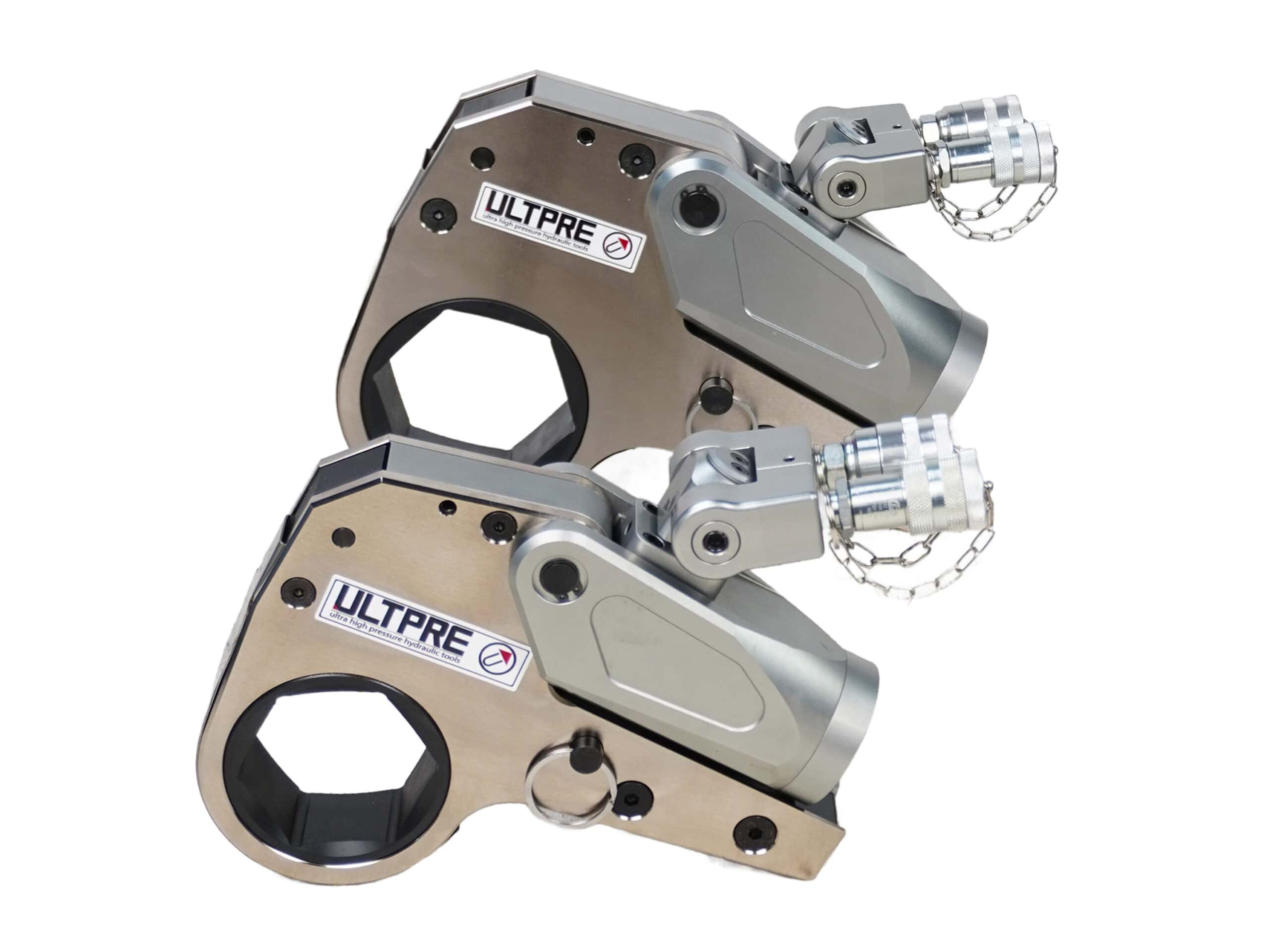

14HWH, 1852-18521Nm, Low Profile Hydraulic Torque Wrenches

Engineered for precision bolting in extreme confined spaces, the ULTPRE HWH Series redefines accessibility with its ultra-slim profile and aerospace-grade construction. Delivering ±3% torque accuracy where traditional wrenches fail, it excels in wind turbine nacelles, ship compartments, and structural steel applications.

PRICE ON REQUEST

Features

Description

Series: HWS | Product Line: Industrial Tools

Key Features:

Aerospace Monoblock Body: Forged from high-strength alloy for 200% longer fatigue life vs. modular designs.
360°×180° Dual-Axis Swivel: Maintains hydraulic hose flexibility when maneuvering around obstacles.
CAD-Optimized Precision: ±3% torque accuracy
Critical-Space Access: Slim-profile head fits low clearance zones.

Specifications

Torque Wrench Model Number	14HWH
Maximum Operating Pressure (bar)	700
Torque Range(Nm)	1852-18521
A/F Rnage(mm)	50-117
Drive Unit Weight(Kg)	11.4

Dimensions

Click to enlarge image

Series Comparison

Drive Unit Model Comparison

Torque Wrench Drive Unit Model	Torque Range(Nm)	A/F Rnage(mm)	Dimension(mm）L	Dimension(mm）H1	Dimension(mm）H2	Dimension(mm）W1	Dimension(mm）W2	Drive Unit Weight(Kg)
HWH-2	232-2328	19-55	196	126	102	32	51	1.5
HWH-2	241-2414	60	196	129	105	32	51	1.5
HWH-4	585-5858	34-65	258	163	136	42	66	3.4
HWH-4	647-6474	70-80	263	173	146	42	66	3.4
HWH-8	1094-10941	41-95	305	192	168	53	83	6.3
HWH-8	1177-11774	100-105	311	201	177	53	83	6.3
HWH-14	1852-18521	50-117	360	225	224	64	99	11.4
HWH-18	2695-26958	65-130	388	264	231	71	109	14.3
HWH-30	4231-42311	110-155	430	303	272	85	131	20.5
HWH-30	4459-44593	160-175	441	315	285	85	131	20.5
HWH-50	7081-70813	105-225	493	328	295	102	160	42

Series Comparison

Cassette Model Comparison

Cassette Model	R	A	Cassette Model	R	A	Cassette Model	R	A	Cassette Model	R	A	Cassette Model	R	A	Cassette Model	R	A
2HWH–19	27	16	4HWH–34	36	16	8HWH–41	46	22	14HWH–50	60	31	18HWH–65	66	28	30HWH–85	78	28
2HWH-22	27	14	4HWH–36	36	15	8HWH–46	46	19	14HWH–55	60	28	18HWH–70	66	26	30HWH–90	78	28
2HWH-27	27	11	4HWH–41	39	15	8HWH–50	46	17	14HWH–60	60	25	18HWH–75	69	26	30HWH–95	83	28
2HWH-30	29	12	4HWH–46	42	15	8HWH–55	50	18	14HWH–65	60	22	18HWH–80	69	23	30HWH–100	83	25
2HWH-32	29	11	4HWH–50	44	15	8HWH–60	52	17	14HWH–70	60	19	18HWH–85	74	25	30HWH–105	89	28
2HWH-34	31	11	4HWH–55	46	14	8HWH–65	55	17	14HWH–75	63	19	18HWH–90	74	22	30HWH–110	89	25
2HWH-36	31	10	4HWH–60	50	15	8HWH–70	58	17	14HWH–80	66	19	18HWH–95	78	23	30HWH–115	95	28
2HWH-41	34	10	4HWH–65	53	15	8HWH–75	60	17	14HWH–85	69	19	18HWH–100	78	20	30HWH–117	95	27
2HWH-46	37	10	4HWH–70	56	15	8HWH–80	63	16	14HWH–90	72	20	18HWH–105	83	22	30HWH–120	95	25
2HWH-50	40	11	4HWH–75	59	15	8HWH–85	66	16	14HWH–95	74	19	18HWH–110	83	20	30HWH–125	101	29
2HWH-55	43	11	4HWH–80	61	15	8HWH–90	69	17	14HWH–100	77	19	18HWH–115	89	23	30HWH–130	101	26
2HWH-60	46	11				8HWH–95	71	16	14HWH–105	80	19	18HWH–117	89	21	30HWH–135	104	26
						8HWH–100	75	17	14HWH–110	83	19	18HWH–120	95	26	30HWH–140	110	29
						8HWH–105	78	17	14HWH–115	87	20	18HWH–125	95	23	30HWH–145	110	26
									14HWH–117	87	19	18HWH–130	99	24	30HWH–150	116	29
												18HWH–135	99	21	30HWH–155	116	26
															30HWH–160	128	36
															30HWH–165	128	33
															30HWH–170	128	30
															30HWH–175	128	27
