1 Introduction to Gas Nitriding
Gas nitriding is a thermochemical surface treatment process that introduces nitrogen atoms into the surface of ferrous materials to enhance their surface properties. This process, developed in the early 20th century and widely adopted industrially since the 1920s, represents one of the most significant advancements in metallurgical engineering . Unlike many other heat treatment processes, gas nitriding operates at relatively low temperatures compared to traditional heat treatments, typically ranging between 480°C and 580°C (896-1076°F), which minimizes part distortion while significantly improving surface hardness and wear resistance .
The fundamental principle behind gas nitriding involves the diffusion of nitrogen atoms into the metal surface where they form nitride compounds with alloying elements such as aluminum, chromium, molybdenum, and vanadium. These nitrides create a dense, hardened case that substantially improves the component’s performance under demanding conditions . The process is particularly valued in applications where precision components must maintain dimensional stability while exhibiting superior wear characteristics, such as in aerospace, automotive, and tooling industries .
Historically, gas nitriding was initially limited to steel alloys containing chromium and aluminum, but with advancements in process control and understanding of metallurgical principles, its application has expanded to include a wide range of ferrous materials including low-carbon steels, alloy steels, stainless steels, and some tool steels . The continuous evolution of gas nitriding technology over the past century has established it as an indispensable surface engineering method for enhancing the performance and longevity of critical components across numerous industrial sectors.

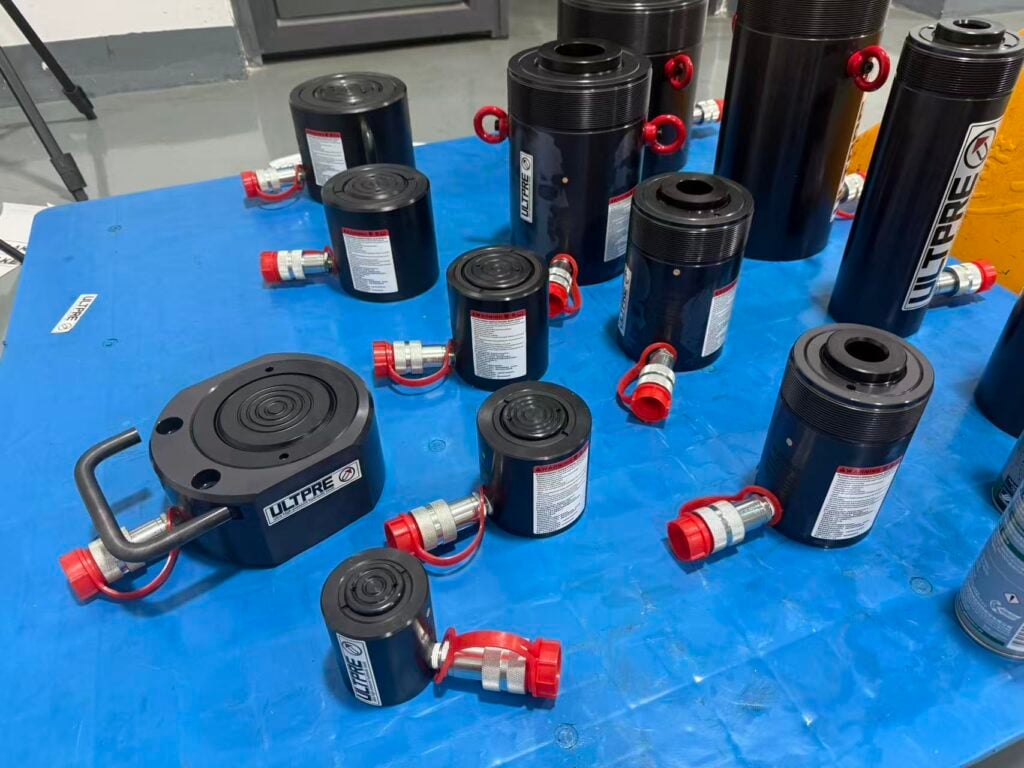

Above IMages Shows Hydraulic Cylinders With Gas Nitriding Surface
2 What is Gas Nitriding and How Does It Work?
Gas nitriding is a diffusion-based process that introduces nitrogen into the surface of ferrous materials through thermal activation in a nitrogen-rich atmosphere. The process occurs in a sealed container or retort where components are exposed to ammonia (NH₃) gas at carefully controlled temperatures typically between 480°C and 580°C (896-1076°F) . At these elevated temperatures, the ammonia molecules become unstable and dissociate into active nitrogen atoms and hydrogen gas according to the reaction: 2NH₃ → 2[N] + 3H₂ .
The newly liberated nitrogen atoms are adsorbed onto the surface of the metal workpiece and subsequently diffuse inward, creating a graded case structure that transitions from a nitrogen-rich layer at the surface to the core material properties. The diffusion process follows Fick’s laws of diffusion, with the rate of penetration being dependent on several factors including temperature, time, and the composition of the base material . The resulting microstructure typically consists of two distinct zones:
- White layer (compound layer): A thin surface layer consisting of iron nitrides (ε-Fe₂₋₃N and γ’-Fe₄N) that provides excellent wear and corrosion resistance
- Diffusion zone: A subsurface region where nitrogen has dissolved in the iron lattice and formed nitrides with alloying elements, contributing to enhanced fatigue strength
The kinetics of nitriding are influenced by multiple factors including the ammonia dissociation rate, which is typically maintained between 15-35% for standard nitriding processes . Modern gas nitriding systems employ sophisticated controls to maintain optimal process parameters, including temperature uniformity, gas flow rates, and atmosphere composition, ensuring consistent and reproducible results across production batches .
The thermodynamic aspects of the process involve the nitrogen potential of the atmosphere, which must be carefully controlled to achieve the desired surface phase formation without excessive brittle layer development. This control has been significantly enhanced through computerization, allowing for precise regulation of the nitriding environment and resulting material properties .
3 Advantages and Disadvantages of Gas Nitriding
3.1 Advantages of Gas Nitriding
Gas nitriding offers numerous technical benefits that make it a preferred surface treatment for many industrial applications. The process produces exceptional surface hardness values typically ranging from HV850 to HV1200 (approximately 70 HRC), which significantly enhances wear resistance and component service life. Unlike processes that involve quenching, gas nitriding operates at relatively low temperatures and causes minimal distortion and dimensional changes, making it ideal for precision components that require post-treatment stability .
The process also improves fatigue strength by introducing compressive residual stresses in the surface layer, which helps to inhibit crack initiation and propagation under cyclic loading conditions . Additionally, the nitrogen-rich surface layer provides enhanced corrosion resistance against various media including moist air, superheated steam, and combustion products, particularly when a continuous ε-carbonitride layer is formed .
Gas nitriding demonstrates excellent versatility across materials, with proven effectiveness on various steel grades, cast irons, and some specialty alloys . The process also offers significant economic advantages through relatively simple equipment requirements compared to alternative processes like plasma nitriding, and it enables high-volume batch processing, improving production efficiency .
3.2 Disadvantages and Limitations
Despite its numerous advantages, gas nitriding presents certain technical limitations that must be considered in process selection. The most significant constraint is the relatively shallow case depth (typically 0.1-0.6 mm) compared to carburizing, which limits its applicability for components experiencing extremely high Hertzian contact stresses . The process also requires extended processing times, often ranging from 20 to 100 hours depending on the desired case depth, which can impact production throughput and energy consumption .
Gas nitriding produces a brittle white layer if not properly controlled, which may spall under heavy loading conditions and necessitate post-treatment finishing operations . The process effectiveness is also highly dependent on material composition, with optimal results achieved only in steels containing specific nitride-forming elements such as chromium, molybdenum, aluminum, and vanadium .
Additionally, the process demonstrates sensitivity to surface conditions, where contaminants like oils, cutting fluids, or oxides can impede nitrogen absorption and result in inconsistent case depth . While ammonia is not classified as highly toxic, it presents safety considerations including respiratory irritation risks and explosion potential when mixed with air in certain concentrations, requiring appropriate ventilation and safety systems .
Table: Comparison of Different Nitriding Methods
| Parameter | Gas Nitriding | Plasma Nitriding | Salt Bath Nitriding |
|---|---|---|---|
| Case Depth Control | Good | Excellent | Fair |
| Processing Temperature | 480-580°C | 260-600°C | 550-570°C |
| Processing Time | 20-100 hours | 5-60 hours | ~4 hours |
| White Layer Formation | Difficult to control | Precisely controllable | Variable |
| Environmental Impact | Moderate ammonia usage | Low | High toxicity concerns |
| Equipment Cost | Moderate | High | Low |
| Surface Activation Required | Sometimes for high-Cr steels | No (sputtering cleans surface) | No |
3.3 Safety Considerations
Gas nitriding presents specific safety challenges that must be properly managed to ensure safe operation. Ammonia, while not highly toxic, can cause respiratory irritation and discomfort at concentrations above 25 ppm, requiring adequate ventilation systems and continuous atmosphere monitoring . The gas becomes flammable at concentrations of approximately 15-25% in air, creating explosion risks if atmosphere control is lost, particularly during heating and cooling cycles .
Modern gas nitriding equipment incorporates multiple safety interlocks including ammonia detection systems, emergency ventilation, and automatic shutdown procedures to mitigate these risks. Proper personal protective equipment (PPE) including respiratory protection and chemical-resistant gloves must be utilized when handling ammonia cylinders or performing system maintenance .
From an environmental perspective, while ammonia dissipates readily without lingering atmospheric effects, responsible handling practices include preventive maintenance programs to detect and repair leaks, appropriate gas storage protocols, and emergency response planning . When properly managed with these safety measures, gas nitriding represents a safe and controllable industrial process with an established record of reliable operation across global manufacturing facilities.
4 Suitable Materials for Gas Nitriding
Gas nitriding is most effective on ferrous materials containing specific nitride-forming elements that readily combine with nitrogen to create stable, hard compounds. The presence of these elements is critical for achieving the characteristic high surface hardness associated with nitrided components . The most influential alloying elements include:
- Chromium (Cr): The workhorse of nitriding steels, chromium forms hard CrN nitrides that significantly contribute to surface hardness and are particularly effective in improving corrosion resistance when present in sufficient quantities (>12%) .
- Aluminum (Al): Even in small amounts (0.85-1.5%), aluminum creates very hard AlN precipitates that dramatically increase surface hardness, making it a key element in many specialized nitriding steels .
- Molybdenum (Mo): While contributing to nitride formation, molybdenum primarily serves to eliminate the risk of embrittlement in the heat-affected zone and improves high-temperature stability .
- Vanadium (V) and Titanium (Ti): These strong nitride formers create stable, finely dispersed nitrides that enhance wear resistance and retard grain growth during the nitriding process .
The most commonly gas nitrided materials include low alloy steels such as the SAE 4100, 4300, 5100, 6100, 8600, 8700, 9300, and 9800 series, which respond well to nitriding due to their balanced composition of nitride-forming elements . Standard nitriding grades like 38CrMoAlA (Chinese standard) and BS 4S 106 and BS 3S 132 (British standards) are specifically designed for the process, typically achieving surface hardness values between HV850-1200 .
Stainless steels including martensitic (400 series), austenitic (300 series), and precipitation-hardening grades can also be successfully nitrided to significantly improve their surface hardness and wear characteristics, though this may come at the expense of some corrosion resistance in austenitic grades due to chromium nitride precipitation . Tool steels such as H13, P20, and other hot-work and cold-work grades are frequently nitrided to extend their service life in demanding forming and molding applications . Additionally, selected cast irons, particularly those with alloying additions, respond favorably to nitriding, improving the wear resistance of components like cylinder liners and machine ways .
Table: Typical Gas Nitriding Results for Various Material Categories
| Material Category | Example Grades | Typical Surface Hardness (HV) | Case Depth (mm) | Key Applications |
|---|---|---|---|---|
| Low Alloy Steels | 4140, 4340 | 500-800 | 0.1-0.5 | Gears, shafts, crankshafts |
| Nitriding Steels | 38CrMoAlA, BS 3S 132 | 850-1200 | 0.1-0.6 | Precision parts, injection screws |
| Stainless Steels | 410, 416, 304, 316 | 900-1100 | 0.05-0.3 | Food processing, chemical components |
| Tool Steels | H13, P20, D2 | 800-1100 | 0.05-0.3 | Molds, dies, cutting tools |
| Cast Irons | Gray iron, ductile iron | 500-800 | 0.1-0.4 | Cylinder liners, machine guides |
Special consideration must be given to the prior microstructure of components before nitriding. Optimal results are achieved when parts are in the hardened and tempered condition, with the nitriding temperature maintained below the previous tempering temperature to preserve core properties . This heat treatment history ensures the stability of the core microstructure during nitriding and prevents undesirable transformations that could affect dimensional stability or mechanical properties.
Materials with high nickel content require special attention as nickel tends to stabilize austenite and does not form nitrides, potentially leading to reduced case depth and hardness in these alloys . Similarly, high-carbon steels may require adjusted process parameters as excessive carbon content can influence the kinetics of nitride formation and affect the morphology of the resulting compound layer .
5 The Gas Nitriding Process: Detailed Explanation
5.1 Pre-treatment Procedures
Successful gas nitriding begins with meticulous surface preparation to ensure uniform and consistent results. Component surfaces must be thoroughly cleaned to remove any contaminants such as oils, cutting fluids, or oxides that could impede nitrogen absorption . This typically involves a multi-stage cleaning process including alkaline cleaning, solvent degreasing, and sometimes abrasive cleaning or pickling for heavily oxidized parts. Parts requiring localized nitriding must be properly masked using specially developed coatings or mechanical shields that prevent nitrogen access to designated areas .
The microstructural conditioning of the material prior to nitriding is equally critical. Most components undergo hardening and tempering treatments to establish the desired core properties before nitriding . The tempering temperature must exceed the intended nitriding temperature by at least 30-50°C to ensure microstructural stability during the process. This preconditioning establishes a sorbitic structure that provides optimal substrate characteristics for nitrogen diffusion and compound layer development .
5.2 Process Parameters and Control
The gas nitriding process involves carefully controlling several interconnected parameters to achieve the desired case characteristics. Temperature control represents the most critical factor, typically maintained between 480°C and 580°C for conventional nitriding . Higher temperatures accelerate diffusion but may compromise hardness due to nitride coarsening and potentially distort precision components .
The ammonia dissociation rate serves as the primary control parameter for nitrogen potential, generally maintained between 15-35% for standard nitriding processes . This rate influences the formation of specific iron nitrides: lower dissociation rates (15-25%) favor the formation of ε-nitride (Fe₂₋₃N), while higher rates (25-35%) promote γ’-nitride (Fe₄N) formation . Modern control systems continuously monitor and adjust the gas flow to maintain the desired dissociation percentage throughout the process cycle.
Process time varies significantly depending on the desired case depth, ranging from as little as 10 hours for shallow cases (0.1-0.2 mm) to 80-100 hours for deep cases (0.5-0.7 mm) . The relationship between time and case depth follows a parabolic relationship, with diffusion rate decreasing as case depth increases.
Two primary methodological approaches are employed:
- Single-stage nitriding: Conducted at constant temperature (480-520°C) with maintained dissociation rate (15-30%) for approximately 80 hours, producing a shallower case with minimal distortion
- Double-stage nitriding (Floe process): Initial high dissociation rate (30-35%) followed by lower rate (15-25%) to optimize compound layer formation and diffusion zone development, reducing total process time to approximately 50 hours
5.3 Post-treatment Considerations
Following the nitriding process, components are typically cooled slowly in the retort under continued ammonia flow to prevent surface oxidation that could discolour the surface or impair properties . The characteristic appearance of properly nitrided components is a uniform matte grey finish, though slight discoloration may occur without necessarily affecting performance .
Some applications may require post-nitriding operations to meet final specifications. Precision components may require finishing operations such as grinding or lapping to achieve tight dimensional tolerances, though only minimal material should be removed to preserve the hardened case . In some cases, a final surface treatment such as oxidation or plating may be applied to enhance corrosion resistance or appearance .
Quality verification typically includes destructive and non-destructive testing methods to confirm case depth, surface hardness, microstructure, and the absence of defects . Proper documentation of process parameters and quality control results ensures traceability and facilitates troubleshooting if issues emerge in service.
6 Depth of Gas Nitriding Penetration
The case depth achieved through gas nitriding is influenced by multiple factors including time, temperature, material composition, and process control. Typical gas nitriding case depths range from 0.1 mm to 0.6 mm, though specialized processes can extend beyond this range for certain applications . The relationship between these factors follows established diffusion principles described by Fick’s laws, with case depth increasing proportionally with the square root of time at a given temperature .
Temperature influence on case depth follows an Arrhenius-type relationship, with higher temperatures significantly accelerating diffusion rates. Research on 40Cr low alloy steel demonstrates that increasing temperature from 520°C to 560°C can increase case depth by approximately 40-60% for the same processing time . However, this comes with trade-offs including increased distortion risk and potential coarsening of nitride precipitates that may reduce peak hardness .
The material composition significantly influences achievable case depth, as alloying elements act as nitrogen sinks through nitride formation. Steels with strong nitride-forming elements (especially aluminum and titanium) tend to develop shallower but harder cases compared to steels with weaker nitride formers . Carbon content also influences results, with higher carbon levels potentially reducing case depth but increasing hardness through carbonitride formation .
Table: Typical Gas Nitriding Case Depths for Various Materials and Process Conditions
| Material Type | Temperature (°C) | Time (hours) | Case Depth (mm) | White Layer Thickness (μm) |
|---|---|---|---|---|
| Low Alloy Steel (4140) | 525 | 24 | 0.20-0.30 | 5-8 |
| Low Alloy Steel (4140) | 525 | 48 | 0.30-0.40 | 8-12 |
| Nitriding Steel (38CrMoAlA) | 530 | 24 | 0.15-0.25 | 4-7 |
| Nitriding Steel (38CrMoAlA) | 530 | 48 | 0.25-0.35 | 6-10 |
| Stainless Steel (410) | 550 | 24 | 0.10-0.20 | 2-5 |
| Tool Steel (H13) | 540 | 24 | 0.10-0.18 | 3-6 |
The white layer thickness varies significantly with process parameters, typically ranging from 5-20 micrometers . Research on 40Cr steel shows that white layer thickness increases with both processing temperature and time, reaching approximately 15 μm after treatment at 560°C for 6 hours . This layer consists primarily of ε-Fe₂₋₃N with some γ’-Fe₄N, with the exact ratio depending on nitrogen potential and process conditions .
Control of case depth is application-specific, with precision components typically requiring shallower cases (0.1-0.3 mm) to maintain dimensional stability while still achieving wear resistance . Heavy-duty components subject to higher loads may require deeper cases (0.4-0.6 mm) to support the hardened surface and prevent spalling under contact stresses . The aerospace industry in particular specifies precise case depth requirements for critical components, such as the 0.30-0.40 mm depth specified for 4Cr5MoSiV1 steel spline sleeves in aircraft engine fuel control systems .
7 Duration of Gas Nitriding Process
The time requirement for gas nitriding is considerably longer than many other heat treatment processes, typically ranging from 20 to 100 hours depending on the desired case depth and material characteristics . This extended duration is necessary because nitrogen diffusion in iron is relatively slow, with the process following parabolic kinetics where case depth increases with the square root of time .
For single-stage nitriding processes, treatment times often extend to 80 hours or more to achieve case depths of 0.4-0.6 mm on alloy steels . The double-stage process developed by Floe reduces total process time to approximately 50 hours for similar case depths through optimized nitrogen potential control . Research on 40Cr low alloy steel demonstrates that meaningful case depths (0.1-0.2 mm) can be achieved in 4-6 hours at temperatures of 540-560°C, though thicker cases require substantially longer times .
The relationship between time and case depth follows the equation: d = K√t, where d is case depth, t is time, and K is a temperature-dependent constant . This means that doubling the case depth requires quadrupling the process time, making deep cases economically challenging due to energy consumption and furnace throughput considerations.
Process efficiency can be improved through several approaches. Multi-stage processes with optimized temperature and nitrogen potential profiling can reduce total process time by 30-40% compared to single-stage approaches . Preliminary surface activation treatments can reduce the incubation period required for nitrogen absorption, particularly for chromium-containing steels that tend to form passive oxide layers . Additionally, controlled pre-oxidation treatments can enhance nitrogen absorption kinetics by creating surface conditions more favorable to ammonia dissociation and nitrogen transfer .
Despite these optimizations, the extended process time remains a significant limitation of gas nitriding compared to alternative processes like plasma nitriding or salt bath nitriding, which can achieve similar results in 5-15 hours . This economic disadvantage must be balanced against the process’s superior consistency, equipment cost advantages, and capability for large-volume batch processing .
8 Dimensional Changes in Gas Nitriding
Gas nitriding typically results in predictable dimensional changes that must be accounted for in component design and machining operations. The process generally causes a volumetric expansion of the treated surface, resulting in an increase in external dimensions and a potential decrease in internal dimensions for hollow components . The magnitude of this change depends on multiple factors including case depth, material composition, and component geometry.
Research indicates that the size change magnitude typically ranges from 0.5 to 3 micrometers per millimeter of case depth, representing approximately a 0.05-0.2% volumetric expansion depending on the specific material and process conditions . The relationship between case depth and dimensional change is approximately linear, with deeper cases producing greater dimensional changes . Studies have shown that for the same case depth, gas nitriding produces smaller dimensional changes compared to nitrocarburizing processes .
The mechanism of dimensional change involves two primary factors: the lattice parameter increase associated with nitrogen dissolution in iron, and the volumetric expansion resulting from nitride precipitation . The formation of iron nitrides (ε-Fe₂₋₃N and γ’-Fe₄N) in the compound layer produces approximately 30% volume expansion compared to untransformed iron, while the diffusion zone experiences more modest expansion due to nitrogen in solid solution and fine-scale nitride precipitation .
Material composition significantly influences dimensional response. Alloy steels generally experience greater dimensional changes than carbon steels due to the formation of additional alloy nitrides that produce more volumetric expansion . The specific alloy content also affects dimensional stability, with chromium-molybdenum steels demonstrating different expansion behavior compared to aluminum-containing nitriding steels .
Component geometry introduces complex effects on dimensional changes. Thin-walled sections may exhibit more pronounced dimensional changes due to reduced structural resistance to the expansion forces generated during nitriding . Asymmetrical parts may experience distortion rather than uniform expansion, particularly if they feature non-uniform cross-sections or asymmetric material removal during prior machining operations .
To manage these dimensional changes, several strategies can be employed: compensative machining before nitriding can anticipate expected growth by undersizing critical dimensions; stress relieving before final machining reduces residual stresses that could exacerbate distortion; and fixturing or clamping during nitriding can restrain parts to minimize distortion, though this must be carefully managed to avoid creating new stresses .
Despite these predictable changes, gas nitriding remains one of the least distorting thermochemical processes due to its relatively low processing temperature and absence of phase transformations in the core material . This characteristic makes it particularly valuable for precision components that must maintain tight dimensional tolerances after heat treatment .
9 Hardness Testing and Quality Control
Hardness verification of nitrided components requires specialized approaches due to the graded nature of the case and the potential presence of a brittle white layer. Standard Rockwell testing (HRC) may produce inaccurate results due to the thin case depth, making microhardness testing the preferred method for evaluating nitrided surfaces . The Vickers hardness test with loads between 0.3-1.0 kg force (HV0.3-HV1.0) is most commonly employed, though Knoop testing may be preferred for very thin cases due to its shallower indentation depth .
A significant challenge in nitrided hardness measurement arises from the white layer effect, where indentations may be confined entirely within the compound layer, providing measurements that reflect only this thin surface layer rather than the supporting diffusion zone . To address this limitation, one research group has proposed a method involving slight polishing and etching of the surface before testing to remove the white layer and obtain hardness values representative of the underlying diffusion zone .
Standardized quality control procedures for nitrided components typically include multiple measurements: surface hardness evaluation using microhardness techniques; case depth determination through metallographic examination or hardness traverses; white layer thickness measurement following appropriate etching; and microstructural evaluation to ensure absence of defects and appropriate nitride morphology .
Case depth determination employs two primary methodologies: the effective case depth measured as the depth where hardness reaches 50 HV above core hardness, and the total case depth determined metallographically by examining etched cross-sections . For critical applications, microhardness traverses from surface to core provide the most comprehensive assessment of case characteristics and gradient profile .
Additional quality assessments may include: adhesion testing of the compound layer through scratch or indentation tests; porosity evaluation in the white layer, which can influence wear and corrosion performance; and distortion measurement through before-and-after dimensional inspection of critical features . For components subject to fatigue loading, residual stress measurement using X-ray diffraction techniques may be specified to verify compressive stress development in the case region .
Documentation of quality control results typically includes detailed records of process parameters including temperature profiles, atmosphere composition, and ammonia dissociation rates throughout the cycle . This documentation provides traceability and facilitates troubleshooting if components fail to meet specifications or exhibit premature service failures.
10 Applications of Gas Nitriding
Gas nitriding finds application across numerous industrial sectors where components require enhanced surface properties while maintaining dimensional stability. The process is particularly valuable for parts subject to wear, fatigue, and corrosion that must operate reliably for extended service periods . Several key application areas demonstrate the versatility and effectiveness of gas nitriding:
The aerospace industry relies heavily on gas nitriding for critical components including landing gear parts, engine components, and transmission elements . These applications exploit the process’s ability to enhance fatigue strength and wear resistance without distorting precision components. Specific examples include 4Cr5MoSiV1 steel spline sleeves in aircraft engine fuel control systems, which require precisely controlled case depths of 0.30-0.40 mm to withstand demanding operating conditions .
Automotive applications represent another significant market for gas nitriding, particularly for performance and heavy-duty components. Crankshafts, camshafts, valves, and transmission gears frequently undergo gas nitriding to improve wear resistance and fatigue performance . The process’s minimal distortion helps maintain precise tolerances in engine components where clearances are critical to performance and efficiency .
The tool and die industry extensively utilizes gas nitriding to extend the service life of forming and molding tools. Hot-work tool steels such as H13 are commonly gas nitrided to improve resistance to soldering, erosion, and thermal fatigue in aluminum die-casting and extrusion applications . The process also finds application in plastic injection molds where improved wear resistance and anti-stick properties enhance productivity and part quality .
Precision machinery components represent another important application category. The process is particularly well-suited for long, slender components such as machine tool spindles, hydraulic cylinders, and precision shafts that would be prone to distortion with alternative heat treatments . The characteristic silver-gray finish of properly nitrided components also provides aesthetic advantages for consumer-facing applications .
Corrosion-resistant applications benefit from the anti-corrosive variant of gas nitriding, performed at higher temperatures (550-700°C) to develop a thick, continuous compound layer that provides protection against moist atmospheres, superheated steam, and combustion products . This treatment finds application in hydraulic components, fasteners, and fluid handling equipment operating in aggressive environments .
Emerging applications continue to expand the utilization of gas nitriding technology. The medical industry employs the process for surgical instruments and implantable devices requiring enhanced wear resistance and biocompatibility . The energy sector utilizes gas nitriding for components in drilling, extraction, and power generation equipment where reliability under extreme conditions is paramount .
These diverse applications demonstrate the continued relevance of gas nitriding as a valuable surface engineering technology more than a century after its initial development. Ongoing advancements in process control, monitoring, and automation ensure that gas nitriding will remain a critical manufacturing technology for precision components across industrial sectors.
11 Conclusion
Gas nitriding represents a mature but evolving thermal processing technology that continues to provide significant value across industrial sectors. Its unique combination of surface property enhancement and minimal distortion makes it indispensable for precision components requiring superior wear resistance, fatigue strength, and dimensional stability . Despite competition from newer technologies like plasma nitriding, the process maintains important advantages in equipment cost, batch processing capability, and process scalability .
The future of gas nitriding will likely involve increased process automation and control sophistication, with real-time monitoring and adjustment of nitrogen potential based on sensor feedback . Development of novel material systems optimized for gas nitriding may further enhance case properties and processing efficiency . Additionally, integration with secondary treatments such as oxidation or deposition processes may create synergistic surface properties unattainable with single processes .
As manufacturing continues toward increasingly precision-driven applications, gas nitriding’s ability to enhance surface properties without compromising dimensional accuracy will ensure its continued relevance. Through ongoing refinement and application-specific optimization, this century-old process will continue to provide engineered surfaces that meet the demanding requirements of modern industrial components.
